STZ52-20KH - Scag STZ 52" Zero-Turn Mower, 20hp Kohler SHEET METAL COMPONENTS Parts Diagram

STZ 52" Zero-Turn Mower, 20hp Kohler

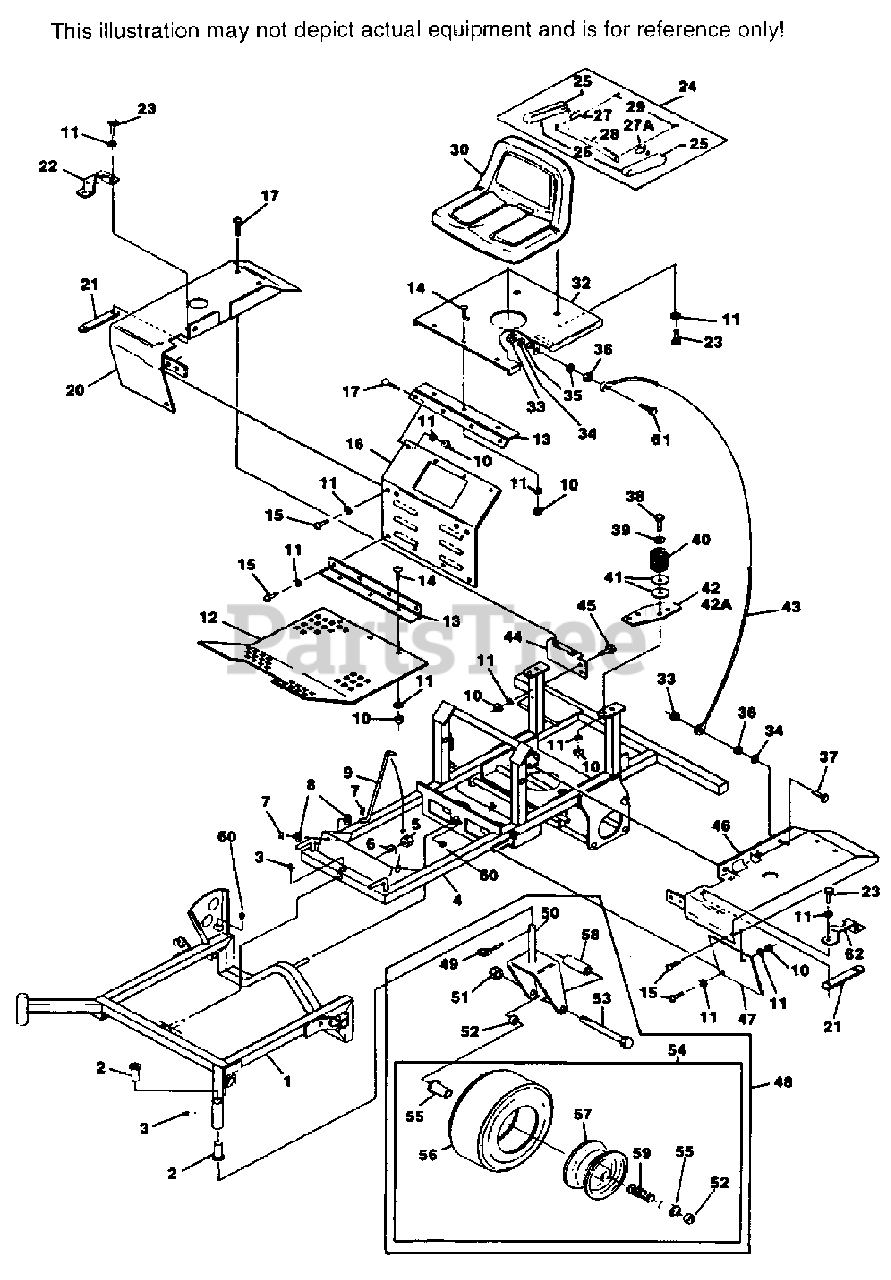

SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 46386

CUTTER DECK SUPPORT FRAME ASSEMBLY

$

$

Not available

2

Scag 48100-08

BUSHING

$5.49

$

Usually ships in 2-12 days

0

3

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

4

Scag 46391

MAIN FRAME(INCLUDES BUSHINGS & FITTINGS)

$

$

Not available

5

HEX NUT, 3/4-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

6

FLAT WASHER, 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 04062-02

HAIR PIN, 1/16" DIA

$0.99

$

In Stock, Qty 20+

0

8

FLAT WASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

Scag 44062

ROD, FOOT PLATE LATCH

$7.99

$

Usually ships in 2-12 days

0

10

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

LOCKWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 42764

FOOT PLATE

$

$

Not available

13

Scag 48547

HINGE
(Superseded to 481049)

$49.99

$

In Stock, only 1 left!

0

14

CARRIAGE BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

SCREW, 5/16-18 X 3/4 SOCKET BUTTONHEAD

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

Scag 42765

KICK PLATE

$

$

Not available

17

CARRIAGE BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

Scag 46433

FENDER - RH(METAL FUEL TANK)

$

$

Not available

20

Scag 46406

FENDER - RH(PLASTIC FUEL TANK)

$

$

Not available

21

Scag 42888

NEUTRAL LOCK BAR

$

$

Not available

22

Scag 42881

NEUTRAL LOCK BRACKET, RH

$

$

Not available

23

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

Scag 48014-02

ARM REST KIT(INC. 25,26,27,28,29)

$

$

Not available

25

SETSCREW, 3/8-16 X 3/4 FLAT POINT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

26

Scag 48014-03

ARM REST

$

$

Not available

27

Scag 48014-04

MOUNTING BRACKET - RH

$

$

Not available

27A

Scag 48014-05

MOUNTING BRACKET - LH

$

$

Not available

28

Scag 48014-07

BACK STRAP

$

$

Not available

29

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

Scag 48592

SEAT(INCLUDES 24 & 30A)
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

?30A

Scag 48592-01

SEAT ONLY
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

?31

Scag 42778

SEAT BRACE SUPPORT

$

$

Not available

32

Scag 45320

SEAT BASE

$

$

Not available

33

HEX NUT, 1/4-20 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

LOCKWASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

35

FLAT WASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

HEX HEAD BOLT, 1/4-20 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

38

HEX HEAD BOLT, 5/16-18 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

39

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

40

Scag 48538

SEAT SPRING
(Superseded to 48686)

$27.99

$

Usually ships in 2-12 days

0

41

Scag 04041-11

FLAT WASHER, 13/32 X 1-1/2 X 7 GA.

$1.99

$

In Stock, Qty 20+

0

42

Scag 42919

OIL COOLER MOUNTING BRACKET - LH

$

$

Not available

42A

Scag 42920

OIL COOLER MOUNTING BRACKET - RH

$

$

Not available

43

Scag 48566

CABLE, SEAT STOP

$17.99

$

In Stock, only 4 left!

0

44

Scag 42885

FENDER BRACKET - RH & LH

$

$

Not available

45

HEX HEAD BOLT, 5/16-18 X 2-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

46

Scag 45318

FENDER - LEFT
(Superseded to 46469)

$

$

Not available

47

Scag 42901

LH FENDER EXTENSION

$

$

Not available

48

Scag 46392

CASTER WHEEL ASSEMBLY, COMPLETE

$430.99

$

Usually ships in 2-12 days

0

49

Scag 04066-01

QUICK PIN

$8.99

$

In Stock, only 3 left!

0

50

Scag 45325

CASTER WHEEL YOKE

$232.99

$

Usually ships in 2-12 days

0

51

HEX NUT, 1/2-13 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

52

Scag 43041

SPACER

$5.49

$

Usually ships in 2-12 days

0

53

HEX HEAD BOLT, 1/2-13 X 6-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

54

Scag 48537

WHEEL ASSEMBLY, COMPLETE

$254.99

$

Usually ships in 2-12 days

0

55

Scag 48006-07

BUSHING
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

56

Scag 48537-02

TIRE ONLY
(Superseded to 481830)

$64.99

$

In Stock, only 1 left!

0

57

Scag 48537-03

RIM ONLY
(Superseded to 481829)

$120.99

$

Usually ships in 2-12 days

0

58

Scag 43022

SLEEVE

$6.99

$

In Stock, Qty 9

0

59

Scag 48006-06

ROLLER BEARING
(Superseded to 481769)

$28.99

$

In Stock, Qty 16

0

60

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 10

0

61

HEX HEAD BOLT, 1/4-20 X 1 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

62

Scag 42935

NEUTRAL LOCK BRACKET, LH

$

$

Not available
