SW-14KH - Scag Walk-Behind Mower, 14hp Kohler (SN: 40000 - 49999) CUTTER DECK 61" Parts Diagram

Walk-Behind Mower, 14hp Kohler

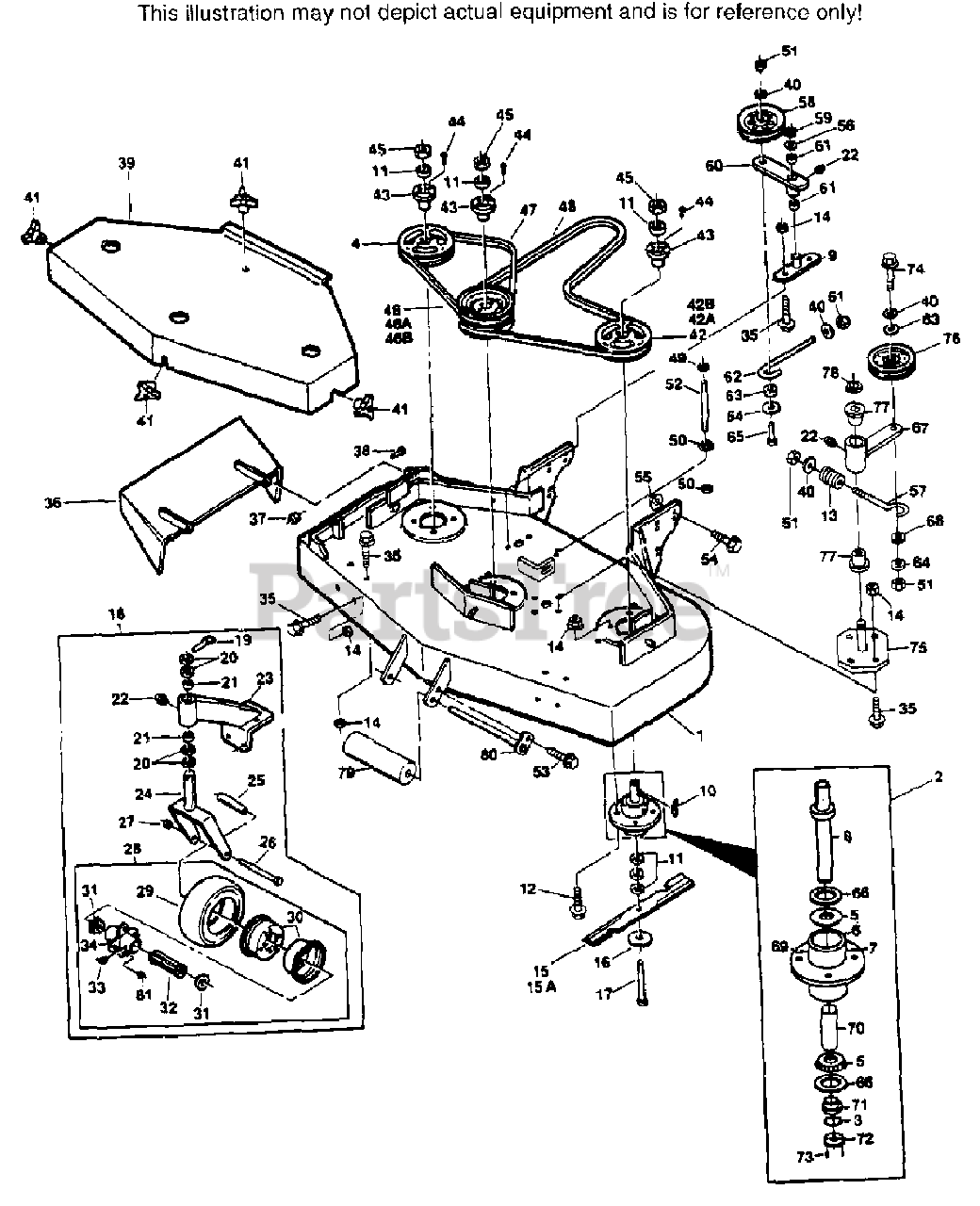

CUTTER DECK 61" Parts Diagram

  • Title

2

Scag 46400

SPINDLE ASSEMBLY

$

$

Not available

3

Scag 04050-04

RETAINING RING, 1" EXTERNAL INVERTED

$1.99

$

In Stock, Qty 7

0

4

Scag 48924

PULLEY
(Superseded to 482744)

$30.99

$

In Stock, Qty 8

0

5

Scag 48668

TAPERED BEARING

$24.99

$

In Stock, Qty 20+

0

6

Scag 41008

SPINDLE HOUSING
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

7

Scag 48114-02

GREASE FITTING STR. 5/16 SERRATED

$1.99

$

In Stock, only 3 left!

0

8

Scag 45391

SPINDLE SHAFT, TAPERED BEARING
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

9

Scag 45037

IDLER PIVOT

$31.99

$

Usually ships in 2-12 days

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43278

SPACER, CUTTER BLADE - SMALL
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

Scag 04017-18

CAPSCREW 5/16-18 X 1-1/4"

$1.49

$

Usually ships in 2-12 days

0

13

Scag 48807

SPRING, CUTTER DECK

$32.99

$

In Stock, only 1 left!

0

14

Scag 04019-03

SERRATED FLANGE NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

16

Scag 04040-10

FLATWASHER, 5/8" W

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2"

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSEMBLY,(INCL. 19-28)

$405.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.99

$

Usually ships in 2-12 days

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2" THICK

$2.49

$

In Stock, Qty 5

0

21

Scag 48100-01

BRONZE BEARING

$8.99

$

Usually ships in 2-12 days

0

22

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSEMBLY,(INCL. 21-23)

$152.99

$

Usually ships in 2-12 days

0

24

Scag 45006

CASTER YOKE

$67.99

$

In Stock, only 3 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 9

0

26

Scag 04001-37

HEX HD BOLT, 1/2-13 X 5-1/2"

$4.49

$

In Stock, Qty 9

0

27

Scag 04021-07

ELASTIC STOP NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

28

Scag 48307

WHEEL ASSY.(INCL. 29-34,81)

$155.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

NS

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$21.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

BEARING RETAINER, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$28.99

$

In Stock, Qty 16

0

33

Scag 48114-03

GREASE FITTING 45 DEG., 1/4-28

$5.49

$

In Stock, only 2 left!

0

34

Scag 48006-05

HUB ASSEMBLY,(INCL. BOLTS)
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

35

Scag 04017-16

CAPSCREW, 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 10

0

37

HEX NUT, 5/16-18 ELASTIC STOP

$

$

Not available

38

HEX HD. BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

40

Scag 04041-07

FLAT WASHER, 3/8" SPECIAL

$0.99

$

In Stock, Qty 20+

0

41

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

43

Scag 48141

TAPERED HUB

$30.99

$

In Stock, Qty 6

0

44

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

HEX NUT, 3/8-16, CENTERLOCK

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50

Scag 04019-04

NUT, 3/8-16, SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

51

Scag 04021-09

ELASTIC STOP NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

52

Scag 04004-02

SUPPORT, BELT COVER

$1.99

$

Usually ships in 2-12 days

0

53

Scag 04017-15

CAPSCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 9

0

54

Scag 04017-42

CAPSCREW, 7/16-14 X 1" SERRATED FLANGE HEX

$2.49

$

In Stock, Qty 10

0

55

Scag 04019-05

NUT, 7/16-14 SERRATED FLANGE

$0.99

$

In Stock, Qty 12

0

56

Scag 04041-08

FLAT WASHER 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

56A

Scag 04041-08S

FLAT WASHER 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

57

Scag 44101

J-HOOK

$34.99

$

Usually ships in 2-12 days

0

58

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 12

0

59

Scag 04050-02

RETAINING RING, 3/4" EXT. "E"

$0.99

$

In Stock, Qty 10

0

60

Scag 46081

IDLER ARM ASSY.(INCL. 22 & 61)

$47.99

$

Usually ships in 2-12 days

0

61

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, Qty 18

0

62

Scag 43028

J-ROD, IDLER PULLEY

$4.99

$

In Stock, only 2 left!

0

63

Scag 43077

SPACER, J-ROD

$4.99

$

In Stock, only 1 left!

0

64

Scag 04041-12

WASHER, 3/8 X 1-1/2 X 16 GA.

$0.99

$

In Stock, Qty 11

0

65

HEX HEAD BOLT, 3/8-16 X 2-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

66

Scag 48681

SEAL
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

67

Scag 46593

IDLER ARM ASSY(INCLUDES 22&77)
(Superseded to 46748)

$100.99

$

Usually ships in 2-12 days

0

68

Scag 43277

SPACER, J-ROD

$6.49

$

Usually ships in 2-12 days

0

69

Scag 48677

RELIEF FITTING, CUTTER SPINDLE

$9.49

$

In Stock, only 1 left!

0

70

Scag 43218

SLEEVE, CUTTER SPINDLE

$8.99

$

Usually ships in 2-12 days

0

71

Scag 43217

SPINDLE BUSHING

$15.99

$

Usually ships in 2-12 days

0

72

Scag 43201

SPACER, LARGE

$20.99

$

Usually ships in 2-12 days

0

73

ROLL PIN, 1/8" X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

74

HEX HD BOLT, 3/8-16 X 3-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLT GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

75

Scag 45329

IDLER PIVOT

$40.99

$

Usually ships in 2-12 days

0

76

Scag 48269

IDLER PULLEY, BELT CLUTCH
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

77

Scag 48100-02

BRONZE BEARING

$3.99

$

Usually ships in 2-12 days

0

78

Scag 04050-05

RETAINING RING

$0.99

$

In Stock, Qty 20+

0

79

Scag 48038

GUIDE ROLLER

$29.99

$

In Stock, Qty 6

0

80

Scag 45046

ROLLER SHAFT
(Superseded to 45944)

$22.99

$

In Stock, Qty 16

0
