SW 20 (5900757) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton 48" Mower Deck - Belts, Pulleys & Idler Arm Parts Diagram

SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton

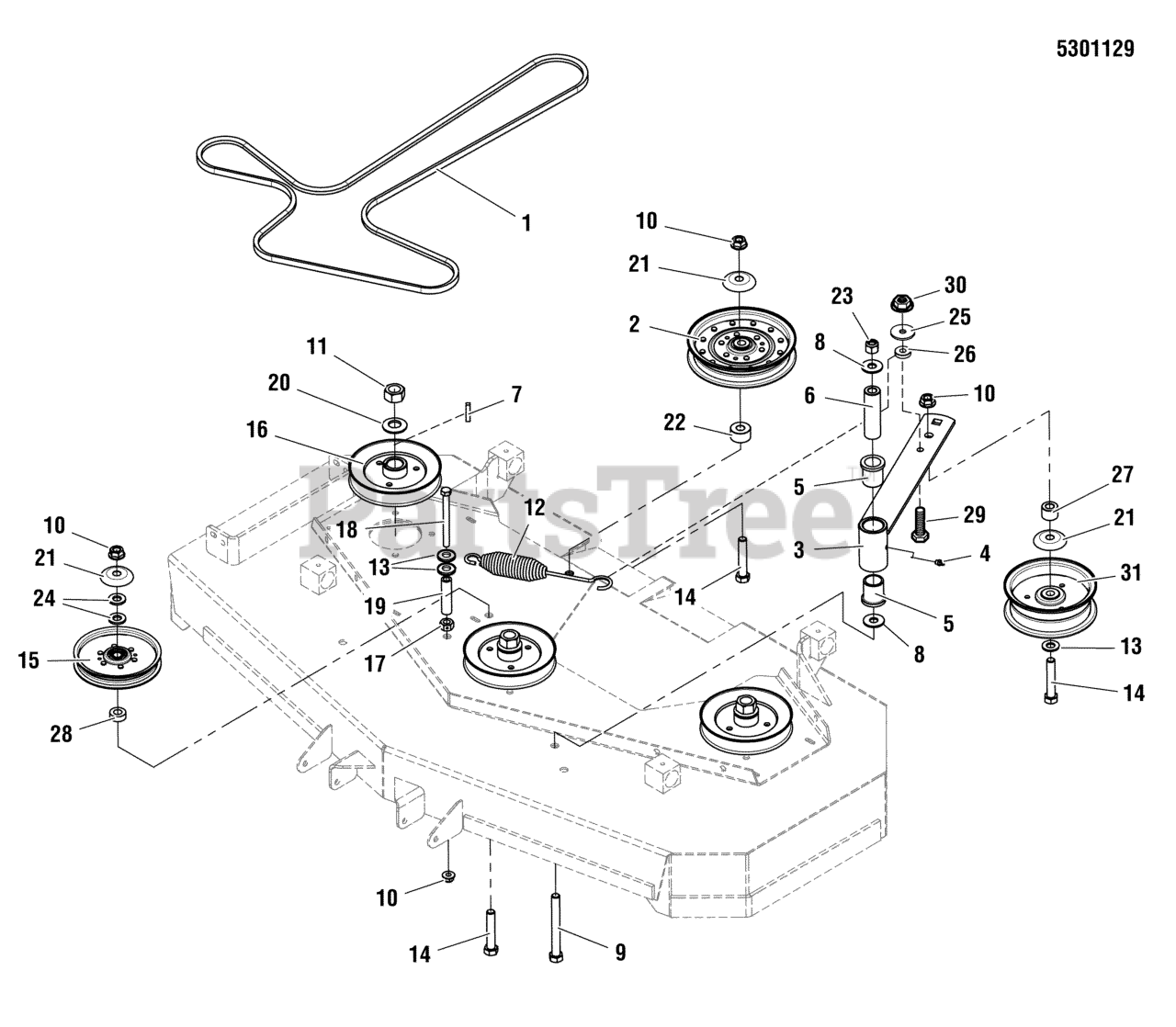

48" Mower Deck - Belts, Pulleys & Idler Arm Parts Diagram

  • Title

1

Snapper Pro 5021650

BELT,# 7-5335
(Superseded to 5021650FS)

$87.99

$

Usually ships in 2-12 days

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

3

Snapper Pro 5061305D

WELD, IDLER ARM - RED

$101.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

6

Snapper Pro 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

11

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5100632

SPRING, EXTENSION, SWIVEL
(Superseded to 5100632YP)

$38.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

14

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5023264

PULLEY, FLAT IDLER, 5.0 X .75

$49.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 1 left!

0

19

Snapper Pro 5050857X2P25

HOSE, 1/2" PUSH-ON 2.25"
(Superseded to 5050857X2P25FS)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5047142

SPACER, .52 X 1.25 X .70
(Superseded to 5047142SM)

$8.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

24

Snapper Pro 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 3 left!

0

25

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

26

Snapper Pro 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, only 4 left!

0

27

Snapper Pro 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.49

$

In Stock, only 2 left!

0

28

Snapper Pro 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

30

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

31

Snapper Pro 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BC
(Superseded to 5101312FS)

$71.99

$

Usually ships in 2-12 days

0
