SW 20 (5900757) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton Engine Deck Group (S/N: 2013700900 & Above) Parts Diagram

SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton

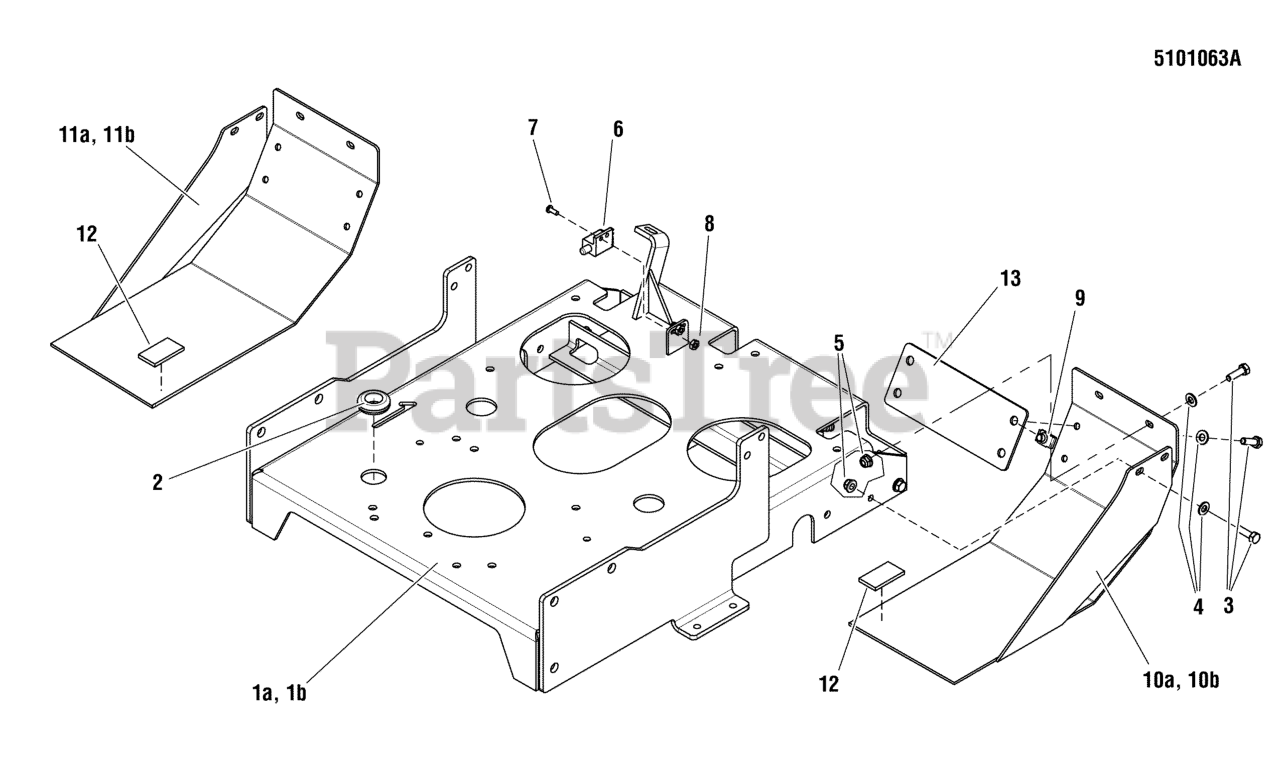

Engine Deck Group (S/N: 2013700900 & Above) Parts Diagram

  • Title

1a

Snapper Pro 5403082D

WELD, ENGINE DECK, SNP PRO WB - RED

Note: (FH381, FH541, & 305776 Engine)

$1600.99

$

Usually ships in 2-12 days

0

1b

Snapper Pro 5407050D

WELD, ENGINE DECK, SW20 - RED

Note: (FS481 & FS541 Engine)

$

$

Currently unavailable

2

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

8

Snapper Pro 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

10a

Snapper Pro 5406223D

WELD, SKID PLATE, LH - RED

Note: (Rear Discharge Models Only)

$

$

Currently unavailable

10b

Snapper Pro 5405324D

WELD, SKID PLATE, LH - RED
(Superseded to 5405324DFS)

$112.99

$

Usually ships in 2-12 days

0

11a

Snapper Pro 5406224D

WELD, SKID PLATE, RH - RED

Note: (Rear Discharge Models Only)

$

$

Currently unavailable

11b

Snapper Pro 5405325D

WELD, SKID PLATE, RH - RED
(Superseded to 5405325DFS)

$112.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101270

PAD, RUBBER MOUNT, 1/4 MAT
(Superseded to 5101270FS)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5405361D

PLATE, REAR GUARD - RED

$

$

Currently unavailable
