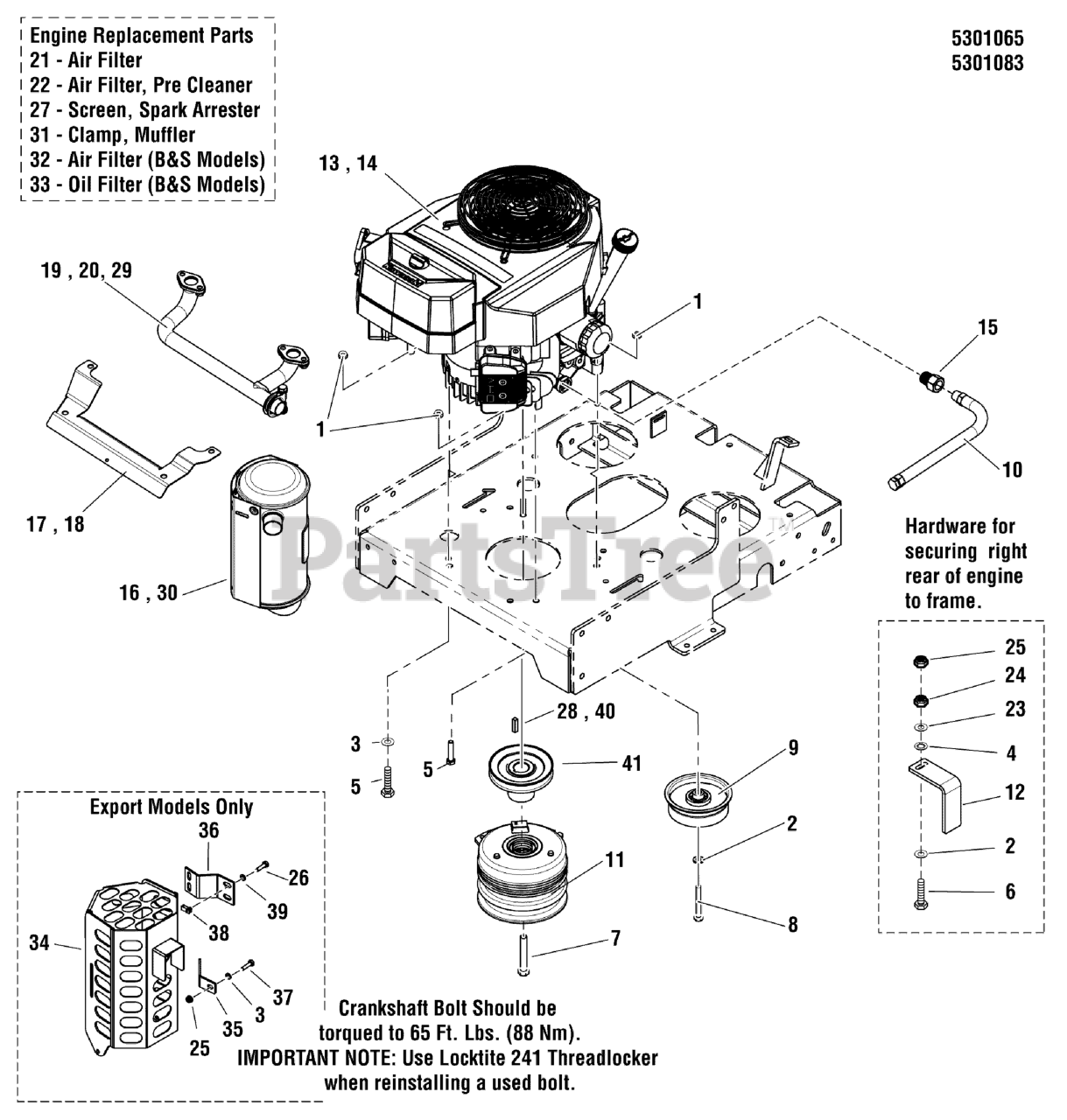

SW 20 (5900757) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton Engine & PTO Group - Kawasaki FH and B&S Engines Parts Diagram

SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton

Engine & PTO Group - Kawasaki FH and B&S Engines Parts Diagram

  • Title

1

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

3

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Snapper Pro 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025011X18X*

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$

$

Currently unavailable

7

Snapper Pro 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

In Stock, only 1 left!

0

9

Snapper Pro 5103808

PULLEY, IDLER, SINGLE FLANGE

$

$

Currently unavailable

10

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5102217

CLUTCH, WARNER, 125 ft lbs - 1"

$373.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

13

ENGINE, KAWASAKI, FH SERIES

$

$

Not available

14

ENGINE, BRIGGS, VANGUARD, 305776 SERIES

$

$

Not available

15

Snapper Pro 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

Note: (Kawasaki Models)

$15.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7075551X3

MUFFLER, KAWA

Note: (Kawasaki Models)

$

$

Currently unavailable

17

Snapper Pro 7075434X2

HEAT SHIELD, EXHAUST MANIFOLD (SV)

Note: (FH381V Series Kawasaki)

$34.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7075551X5

HEAT SHIELD, EXHAUST MANIFOLD (SV)

Note: (FH541V Series Kawasaki)

$34.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7075434X1

MANIFOLD. EXHAUST (SV)

Note: (FH381V Series Kawasaki)

$82.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7075551X4

MANIFOLD. EXHAUST (SV)

Note: (FH541V Series Kawasaki)

$262.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7075551X1

AIR FILTER (SV)

$31.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7075551X2

PRE AIR FILTER (SV)

$

$

Currently unavailable

23

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

In Stock, only 1 left!

0

25

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

Note: (EXPORT Models)

$3.99

$

In Stock, Qty 13

0

27

Snapper Pro 5101677

SCREEN, SPARK ARRESTER

$26.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025389

KEY, 1/4 SQ. X 3/4

Note: (Briggs & Stratton Models)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 805778X

MANIFOLD, EXHAUST

Note: (Briggs & Stratton Models)

$

$

Currently unavailable

30

Snapper Pro 807953X

MUFFLER, EXHAUST

Note: (Briggs & Stratton Models)

$

$

Currently unavailable

31

Snapper Pro 807595

MUFFLER CLAMP
(Superseded to 690898)

Note: (Briggs & Stratton Models)

$14.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 841359

AIR FILTER

Note: (Briggs & Stratton Models)

$33.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 842921

OIL FILTER

Note: (Briggs & Stratton Models)

$14.99

$

In Stock, Qty 20+

0

34

Snapper Pro 5406265D

WELD, MUFFLER GUARD

Note: (EXPORT Models)

$

$

Currently unavailable

35

Snapper Pro 5404434D

BRACKET, MUFFLER GUARD

Note: (EXPORT Models)

$

$

Currently unavailable

36

Snapper Pro 5406582D

BRACKET, MUFFLER GUARD

Note: (EXPORT Models)

$

$

Currently unavailable

37

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: (EXPORT Models)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

Note: (EXPORT Models)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

Note: (Kawasaki Models)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5101311

PULLEY, CRANKSHAFT, 1.0005 ID X 4.25 OD

$36.99

$

Usually ships in 2-12 days

0
