SW 20 (5900757) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton

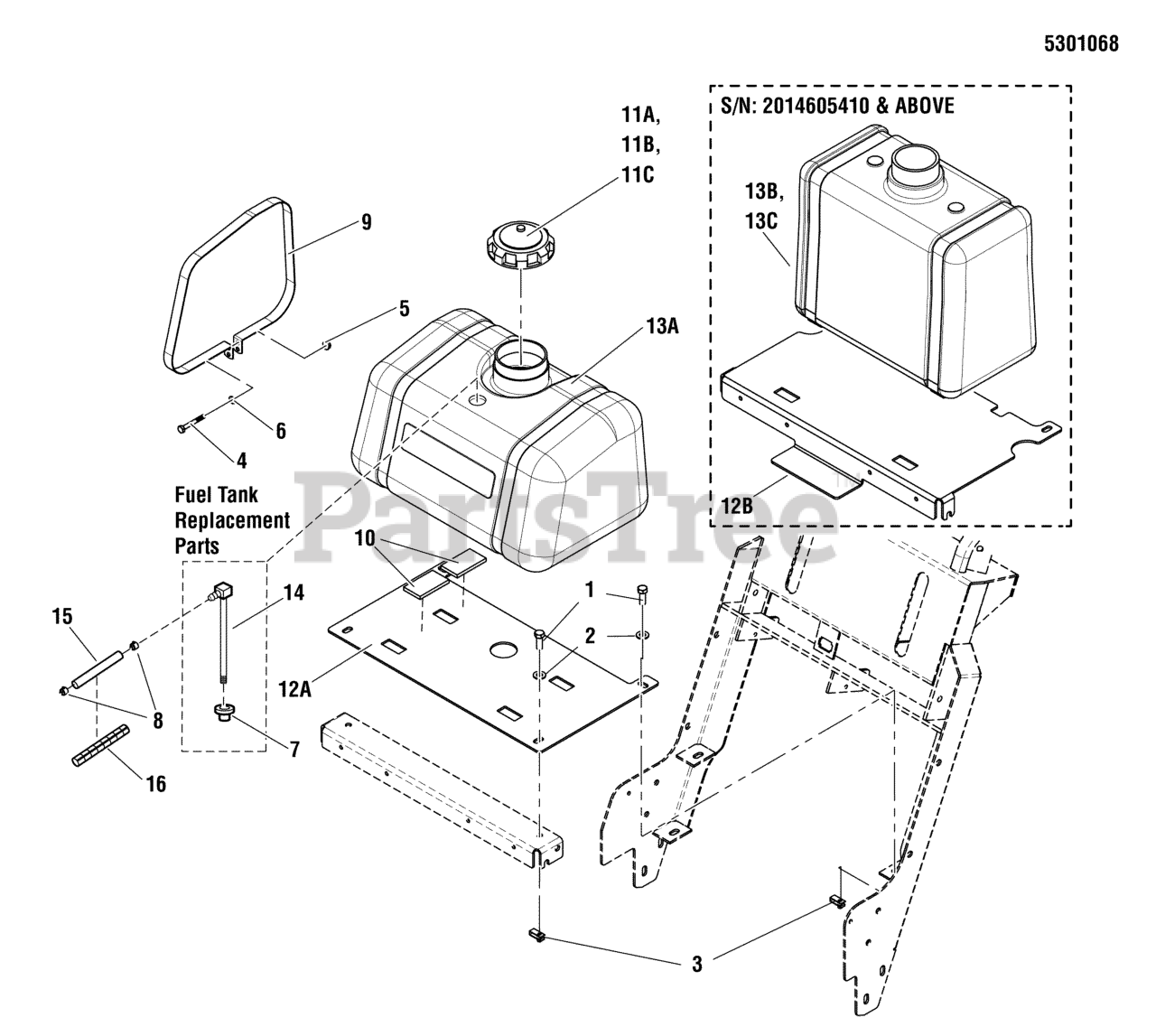

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

2

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022649

BODY CLIP, 3/8-16 X .688" DEEP
(Superseded to 5022649FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4", GD5
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

Note: (S/N: 2014605409 & Below)

$11.99

$

In Stock, Qty 5

0

8

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 10

0

9

Snapper Pro 5403445A

STRAP, FUEL TANK
(Superseded to 5403445AYP)

$22.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101270

PAD, RUBBER MOUNT, 1/4 MAT
(Superseded to 5101270FS)

$7.49

$

Usually ships in 2-12 days

0

11a

Snapper Pro 5022158

CAP, FUEL TANK, 3-1/2 NECK

Note: (S/N: 2014605409 & Below)

$33.99

$

Usually ships in 2-12 days

0

11b

Snapper Pro 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014605410 - 2014744379)

$30.99

$

In Stock, Qty 6

0

11c

Snapper Pro 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014744380 & Above)

$40.99

$

In Stock, only 2 left!

0

12a

Snapper Pro 5406661D

PLATE, FUEL TANK MOUNT - RED

Note: (S/N: 2014605410 & Above)

$79.99

$

Usually ships in 2-12 days

0

12b

Snapper Pro 5403229D

PLATE, FUEL TANK MOUNT - RED

Note: (S/N: 2014605409 & Below)

$65.99

$

Usually ships in 2-12 days

0

13a

Snapper Pro 5102833

TANK, FUEL
(Superseded to 5102833YP)

Note: (S/N: 2014744380 & Above)

$397.99

$

Usually ships in 2-12 days

0

13b

Snapper Pro 5102063

TANK, FUEL, PLASTIC, TOP DRAW, NO LOGO

Note: (S/N: 2014605410 - 2014744379)

$142.99

$

Usually ships in 2-12 days

0

13c

Snapper Pro 5101231

TANK, FUEL

Note: (S/N: 2014605409 & Below)

$139.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101261

PICKUP TUBE ASM, FUEL TANK, 8.0" (SV)

Note: (S/N: 2014605409 & Below)

$35.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5050831X13

HOSE, 1/4" FUEL, 13.00"
(Superseded to 5050831X13FS)

$8.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5050833X17

WIRE LOOM, 1/2" ID, 17" LONG

$5.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

Note: (Not Shown)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5102833X1

GROMMET

Note: (Grommet for fuel tank 5102833)

$10.99

$

Usually ships in 2-12 days
