SW 20 (5900757) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton Motion Control Group - Lower (S/N: 2013231802 & Above) Parts Diagram

SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton

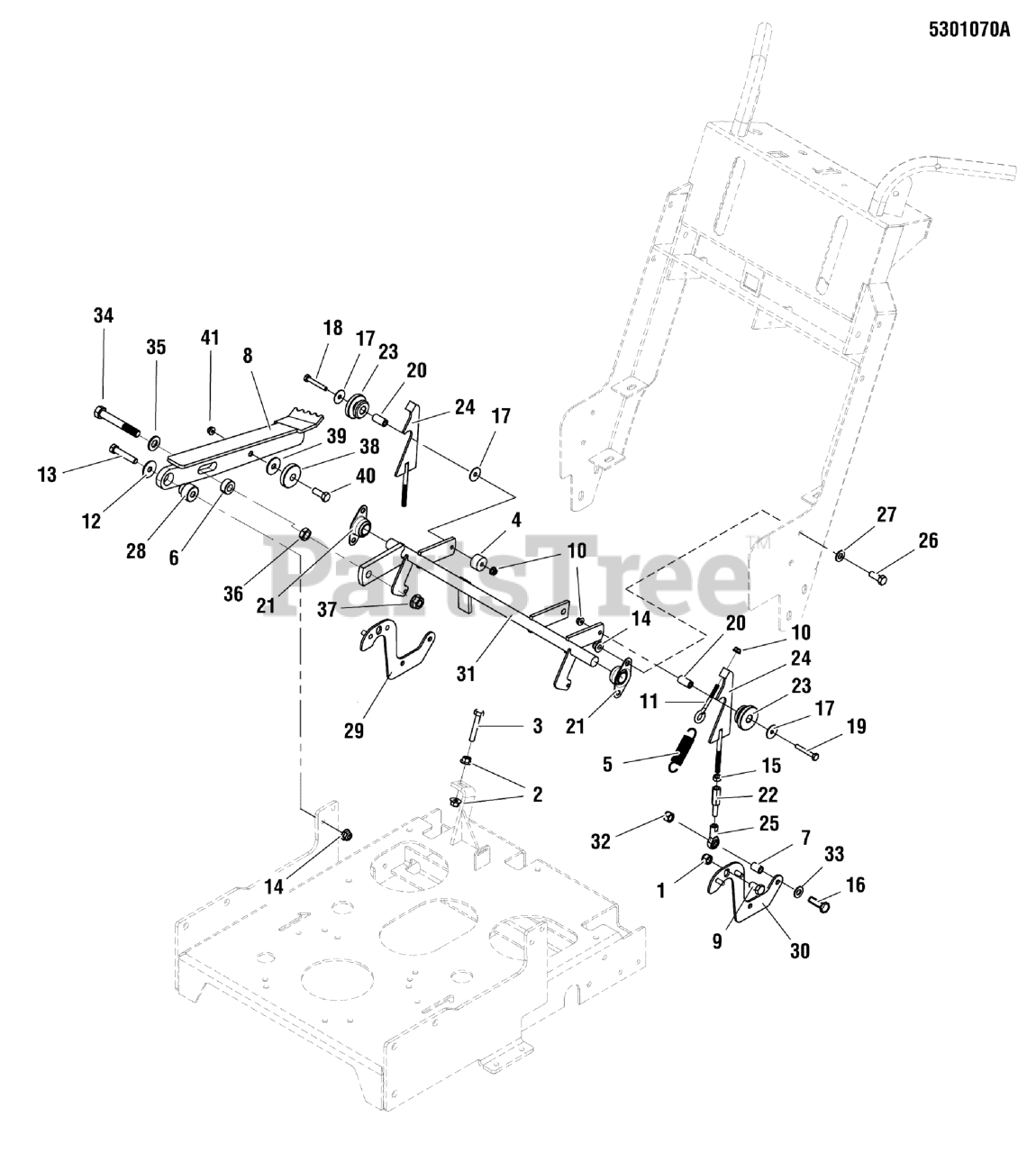

Motion Control Group - Lower (S/N: 2013231802 & Above) Parts Diagram

  • Title

1

Snapper Pro 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 725338

NUT, .31-24 HEX FLG SERRATED LK
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025538

BOLT, 5/16-24 X 1-3/4, FULL THRD, GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5101281

SPACER, .26 X .50 X .50 YZ

$9.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101339

SPRING, EXTENSION, 3.281 X .751 X .075 WIRE
(Superseded to 5101339FS)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5010580

COLLAR, 1/2 SET (1/2 SPLIT COLLAR IN MODEL)
(Superseded to 5010580FS)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5101260

SPACER, .33 X .63 X 1.00, YZ
(Superseded to 5101260YP)

$9.99

$

Usually ships in 2-12 days

0

8a

Snapper Pro 5407090D

WELD, FOOT PEDAL, SW30 - RED

Note: (S/N: 2014428481 & ABOVE)

$61.99

$

Usually ships in 2-12 days

0

8b

Snapper Pro 5405649D

WELD, FOOT PEDAL, SW30 - RED

Note: (S/N: 2014428480 & BELOW)

$73.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025189X24

EYE BOLT, 1/4-20 X 3, ZC

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

14

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025011X18X*

* BOLT, 5/16-18 X 2-1/4 GD5 YZ

$

$

Currently unavailable

17

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025010X18

BOLT, 1/4-20 X 2-1/4 GD5 CZ
(Superseded to 5025010X18SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025010X14

BOLT, 1/4 X 20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5102065

SPACER, .251 X .5005 X .860, BRASS

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

22

Snapper Pro 5101243

ADJUSTER, ROD LINKAGE 5/16-24

$15.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5100766

ROLLER, SPEED CONTROL

$27.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5101240

ROD, CONTROL RAMP

$26.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5104578

BALL JOINT 5/16-24 RH FEMALE STAMPED STL
(Superseded to 5104578YP)

$11.99

$

In Stock, only 2 left!

0

26

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

27

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

28a

Snapper Pro 5102406

SPACER, .38 X 1.13 X .781 STEP, CZ
(Superseded to 5102406FS)

Note: (S/N: 2014428481 & ABOVE)

$15.99

$

Usually ships in 2-12 days

0

28b

Snapper Pro 5101262

SPACER, .38 X 1.13 X 1.00 STEP, YZ

Note: (S/N: 2014428480 & BELOW)

$10.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5405374D

WELD, CONTROL ARM - RH - RED

$

$

Currently unavailable

30

Snapper Pro 5405373D

WELD, CONTROL ARM - RH - RED

$

$

Currently unavailable

31

Snapper Pro 5404490D

WELD, CONTROL SHAFT - RED

$104.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

34

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

36

Snapper Pro 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

38

Snapper Pro 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

Note: (S/N: 2014428481 & ABOVE)

$3.99

$

In Stock, only 1 left!

0

39

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

Note: (S/N: 2014428481 & ABOVE)

$8.49

$

In Stock, only 2 left!

0

40

Snapper Pro 5025561

SCREW, 5/16-18 X 1-1/4, FSHS, BLK, ALLEN

Note: (S/N: 2014428481 & ABOVE)

$2.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (S/N: 2014428481 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0
