SW 30 (5900548) - Snapper Pro SW30 Series 52" Walk-Behind Mower, 19hp Kawasaki Parking Brake Group Parts Diagram

SW30 Series 52" Walk-Behind Mower, 19hp Kawasaki

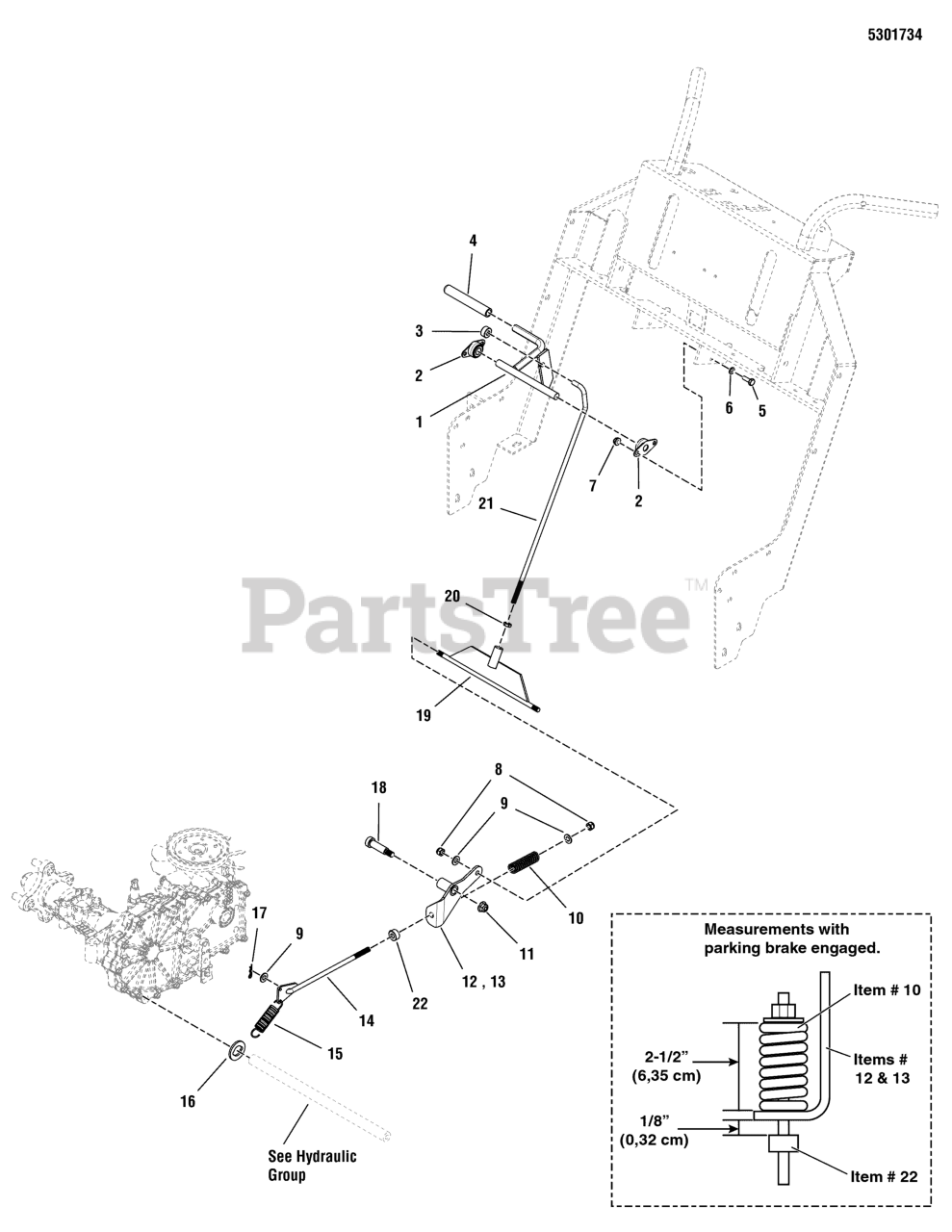

Parking Brake Group Parts Diagram

  • Title

1

Snapper Pro 5405442D

WELD, BRAKE SHAFT, SW30 - RED

$33.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

6

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

9

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Snapper Pro 5023242

SPRING-COMP, .496ID X 3.00LG X .112WR
(Superseded to 5023242SM)

$6.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Snapper Pro 5405231D

WELD, BRAKE ARM, LH, SW30 - RED

$36.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5405232D

WELD, BRAKE ARM, RH, SW30 - RED

$36.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102010

ROD, LOWER BRAKE, SW30

$21.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5101339

SPRING-EXT, 3.281 x .751 x .075 WIRE
(Superseded to 5101339FS)

$13.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5403960

WASHER, KEYED, 1-1/2 OD

$6.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5025220

BOLT-3/8-16 x 1-1/2, 1/2 SHOULDER
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5102199

BRAKE ROD, LOWER CONNECTION, SW30

$53.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101116

ROD, PULLER ROD
(Superseded to 5101116SM)

$16.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5102997

COLLAR, DOUBLE SPLIT, 5/16 CZ
(Superseded to 5102997FS)

$17.99

$

Usually ships in 2-12 days

0
