SW 35 (5901261) - Snapper Pro SW35 CC Series 48" Walk-Behind Mower, 21hp Kawasaki Motion Control Group - Upper (Centralized Controls) Parts Diagram

SW35 CC Series 48" Walk-Behind Mower, 21hp Kawasaki

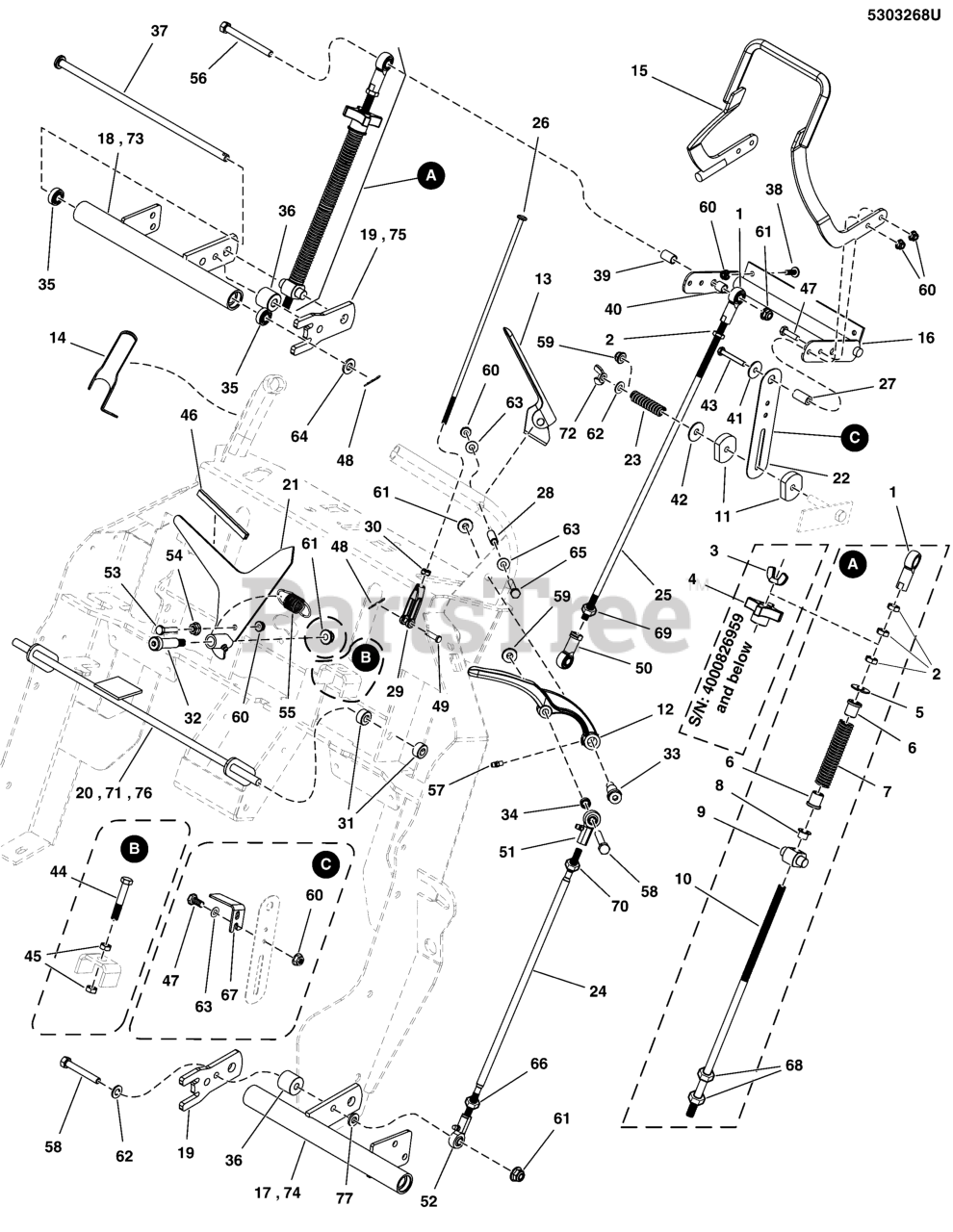

Motion Control Group - Upper (Centralized Controls) Parts Diagram

  • Title

1

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

Note: (Qty: 3 - S/N: 4000826959 and below)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025608

WING NUT, 3/8-24, CZ
(Superseded to 5025608FS)

Note: (S/N: 4000826959 and below)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5104174

KNOB, 4 ARM, 3/8-24
(Superseded to 5104174FS)

Note: (S/N: 4000826959 and below)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025401

WASHER, 3/8 USS
(Superseded to 5025401YP)

$3.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5104374

SPRING,COMP,.645IDX8.00LGX.080WR,BLK E-C
(Superseded to 5104374FS)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5103022

TRUNION, 1/2" POSTS, STAINLESS
(Superseded to 5103022FS)

$34.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5104229

ROD, CONTROL SYSTEM, WALK
(Superseded to 5104229FS)

$39.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104176

PAD, T-712 FRICTION MATERIAL
(Superseded to 5104176FS)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5102556A

HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

$38.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

$32.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5104202A

NLA - FLAP, OPS - BLK

$28.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5412664A

WELD, SPEED BAR - BLK
(Superseded to 5412664AAFS)

$74.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5412891A

NLA - WELD, SPEED CONTROL, SW35 - BLK
(Superseded to 5412891AAFS)

$60.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5411616A

WELD, CENTER PIVOT HUB, LH - WALK - BLK

Note: (S/N: 2017170234 & Below)

$127.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5412382A

WELD, CENTER PIVOT HUB, RH - WALK - BLK

Note: (S/N: 2017170234 & Below)

$124.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5411633A

TAB, CONTROL PIVOT - BLK

Note: (S/N: 2017170234 & Below)

$8.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5412020A

WELD, OPC ROD, WALK - BLK

Note: (S/N: 2017118253 & Below)

$65.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5413413A

WELD, SPEED INDICATOR, LOCKOUT - BLK

$36.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5409272

PLATE, FRICTION CONTROL, SS
(Superseded to 5409272FS)

$28.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5104221

SPRING, COMP, .40 X .60 X 2.25, BLACK
(Superseded to 5104221FS)

Note: (Compressed spring length: 1-3/4")

$11.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5104159

ROD, 5/16-24 X 15.48, LH-RH, CZ
(Superseded to 5104159FS)

$9.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5104164

ROD, 3/8-24, 19.00, LH-RH CZ
(Superseded to 5104164FS)

$12.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5101242

ROD, OPC LINK, SNP PRO WB
(Superseded to 5101242FS)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5101274

SPACER, .26 X .50 X 1.00
(Superseded to 5101274FS)

$5.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5101215

SPACER, .26 X .38 X 1.25, CZ
(Superseded to 5101215YP)

$8.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025220

BOLT-3/8-16 x 1-1/2, 1/2 SHOULDER
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5109888

BOLT, 3/8-16 X 1/2, 1.00 SHOULDER, CZ
(Superseded to 5109888FS)

$7.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5104351

SPACER, .33 X 1.00 X .88, CZ
(Superseded to 5104351FS)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper Pro 5104171

ROD, 3/8 X 12, HEADED - CZ
(Superseded to 5104171FS)

$10.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 1960715

SCREW-TRUSS HD TORX DR 1/4-20X0.750 T27
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

39

Snapper Pro 5047199

SPACER, .38 X .50 X .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 5101640

SPACER, .38 X .50 X .50
(Superseded to 5101640YP)

$7.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 5

0

42

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

43

Snapper Pro 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025426

BOLT, 1/2-20 X 2-1/2, FLT
(Superseded to 5025426FS)

$14.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, only 1 left!

0

46

Snapper Pro 5104568

U-CHANNEL, RPVC #6236 x 4"
(Superseded to 5104568FS)

$2.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

48

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5022392

BALL JOINT, 3/8-24 FEMALE, LH
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

51

Snapper Pro 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

53

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

54

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

55

Snapper Pro 5105337

SPRING, EXT, 0.525 X 0.058 X 2.250 SS
(Superseded to 5105337FS)

$7.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

57

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

58

Snapper Pro 5025011X18X*

BOLT, 5/16-18 X 2-1/4 GD5 CZ

$

$

Currently unavailable

59

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

60

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 5

0

62

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

63

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

64

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

65

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4 GD5 CZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

66

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

67

Snapper Pro 5412363A

BRACKET, SWITCH ENGAGEMENT - BLK

$6.99

$

Usually ships in 2-12 days

0

68

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

69

Snapper Pro 5025317

NUT, 3/8-24 HEX, LH
(Superseded to 5025317FS)

$3.49

$

Usually ships in 2-12 days

0

70

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

71

Snapper Pro 5413926A

WELD, OPC ROD, WALK - BLK

Note: (S/N: 2017118254 - 2017170234)

$64.99

$

Usually ships in 2-12 days

0

72

Snapper Pro 703429

NUT, Wing, 5/16-18

Note: (S/N: 2017118254 & Above)

$3.99

$

Usually ships in 2-12 days

0

73

Snapper Pro 5414183A

WELD, W35 CONTROL PIVOT, RH - BLK

Note: (S/N: 2017170235 & Above)

$113.99

$

Usually ships in 2-12 days

0

74

Snapper Pro 5414184A

WELD, W35 CONTROL PIVOT, LH - BLK
(Superseded to 5414184AAFS)

Note: (S/N: 2017170235 & Above)

$114.99

$

Usually ships in 2-12 days

0

75

Snapper Pro 5414411A

TAB, PIVOT, W35 - BLK

Note: (S/N: 2017170235 & Above)

$

$

Currently unavailable

76

Snapper Pro 5414516A

WELD, OPC ROD, WALK BEHIND - BLK

Note: (S/N: 2017170235 & Above)

$71.99

$

Usually ships in 2-12 days

0

77

Snapper Pro 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 3 left!

0
