SW 45 (5901902) - Snapper Pro SW45 CC Series 48" Walk-Behind Mower, 21hp Kawasaki Deck Lift Group Parts Diagram

SW45 CC Series 48" Walk-Behind Mower, 21hp Kawasaki

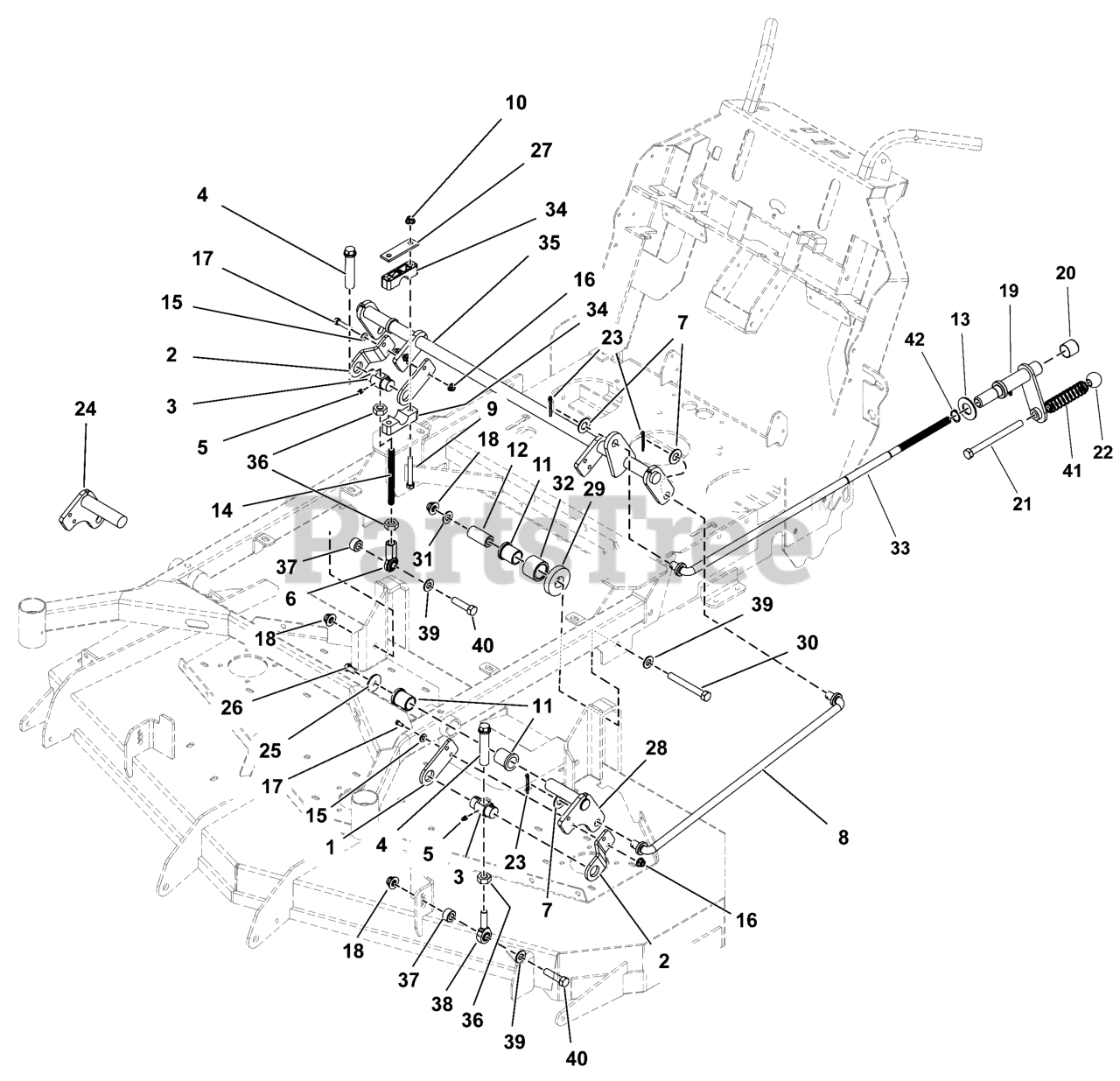

Deck Lift Group Parts Diagram

  • Title

1

Snapper Pro 5413900AA

BRACKET, INNER TRUNION MNT - BLK
(Superseded to 84003300)

$9.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5413899AA

BRACKET, OUTER TRUNION MNT - BLK
(Superseded to 84003301)

$17.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5104238

PIVOT, DECK LIFT TRUNION, GREASABLE
(Superseded to 84003302)

$36.99

$

In Stock, only 3 left!

0

4

Snapper Pro 5109915FS

ADJUSTER, HEIGHT

$7.49

$

In Stock, only 1 left!

0

5

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, only 3 left!

0

8

Snapper Pro 5104209

ROD, DECK LIFT TIMING, 48-52
(Superseded to 5104209FS)

$38.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

10

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

11

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 13

0

12

Snapper Pro 5100732

SPACER, .52 X 1.00 X 2.09 - SS
(Superseded to 5100732FS)

$28.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025162

WASHER-1.00 HYDRO CUT
(Superseded to 5025162SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102665

ROD, 1/2-20 X 5.50 TFL, CZ
(Superseded to 5102665FS)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

17

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 10

0

19

Snapper Pro 5109449

CRANK, HANDLE, W45
(Superseded to 5109449FS)

$55.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5102086

CAP, VINYL, 1.062 X 1.00 BLK
(Superseded to 5102086FS)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025017X48

BOLT, 1/2-13 X 6" GD5 YZ
(Superseded to 5025017X48SM)

$6.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

23

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5413896AA

NLA - WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5413896AAFS)

$52.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

26

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5403925AA

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

In Stock, only 1 left!

0

28

Snapper Pro 5413895AA

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5413895AAFS)

$49.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5061010

WASHER, FRICTION
(Superseded to 5061010FS)

$27.99

$

In Stock, only 1 left!

0

30

Snapper Pro 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 3 left!

0

31

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

32

Snapper Pro 5100731

ROLLER, DECK HEIGHT
(Superseded to 5100731FS)

$26.99

$

In Stock, only 1 left!

0

33

Snapper Pro 5104220

ROD, DECK HEIGHT
(Superseded to 5104220FS)

$45.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 5413894AA

WELD, SHAFT, DECK LIFT, SW35 - BLK

$

$

Currently unavailable

36

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, only 2 left!

0

37

Snapper Pro 5105392

WASHER, .515 X 1.00 X .25", CZ
(Superseded to 5105392FS)

$2.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5104267

BALL JOINT, 1/2-20, RH, MALE, METAL RACE
(Superseded to 5104267FS)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

40

Snapper Pro 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5107543

SPRING, FORWARD RETURN, FW15
(Superseded to 5107543FS)

$6.49

$

Usually ships in 2-12 days

0

42

Snapper Pro 5109482

SNAP RING, EXTERNAL, 15/16" SHAFT
(Superseded to 5109482FS)

$2.49

$

Usually ships in 2-12 days

0
