SW 45 (5901902) - Snapper Pro SW45 CC Series 48" Walk-Behind Mower, 21hp Kawasaki Electrical Group Parts Diagram

SW45 CC Series 48" Walk-Behind Mower, 21hp Kawasaki

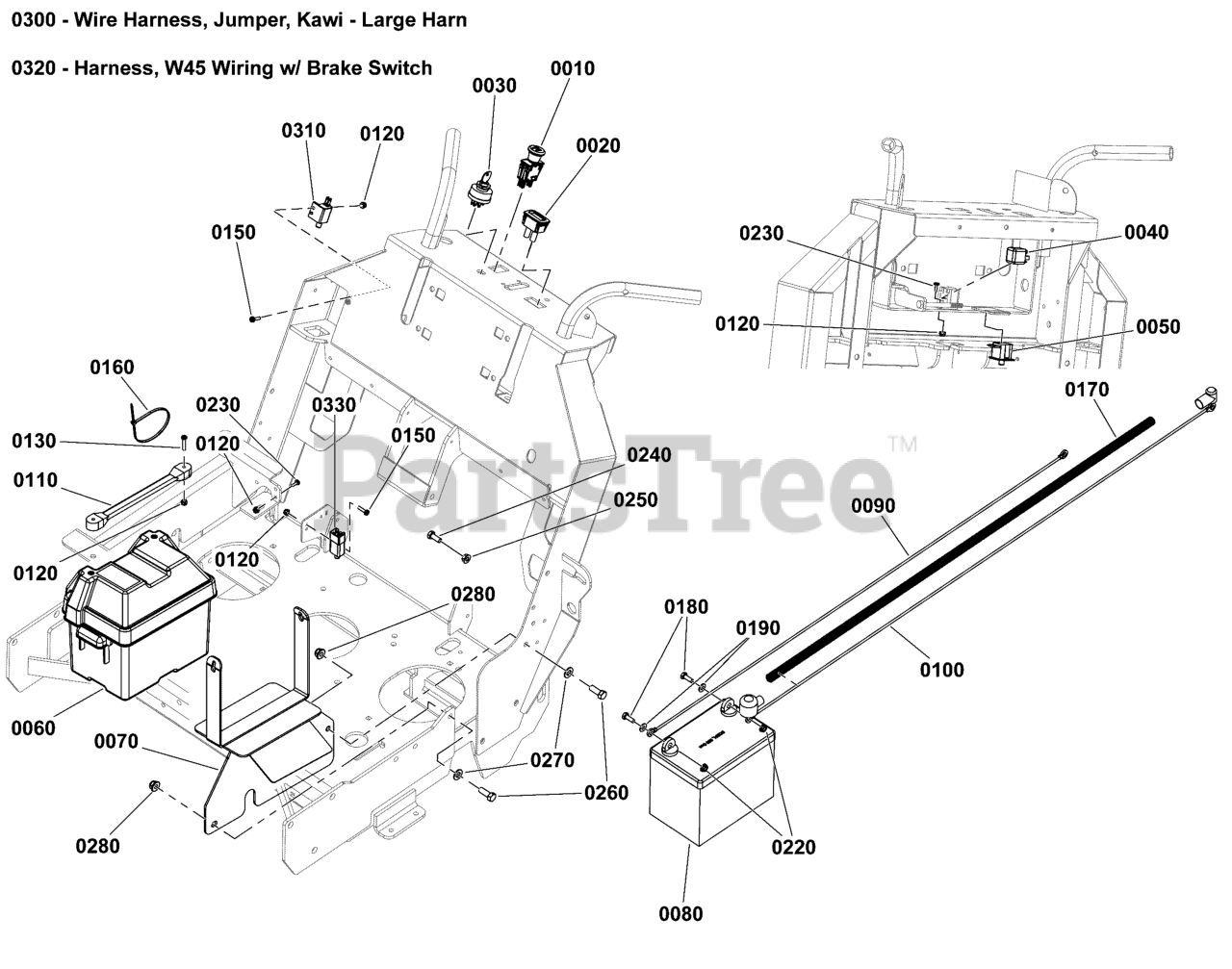

Electrical Group Parts Diagram

  • Title

0010

Snapper Pro 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 84008510

HOURMETER

$33.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5101280

SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
(Superseded to 5101280YP)

$30.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5413945AA

WELD, BATTERY MOUNT, W35 - BLK
(Superseded to 5413945AAFS)

$124.99

$

Usually ships in 2-12 days

0

0080

BATTERY, 11U1L, 350 CCA

$

$

Not available

0090

Snapper Pro 5101396

CABLE, BATTERY, NEG, 30, 1/4-5/16
(Superseded to 5101396YP)

$35.99

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5044876

BATTERY CABLE, POS, 35, 1/4-5/16
(Superseded to 5044876SM)

$29.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0170

Snapper Pro 5050927X27

WIRE LOOM, 3/8 ID X 27" LONG
(Superseded to 5050927X27FS)

$3.49

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0190

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

0240

Snapper Pro 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

0270

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

0300

Snapper Pro 5105303

WIRE HARNESS, JUMPER, KAWI - LARGE HARNE
(Superseded to 5105303FS)

$18.99

$

Usually ships in 2-12 days

0

0310

Snapper Pro 5021451

SWITCH, PLUNGER, N.O., BOLT-ON
(Superseded to 5021451SM)

$11.99

$

In Stock, only 2 left!

0

0320

Snapper Pro 5108762

HARNESS, W45 WIRING W/ BRAKE SW
(Superseded to 5108762FS)

$186.99

$

Usually ships in 2-12 days

0

0330

Snapper Pro 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 7

0
