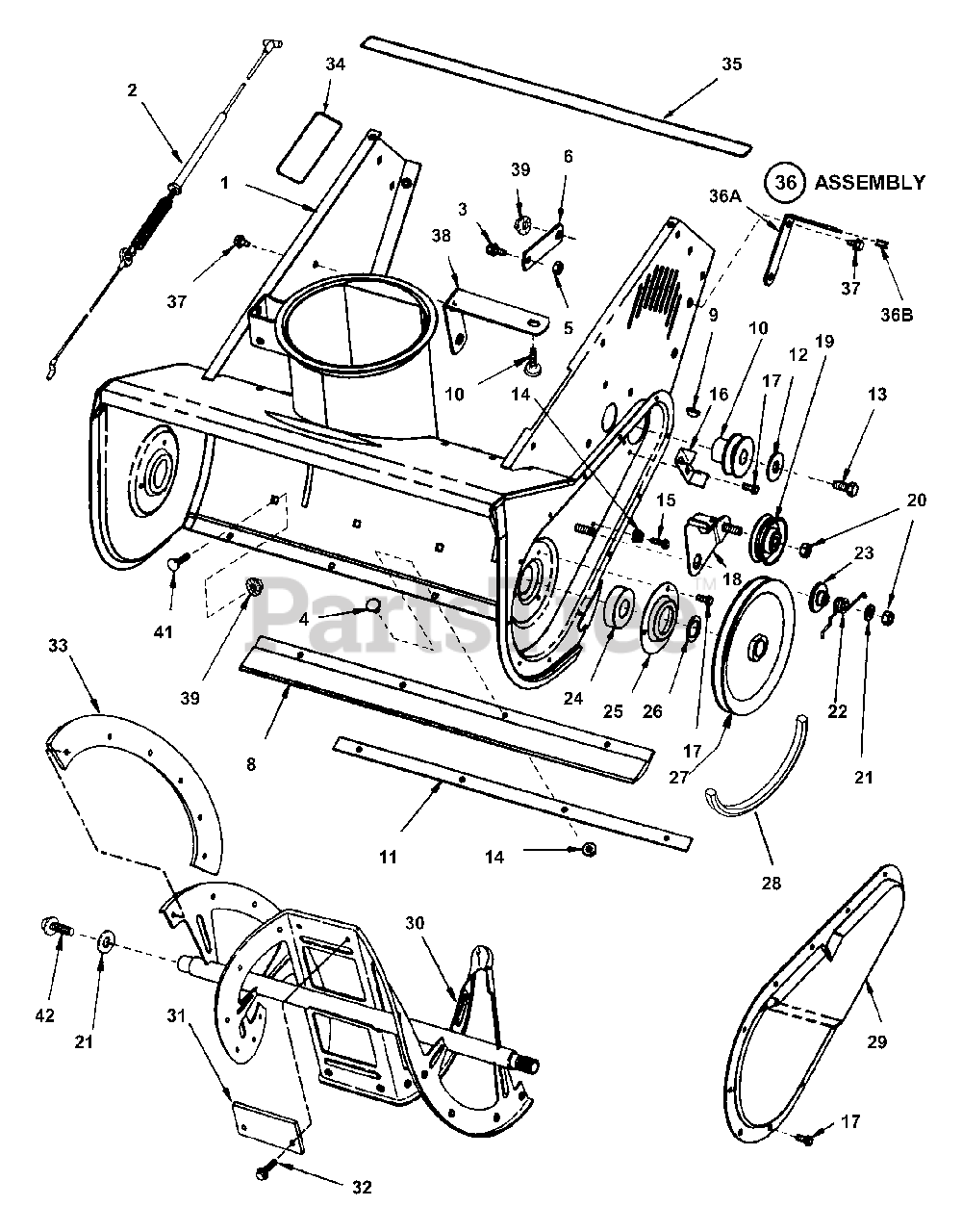

SX 5200E (7084563) - Snapper 20" Snow Thrower, 5hp Collector Housing, Belts, Pulleys, Auger Parts Diagram

20" Snow Thrower, 5hp

Collector Housing, Belts, Pulleys, Auger Parts Diagram

  • Title

1

Snapper 7041850

WELDMENT, Blower Housing

$

$

Not available

2

Snapper 7018796

CABLE, Clutch
(Superseded to 7018796YP)

$31.99

$

In Stock, only 2 left!

0

3

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7091283

BOLT, #10-24 x 5/8" Flat Head Carriage
(Superseded to 7091283YP)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

6

Snapper 7041952

STRAP, Engine

$

$

Not available

?7

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

Note: (no longer used with item 13)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7028427

SCRAPER, Blade
(Superseded to 7028427YP)

$32.99

$

In Stock, Qty 9

0

9

Snapper 7010008

KEY, (#6) 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7028363

PULLEY, Engine
(Superseded to 7028363YP)

$47.99

$

Usually ships in 2-12 days

0

11

Snapper 7028312

BLADE, Wear Indicator
(Superseded to 7028312BMYP)

$22.99

$

In Stock, only 4 left!

0

12

Snapper 7014098

WASHER, .343 I.D. x 1" O.D. Flat
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

13

Snapper 7072621

SCREW, 5/16-24 x 3/4" Hex Head Cap w/patch lock, Grade 5
(Superseded to 7072621YP)

$7.49

$

Usually ships in 2-12 days

0

Snapper 7061382

KIT, Engine Pulley

Note: (Includes items 10, 12, 13 & 1 item 7)

$

$

Currently unavailable

14

Snapper 7091079

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7091075

SCREW, #10-24 x 5/8" Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

16

Snapper 7032345

GUIDE, Belt
(Superseded to 7032345YP)

$7.49

$

Usually ships in 2-12 days

0

17

Snapper 7090981

SCREW, #10-32 x 1/4" Slotted Hex Washer Head, Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7051506

ASSEMBLY, Idler Arm
(Superseded to 7051506YP)

$57.99

$

Usually ships in 2-12 days

0

19

Snapper 7014722

PULLEY, Idler Arm
(Superseded to 7014722YP)

$24.99

$

Usually ships in 2-12 days

0

20

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 10

0

21

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7014920

SPRING, Idler Brake
(Superseded to 7014920YP)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper 7014919

SPACER, Bearing
(Superseded to 7014919YP)

$9.49

$

Usually ships in 2-12 days

0

24

Snapper 7014608

BEARING, Auger
(Superseded to 7014608SM)

$34.99

$

Usually ships in 2-12 days

0

25

Snapper 7042722

RETAINER, Bearing
(Superseded to 7032346YP)

$42.99

$

Usually ships in 2-12 days

0

26

Snapper 7010935

WASHER, 3/4" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7018635

PULLEY
(Superseded to 7018635SM)

$57.99

$

Usually ships in 2-12 days

0

28

Snapper 7041947

BELT, Auger 32.89
(Superseded to 7041947YP)

$32.99

$

In Stock, only 1 left!

0

29

Snapper 7019753

COVER, Belt

$

$

Not available

Snapper 7052309

ASSEMBLY, Auger
(Superseded to 7052309YP)

Note: (Includes items 30 thru 33)

$402.99

$

In Stock, only 3 left!

0

30

Snapper 7047027

AUGER Structure 20"
(Superseded to 7052309YP)

$402.99

$

In Stock, only 3 left!

0

31

Snapper 7014612

SHOE, Flight, Center
(Superseded to 7014612SM)

$5.49

$

In Stock, Qty 17

0

32

Snapper 7091286

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 17

0

33

Snapper 7029565

SHOE, Flite
(Superseded to 7029565SM)

$30.99

$

In Stock, Qty 20+

0

Snapper 7060631

KIT, Flite Shoe
(Superseded to 7060631YP)

Note: (Includes 2 item 31 & 4 item 33)

$150.99

$

In Stock, Qty 9

0

34

Snapper 7041958

DECAL, Model (Recoil)

$

$

Not available

Snapper 7046308

DECAL, Model (Electric Start)
(Superseded to 7046308YP)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7046307

DECAL, Model, Auger Housing (Recoil)
(Superseded to 7046307YP)

$6.99

$

Usually ships in 2-12 days

0

Snapper 7046309

DECAL, Model, Auger Housing (Electric Start)

$

$

Not available

36

Snapper 7051560

ASSEMBLY, Bracket/Bushing
(Superseded to 7051560YP)

Note: (Includes 36A & 36B)

$23.99

$

Usually ships in 2-12 days

0

36A

Snapper 7032459

BRACKET, Cable Guide
(Superseded to 7032459YP)

$33.99

$

Usually ships in 2-12 days

0

36B

Snapper 7015146

BUSHING, Nylon
(Superseded to 7015146YP)

$

$

Not available

37

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7041953

BRACKET, Fuel Tank
(Superseded to 7041953YP)

$17.99

$

Usually ships in 2-12 days

0

39

Snapper 7091601

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

?40

Snapper 7091246

SCREW, 1/4-20 x 3/4" Self-Tapping (Torx)
(Superseded to 7091246YP)

$3.99

$

In Stock, only 4 left!

0

41

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

42

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0
