SX 5200R (7084562) - Snapper 20" Snow Thrower, 5hp Handles, Blade Control Parts Diagram

20" Snow Thrower, 5hp

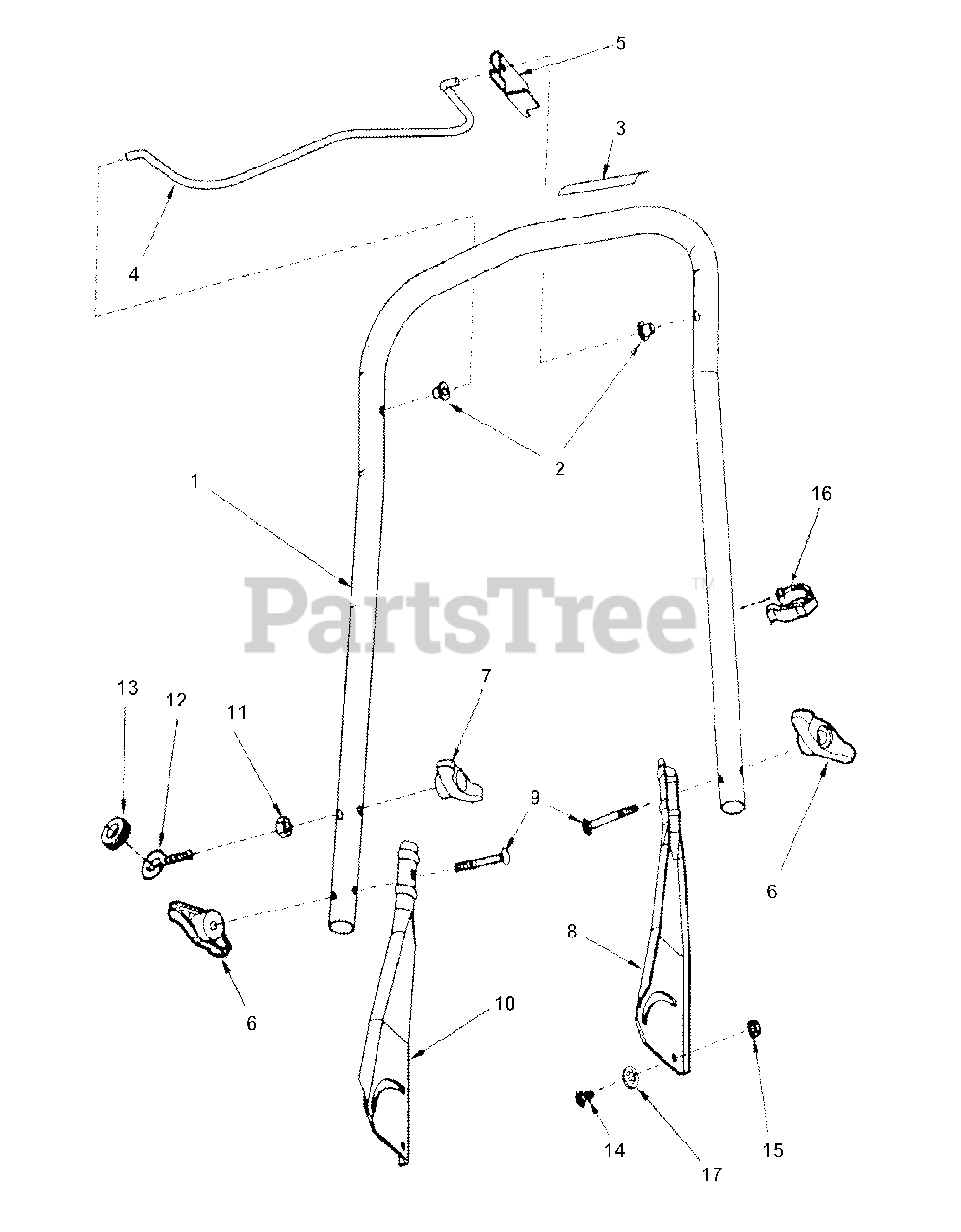

Handles, Blade Control Parts Diagram

  • Title

1

Snapper 7041946

HANDLE, Upper

$

$

Not available

2

Snapper 7014343

BUSHING, Auger Control
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 14

0

3

Snapper 7028309

DECAL, Auger Control Instruction
(Superseded to 7028309YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7017072

CONTROL, Auger
(Superseded to 7047011YP)

$

$

Not available

5

Snapper 7033904

CLIP, Auger Control
(Superseded to 7034872YP)

$5.99

$

In Stock, only 1 left!

0

6

Snapper 7046363

KNOB, 1/4-20 Wing (Black)
(Superseded to 7046363YP)

$3.99

$

In Stock, Qty 6

0

7

Snapper 7035744

KNOB, 5/16-18 Wing
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7042723

BRACKET, Lower Handle (Left Side)

$

$

Not available

9

Snapper 7091083

BOLT, 1/4-20 x 2" Square Neck Carriage, Grade 5

$1.99

$

Usually ships in 2-12 days

0

10

Snapper 7042724

BRACKET, Lower Handle (Right Side)
(Superseded to 7042724YP)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7017623

EYE-BOLT, 5/16-18
(Superseded to 7017623YP)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper 7017622

GROMMET, Chute Crank
(Superseded to 7017622YP)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, only 3 left!

0
