SY 100 PE (56A-734E195) - MTD Pro Spreader/Sprayer Engine & Pump Assembly Parts Diagram

Pro Spreader/Sprayer

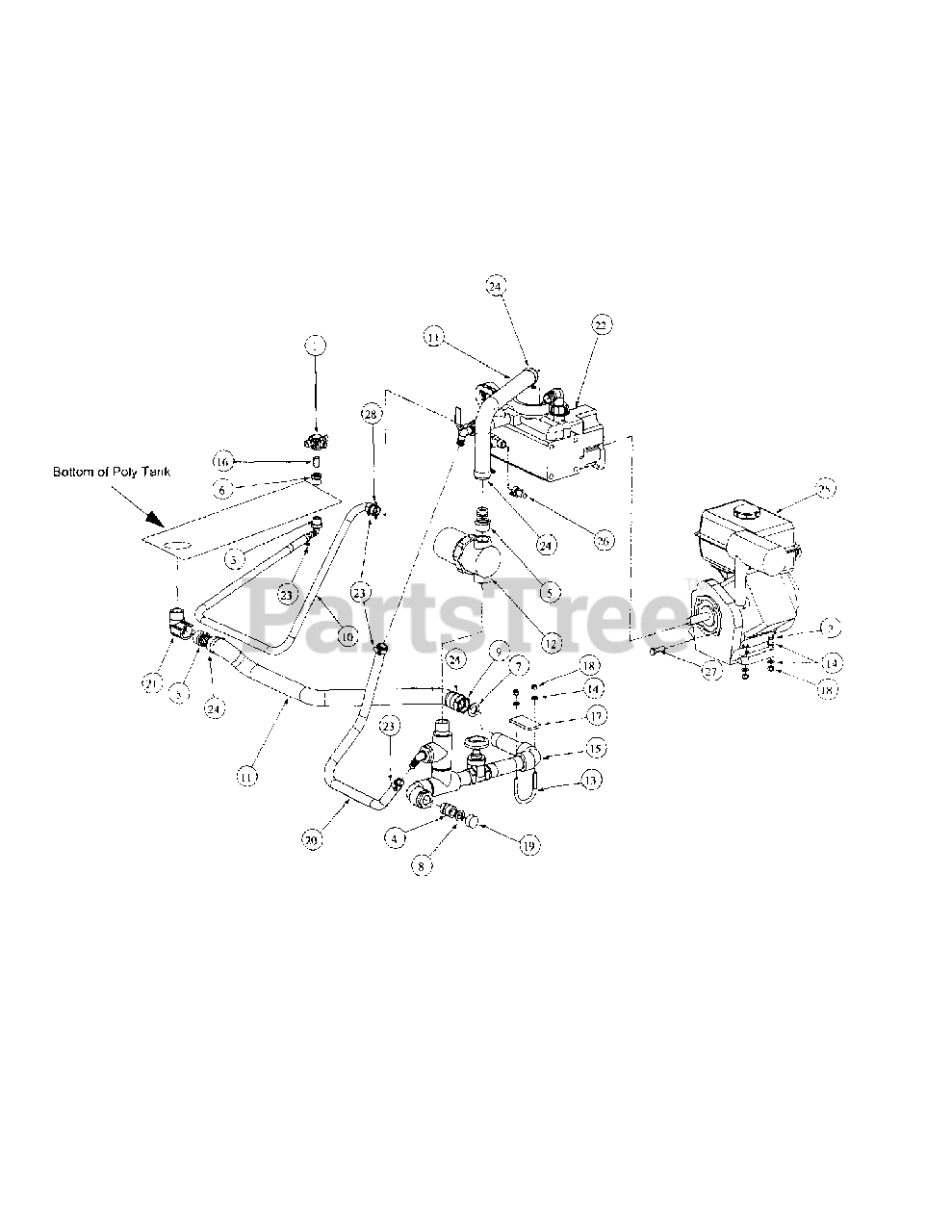

Engine & Pump Assembly Parts Diagram

  • Title

1

MTD 00005610

Agitator, Jet

$130.99

$

Usually ships in 3-6 days

0

2

MTD 00006129

HHCS, 5/16-18, 1-3/4

$6.49

$

Usually ships in 3-6 days

0

3

MTD 00006145

Hose Barb, 1/2 NPT, 1/2 Nylon

$5.49

$

Usually ships in 3-6 days

0

4

MTD 00006303

Adapter, 3/4 NPT, 3/4 Hose

$14.99

$

In Stock, only 2 left!

0

5

MTD 00006416

Hose Barb, 1" NPT, 1" Nylon

$12.99

$

Usually ships in 3-6 days

0

6

MTD 00006430

Adapter, 1/4 NPT, 1/2 NPT

$11.99

$

Usually ships in 3-6 days

0

7

MTD 00006942

Washer, Hose 1"

$

$

Not available

8

MTD 00007595

Washer Hose, 3/4" Rubber

$7.99

$

In Stock, only 1 left!

0

9

MTD 00007713

Repair Coupling, Hose

$28.99

$

Usually ships in 3-6 days

0

10

MTD 00008295

Hose, 1/2" sold by the ft.

$

$

Not available

11

MTD 00009134

Hose, 1", Spiraflex sold by the ft.

$6.49

$

In Stock, only 2 left!

0

12

MTD 01004380

Strainer, 30 Mesh-SS
(Superseded to HY-3350-0061P)

$244.99

$

Usually ships in 3-6 days

0

13

MTD 00009670

U-Bolt, 5/16-18 x 2

$2.99

$

In Stock, only 1 left!

0

14

MTD 00009812

Flat Washer, 5/16 SAE

$

$

Not available

15

MTD 00011021

Manifold Assembly

$237.99

$

Usually ships in 3-6 days

0

16

MTD 00011939

Nipple, 1/4 NPT

$

$

Not available

17

MTD 00012038

Rubber Pad 1/4" x 1-1/2" x 3"

$11.99

$

Usually ships in 3-6 days

0

18

MTD 00012165

Nut, 5/16-18, Nylock

$4.49

$

In Stock, only 1 left!

0

19

MTD 00012664

Hose Cap, 3/4"

$6.99

$

In Stock, only 1 left!

0

20

MTD 00030918

Hose 5/8" PVC sold by the ft.

$

$

Not available

21

MTD 00070471

Street Elbow, PVC 1" NPT x 1"

$13.99

$

Usually ships in 3-6 days

0

22

MTD 01000210

Pump Assembly

$

$

Not available

23

MTD 01000216

Hose Clamp, 1/2, 7/8

$

$

Not available

24

MTD 01000217

Hose Clamp, 7/8, 1-1/4

$14.99

$

In Stock, only 1 left!

0

25

MTD 01001001P

Engine, 5.5HP Kawasaki

$2813.99

$

Usually ships in 3-6 days

0

26

MTD 00017298

Fittings
(Superseded to HY-9910-110130)

$20.99

$

Usually ships in 3-6 days

0

27

MTD 01005050

Button Head Bolt, m8-1.25 x 25 mm

$

$

Not available
