SZ-54 KW (53YI2PUC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2016) Brake Handle Assembly Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

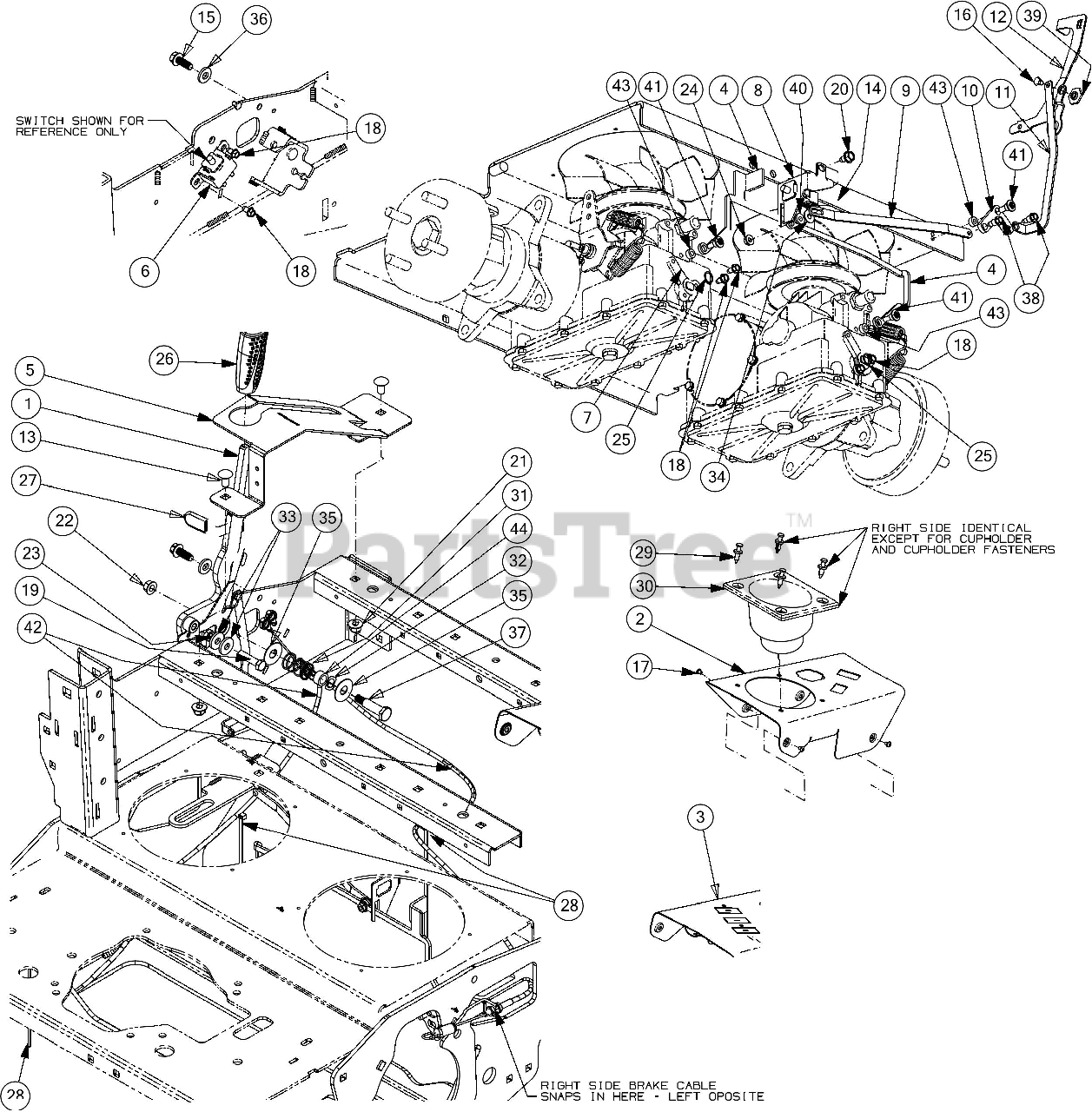

Brake Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 680-00339-0637

BRAKE HANDLE ASSEMBLY

$55.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08123-4021

CONTROL PANEL (LH)

$38.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08482-4021

CONTROL PANEL (RH)

$40.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09587A

DUMP VALVE BRACKET

$19.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09592-0637

BRAKE BOOT BRACKET

$36.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09604-0637

BRAKE PANEL MOUNT

$17.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09665-0637

TRANSMISSION BYPASS LEVER
(Superseded to 703E09665)

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09701-0637

NEUTRAL BRACKET
(Superseded to 703E09701)

$15.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09703

ACTUATOR ARM LINK

$41.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-09731

NEUTRAL CONTROL LEVER

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-09739A

NEUTRAL ARM LINK

$16.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-09912

RELEASE VALVE LEVER

$48.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 X .750 GR5

$4.49

$

In Stock, Qty 10

0

14

Cub Cadet 710-04666

SCREW 1/4-20 X .75 GR5

$6.49

$

In Stock, Qty 7

0

15

Cub Cadet 710-04683C

SCREW 3/8-16 X 1

$6.49

$

In Stock, Qty 15

0

16

Cub Cadet 710-05132

SCREW M6 X 8MM

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05421

SCREW #10-32 X .25

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-06021

SCREW 3/8-16 X 1.50 GR8

$3.49

$

In Stock, only 2 left!

0

20

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 912-3008

HEX NUT

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 912-3027

LOCK NUT 1/4

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 916-0114

SNAP RING

$6.49

$

In Stock, Qty 11

0

26

Cub Cadet 720-04139B

GRIP

$17.99

$

In Stock, Qty 6

0

27

Cub Cadet 720-0433

SEAT ADJUSTER GRIP

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

29

Cub Cadet 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 731-08438

CUP HOLDER

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-04481

COMPRESSION SPRING .844X.970X1.50

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0232

WAVE WASHER
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 16

0

33

Cub Cadet 736-0258

FLAT WASHER .385 X 1.00 X .135

$4.49

$

In Stock, Qty 11

0

34

Cub Cadet 736-0342

FLAT WASHER .283 ID X .749 X .030

$6.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-04237

FLAT WASHER

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

37

Cub Cadet 738-0213

SHOULDER SCREW .498 DIA X 1.450-THD

$7.49

$

In Stock, Qty 5

0

38

Cub Cadet 738-04425

SHOULDER SCREW

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 738-04446

SHOULDER SPACER

$6.49

$

In Stock, only 3 left!

0

40

Cub Cadet 738-04483

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-0706C

SHOULDER SCREW .375X.280:1/4-14
(Superseded to 738-0706D)

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 946-05103

BRAKE CABLE
(Superseded to 946-05103A)

$39.99

$

In Stock, only 1 left!

0

43

Cub Cadet 750-05297

SPACER

$3.99

$

In Stock, Qty 5

0

44

Cub Cadet 750-06360

SPACER

$5.99

$

Usually ships in 3-6 days

0
