SZT 275 (2691460-00) - Simplicity Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton Frame Suspension Group, EU Parts Diagram

Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton

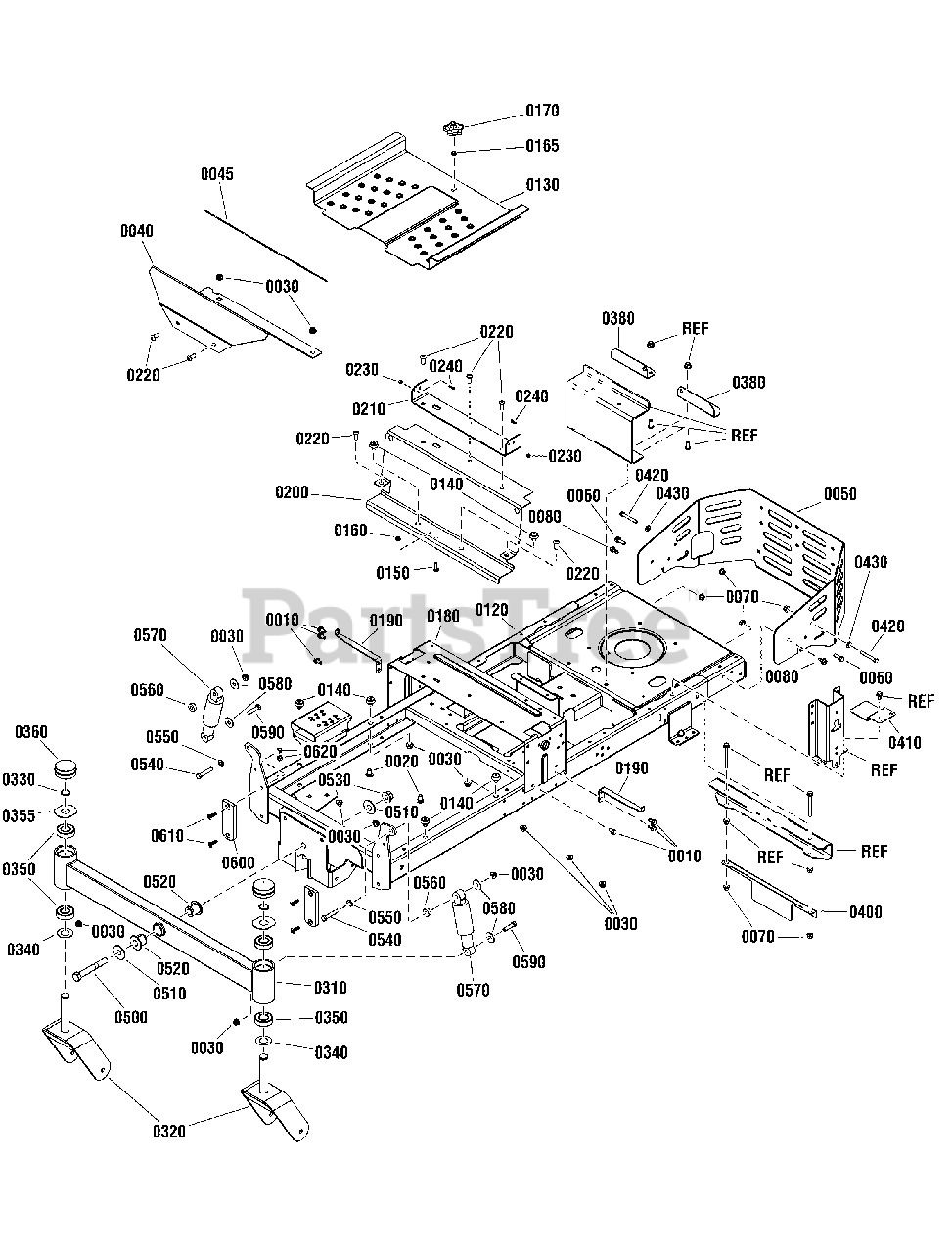

Frame Suspension Group, EU Parts Diagram

  • Title

0010

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 16

0

0020

Simplicity 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 7

0

0040

Simplicity 1759278CYP

FOOTREST, Pivoting Axle (Orange)

$128.99

$

Usually ships in 2-12 days

0

0045

Simplicity 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0050

Simplicity 1759970CYP

BUMPER, Rear (Orange)

$307.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703410

BOLT, 5/16-18 X 1.0, Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0070

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0080

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0120

WELDMENT, ZT Frame - Full Suspension (Orange)

Note: * Not a part sale item.

$

$

Not available

0130

Simplicity 1757813CYP

PAN, Bottom Foot (Orange)

$164.99

$

Usually ships in 2-12 days

0

0140

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7090496YP

BOLT, Carriage, 1/4C X 1, GR5

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, only 2 left!

0

0165

Simplicity 15X143MA

NUT, Center Lock, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0170

Simplicity 707785

KNOB, 5 Prong

$5.99

$

In Stock, only 1 left!

0

0180

Simplicity 1758010CYP

BRACKET, Control (Orange)

$112.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1758240AYP

BRACKET, Fender

$9.49

$

Usually ships in 2-12 days

0

0200

Simplicity 1757796CYP

BRACKET, Brand Plate (Orange)

$108.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1758835CYP

BRACKET, Seat Pivot (Orange)

$28.99

$

Usually ships in 2-12 days

0

0220

Simplicity 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 5025339YP

NUT, Hex, 8-32

$2.99

$

Usually ships in 2-12 days

0

0240

Simplicity 770013

SCREW, 8-32 X .50 LG, Hex Head Cap

$3.49

$

Usually ships in 2-12 days

0

0310

Simplicity 1758686CYP

WELDMENT, Front Axle - Pivoting (Orange)

$290.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1759815CYP

WELDMENT, Caster Yoke (Pivoting Axle)(Orange)

$99.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703993

RETAINER, Ring

$3.49

$

Usually ships in 2-12 days

0

0340

Simplicity 703199

WASHER, Flat

$4.99

$

In Stock, only 2 left!

0

0350

Simplicity 1758354YP

BEARING, 25 MM

$10.99

$

In Stock, only 3 left!

0

0355

Simplicity 1722726SM

WASHER

$5.49

$

In Stock, only 1 left!

0

0360

Simplicity 1725651SM

COVER, Spindle

$4.49

$

In Stock, only 4 left!

0

0380

Simplicity 1760066AYP

GUARD, Tank (Black)

$10.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1760067CYP

GUARD, Transmission, Suspension (Orange)

$35.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1760068CYP

GUARD, Frame (Orange)

$11.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4, GD 5, TFL, ZN

$3.99

$

In Stock, only 1 left!

0

0430

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 707789

BOLT, Hex Head, 5/8-11 X 4 1/2, G5

$5.49

$

Usually ships in 2-12 days

0

0510

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, Qty 13

0

0520

Simplicity 1759234YP

BUSHING, Flanged

$9.49

$

Usually ships in 2-12 days

0

0530

Simplicity 2860646SM

NUT, Hex Flange, 5/8-11

$10.99

$

In Stock, Qty 7

0

0540

Simplicity 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

Usually ships in 2-12 days

0

0550

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0560

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 5

0

0570

Simplicity 1755279YP

SHOCK ABSORBER

$69.99

$

Usually ships in 2-12 days

0

0580

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 1 left!

0

0590

Simplicity 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, Qty 5

0

0600

Simplicity 1759391YP

PAD, Friction

$13.99

$

Usually ships in 2-12 days

0

0610

Simplicity 5025594YP

SCREW, Phillips Head, 5/16-18 X 1

$3.99

$

Usually ships in 2-12 days

0

0620

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 11

0
