SZT 550 CE (5901403) - Simplicity Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton Main Frame & Front Casters Group (5304307_5304308) Parts Diagram

Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton

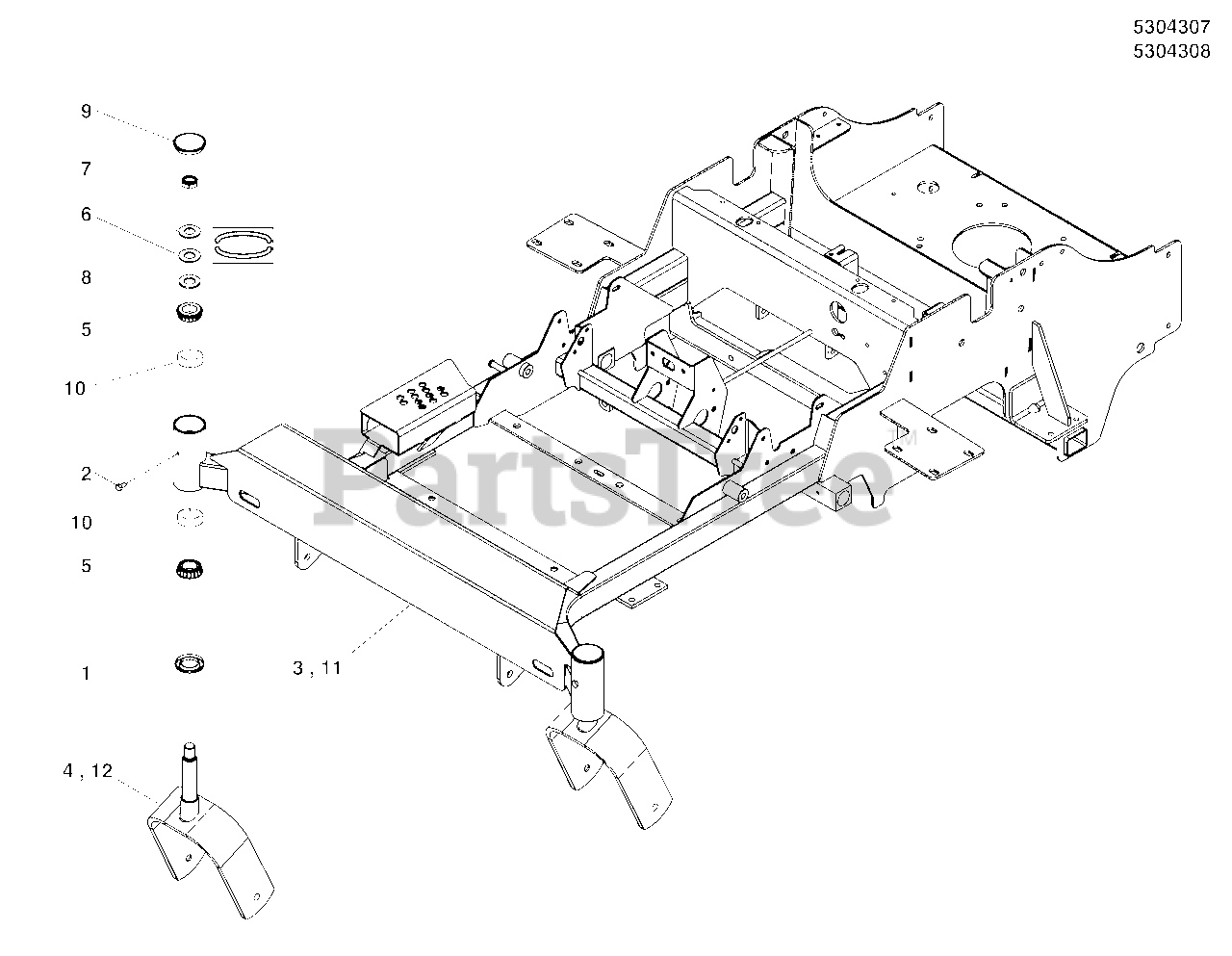

Main Frame & Front Casters Group (5304307_5304308) Parts Diagram

  • Title

1

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

$3.99

$

In Stock, only 1 left!

0

3

WELD, MAIN FRAME, CONTENDER, 61"

Note: (61" Models)

$

$

Not available

4

Simplicity 5402208CSM

WELD, CASTER YOKE - ORG

Note: (61" Models)

$170.99

$

Usually ships in 2-12 days

0

5

Simplicity 5020884SM

BEARING, TAPERED ROLLER, 1

$25.99

$

In Stock, only 2 left!

0

6

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

In Stock, only 2 left!

0

7

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, only 2 left!

0

8

Simplicity 5025160SM

WASHER, 3/4 SAE

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

In Stock, Qty 12

0

10

Simplicity 5020883SM

BEARING CUP (SV)

$9.49

$

In Stock, Qty 5

0

11

WELD, MAIN FRAME, CONTENDER, 52"

Note: (52" Models)

$

$

Not available

12

Simplicity 5404838CYP

WELD, CASTER YOKE - ORG

Note: (52" Models)

$170.99

$

Usually ships in 2-12 days

0
