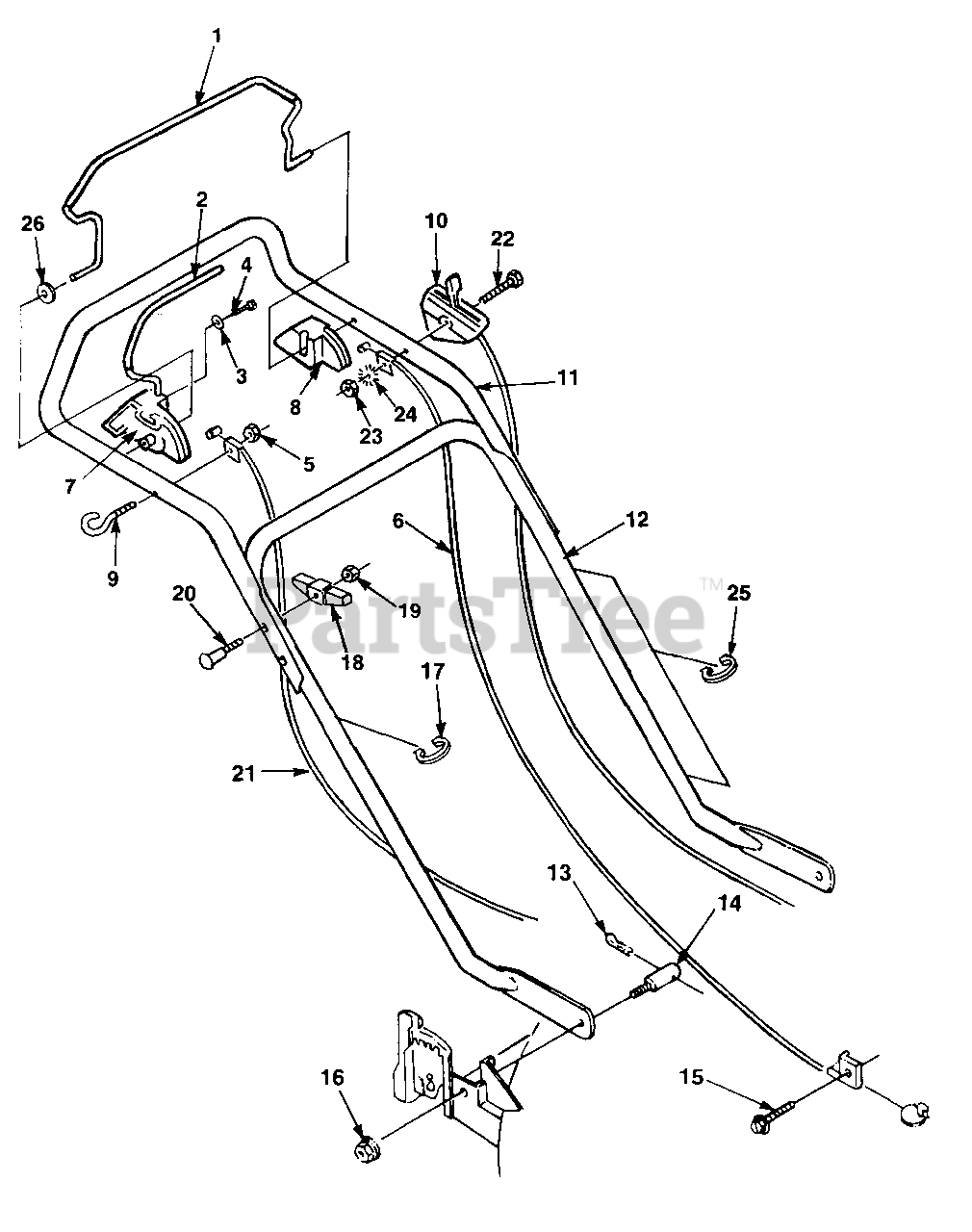

T 20 H (UT-30116) - Homelite 20" Turbo Vac Walk-Behind Mower Handles & Controls Parts Diagram

20" Turbo Vac Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite JA994227

BAIL- Brake control

$

$

Currently unavailable

2

Homelite JA994172

TRACTION- Bail

Note: Not used on this product

$

$

Currently unavailable

3

Homelite JA452002

WASHER- Flat (1/4") #10

Note: Not used on this product

$

$

Not available

4

Homelite JA409704

SCREW- Hex hd. (10-16 x 1/2")

Note: Not used on this product

$

$

Not available

5

Homelite JA444708

NUT- Hex (1/4-20)

$

$

Currently unavailable

6

Homelite JA994229

CONTROL- Manual start

$

$

Currently unavailable

7

Homelite JA991906

ACTUATOR- R.H.

Note: Not used on this product

$

$

Currently unavailable

8

Homelite JA991907

ACTUATOR- L.H.

$

$

Currently unavailable

9

Homelite JA991952

EYEBOLT- (1/4-20 x 1 3/4")

$

$

Currently unavailable

10

Homelite JA993195

CONTROL- Throttle

$24.99

$

Usually ships in 3-7 days

0

11

Homelite JA994125

HANDLE- Upper

$

$

Currently unavailable

12

Homelite JA992400

HANDLE- Lower

$

$

Currently unavailable

13

Homelite JA460306

PIN- Hair

$

$

Not available

14

Homelite JA359178

STUD

$

$

Not available

15

Homelite JA403744

SCREW- (10-24 x 1/2")

$

$

Currently unavailable

16

Homelite JA445775

NUT- Flanged (5/16-18)
(Superseded to UP06674)

$

$

Not available

17

Homelite JA995420

CLAMP- Cable single
(Superseded to JA994274)

$

$

Not available

18

Homelite JA339550

KNOB- Handle

$

$

Not available

19

Homelite JA443106

NUT- Hex (5/16 x 18)
(Superseded to 81018)

$

$

Not available

20

Homelite JA359102

BOLT- Hdle. joining

$

$

Not available

21

Homelite JA994234

CABLE- Traction control

Note: Not used on this product

$

$

Currently unavailable

22

Homelite JA993197

SCREW- Hex cap
(Superseded to UP06523)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

24

Homelite JA447010

WASHER- External tooth (1/4")

$

$

Currently unavailable

25

Homelite JA995410

CLAMP- Double
(Superseded to JA994274)

$

$

Not available

26

Homelite JA453009

WASHER- Flat 5/16"
(Superseded to UP07173)

$

$

Not available

Homelite JA991636

TIE- Cable (not shown)

$

$

Not available
