T 20 - Shindaiwa String Trimmer Starter Parts Diagram

String Trimmer

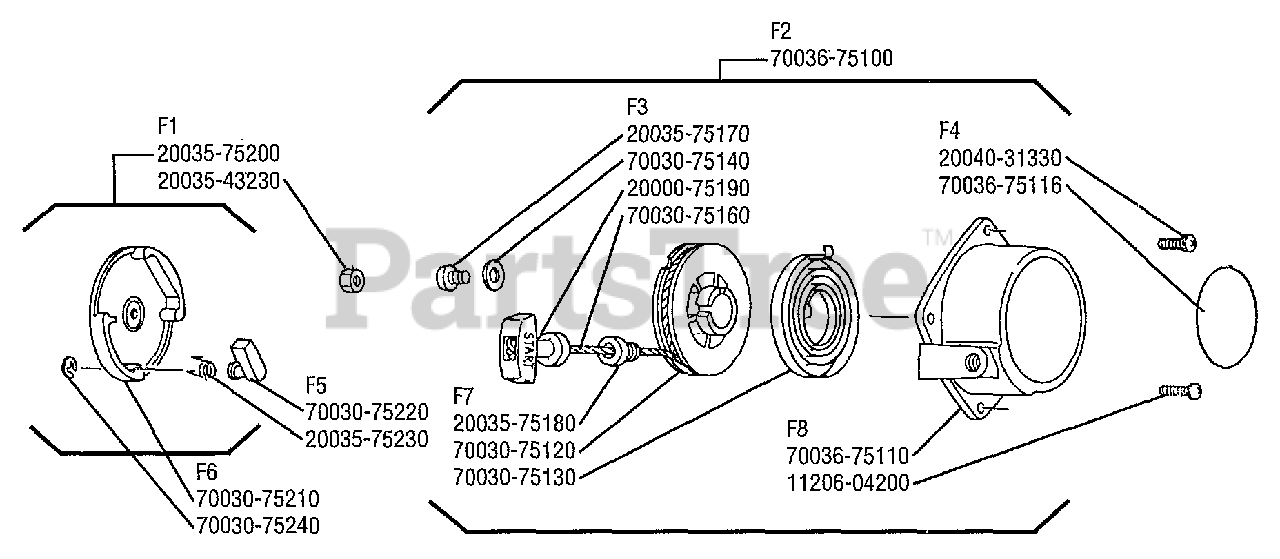

Starter Parts Diagram

  • Title

F3-20035-75170

Echo 20035-75170

SCREW
(Superseded to V253000560)

$3.99

$

In Stock, Qty 14

0

F3-70030-75140

Echo 70030-75140

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

F3-20000-75190

Echo 20000-75190

KNOB, STARTER
(Superseded to A511000180)

$5.49

$

Usually ships in 2-4 days

0

F3-70030-75160

Echo 70030-75160

ROPE
(Superseded to A509000300)

$6.49

$

Usually ships in 2-4 days

0

F8-70036-75110

Echo 70036-75110

STARTER CASE, USE 70036-75111
(Superseded to 70036-75111)

$29.99

$

Usually ships in 2-4 days

0

F8-11206-04200

Echo 11206-04200

SCREW
(Superseded to 9157404020)

$0.99

$

In Stock, Qty 10

0

F7-20035-75180

Echo 20035-75180

GUIDE, ROPE
(Superseded to A510000100)

$3.99

$

Usually ships in 2-4 days

0

F7-70030-75120

Echo 70030-75120

REEL
(Superseded to A506000330)

$8.99

$

In Stock, Qty 20+

0

F7-70030-75130

Echo 70030-75130

RECOIL SPRING
(Superseded to A504000100)

$9.99

$

In Stock, Qty 20+

0

F1-20035-75200

Echo 20035-75200

PULLEY ASSY
(Superseded to A052000430)

$10.99

$

In Stock, Qty 9

0

F1-20035-43230

Echo 20035-43230

NUT
(Superseded to V265000160)

$0.99

$

In Stock, only 2 left!

0

F5-70030-75220

Echo 70030-75220

RATCHET
(Superseded to A514000180)

$4.49

$

Usually ships in 2-4 days

0

F5-20035-75230

Echo 20035-75230

SPRING, RETURN
(Superseded to V452000470)

$3.99

$

In Stock, Qty 20+

0

F6-70030-75210

Echo 70030-75210

STARTER PULLEY
(Superseded to A520000180)

$11.99

$

Usually ships in 2-4 days

0

F6-70030-75240

Echo 70030-75240

E-RING
(Superseded to V583000190)

$0.99

$

In Stock, Qty 20+

0

F2-70036-75100

Echo 70036-75100

STARTER ASSY
(Superseded to A051002180)

$60.99

$

Usually ships in 2-4 days

0

F4-20040-31330

Echo 20040-31330

SCREW
(Superseded to V252000150)

$0.99

$

Usually ships in 2-4 days

0

F4-70036-75116

Echo 70036-75116

LABEL, NAME PLATE
(Superseded to 70117-75311)

$1.99

$

In Stock, only 3 left!

0
