T 231 - Shindaiwa String Trimmer Fan Cover Parts Diagram

String Trimmer

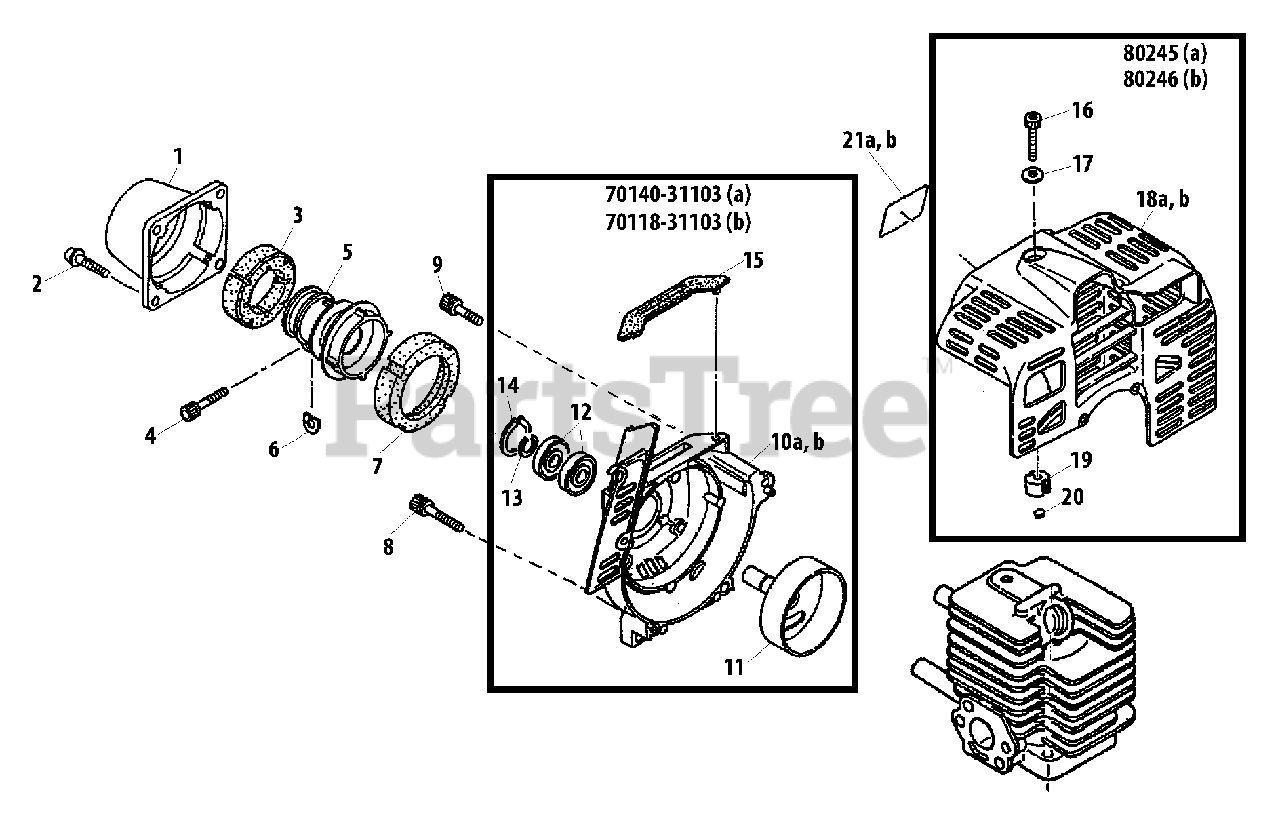

Fan Cover Parts Diagram

  • Title

1

Echo 70135-31470

CAP
(Superseded to A575000460)

$7.99

$

In Stock, only 2 left!

0

2

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 20+

0

3

Echo 20018-31420

CUSHION - FRONT
(Superseded to V420002640)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

5

Echo 20018-31410

CLAMP, MAIN PIPE
(Superseded to 20018-31411)

$18.99

$

Usually ships in 2-4 days

0

6

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

7

Echo 20018-31430

CUSHION - REAR
(Superseded to V420002650)

$4.49

$

In Stock, only 2 left!

0

8

Echo 11022-05350

SCREW - 5X35
(Superseded to V203000600)

$1.49

$

In Stock, Qty 16

0

9

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 20+

0

70140-31103A

Echo 70140-31103

FAN CASE ASSY
(Superseded to P021030350)

Note: (Red unit, T231)

$122.99

$

Usually ships in 2-4 days

0

70118-31103B

Echo 70118-31103

FAN CASE ASSY
(Superseded to P021030210)

Note: (Blue unit, T231B)

$87.99

$

Usually ships in 2-4 days

0

10A

Echo 70140-31113

CASE, FAN
(Superseded to A172001370)

$34.99

$

Usually ships in 2-4 days

0

10B

Echo 70118-31113

CASE, FAN

$32.99

$

Usually ships in 2-4 days

0

11

Echo 20087-31210

DRUM, CLUTCH
(Superseded to 20087-31211)

$23.99

$

In Stock, Qty 20+

0

12

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 15

0

13

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

14

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 10

0

15

Echo 70140-31130

CUSHION
(Superseded to V420002620)

$1.99

$

Usually ships in 2-4 days

0

80245A

Echo 80245

ENGINE COVER KIT - RED
(Superseded to 62023-32010)

Note: (Red unit, T231)

$29.99

$

Usually ships in 2-4 days

0

80246B

Echo 80246

ENGINE COVER KIT - BLUE
(Superseded to 62025-32010)

Note: (Blue unit, T231B)

$28.99

$

Usually ships in 2-4 days

0

16

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

17

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

18A

Echo 62023-32110

COVER, ENGINE - RED
(Superseded to A160001390)

Note: (Red unit, T231)

$

$

Not available

18B

Echo 62025-32110

COVER, ENGINE - BLUE
(Superseded to A160001380)

Note: (Blue unit, T231B)

$25.99

$

Usually ships in 2-4 days

0

19

Echo 20018-31260

INSULATOR
(Superseded to V353000430)

$1.99

$

In Stock, Qty 9

0

20

Echo 20018-31270

CLIP
(Superseded to V490000680)

$0.99

$

In Stock, Qty 9

0

21A

Echo 62023-91020

LABEL - MODEL
(Superseded to X504001500)

Note: (Red unit, T231)

$

$

Not available

21B

Echo 62025-91020

LABEL - MODEL
(Superseded to X540000000)

Note: (Blue unit, T231B)

$2.49

$

In Stock, only 1 left!

0
