TB 144 (21CA144R966) - Troy-Bilt Tiller (2009) General Assembly 2 08-09 to 12-10 Parts Diagram

Tiller

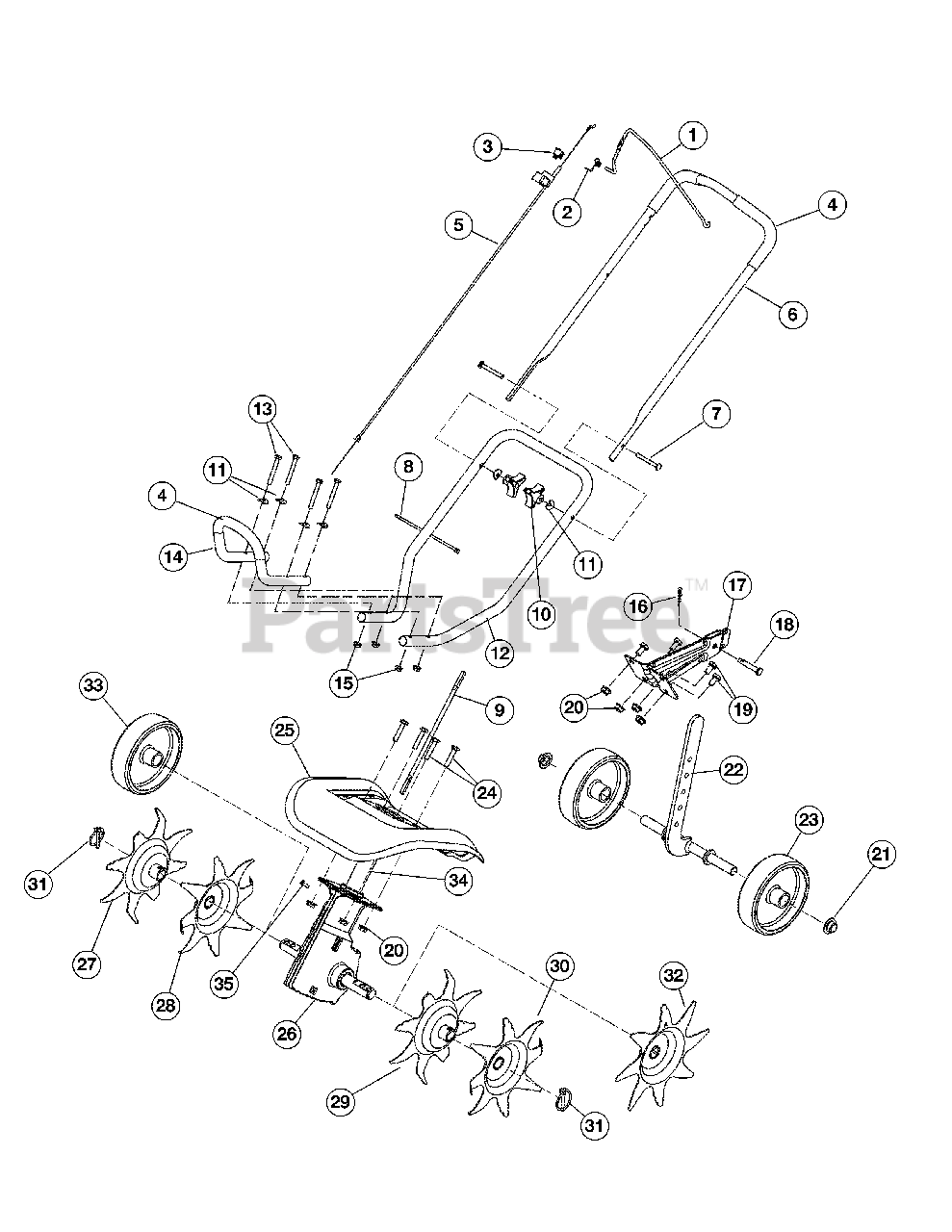

General Assembly 2 08-09 to 12-10 Parts Diagram

  • Title

1

Troy-Bilt 753-04042

Throttle Control

$

$

Not available

2

Troy-Bilt 753-05940

Torsion Spring

$3.99

$

In Stock, Qty 12

0

3

Troy-Bilt 791-182673

On/Off Switch

$10.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: Replaces 753-04044

$7.49

$

In Stock, Qty 6

0

5

Troy-Bilt 753-06050

Throttle Cable

$26.99

$

In Stock, Qty 7

0

6

Troy-Bilt 749-04080-0637

Upper Handle
(Superseded to 753-06319)

Note: Replaces 753-04498

$23.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 725-0157

Cable Tie

Note: Replaces 753-04049

$3.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 753-04499

Flex Shaft

$29.99

$

In Stock, Qty 6

0

10

Troy-Bilt 791-182677

Knob

$14.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 936-0451

Shoulder Washer
(Superseded to 736-0451)

Note: Replaces 753-04052

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 749-1295A-0637

Lower Handle

Note: Replaces 753-04053

$59.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-0395

Screw

Note: Replaces 753-04054

$4.99

$

In Stock, Qty 6

0

14

Troy-Bilt 753-04055

Front Handle

$36.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-3004A

Lock Nut

Note: Replaces 753-04056

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

Note: Replaces 753-04057

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 753-04058

Tailpiece Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 711-1017

Clevis Pin

Note: Replaces 753-04059

$7.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 710-3013

Cap Screw

Note: Replaces 753-04060

$4.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 912-3027

Lock Nut

Note: Replaces 753-04061

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 726-0299

Cap Push

Note: Replaces 753-04062

$8.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 753-04063

Wheel Support Bracket Assembly

$58.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 1917754

Wheel
(Superseded to 734-04261)

Note: Replaces 753-04501

$21.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 6109

Cap Screw

Note: Replaces 753-05001

$4.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-04502

Tine Shield

$

$

Not available

26

Troy-Bilt 753-06063

Gear Box Assembly

Note: uses reference 27,28,29,30

$133.99

$

In Stock, Qty 6

0

27

Troy-Bilt 753-05987

Tine

Note: (Left Inner, Right Outer)

$40.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 753-05986

Tine

Note: (Left Outer, Right Inner)

$40.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 753-05987

Tine

Note: (Left Inner, Right Outer)

$40.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 753-05986

Tine

Note: (Left Outer, Right Inner)

$40.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 753-06064

Click Pin

$5.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-05988

Edger Tine

$19.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 753-04068

Edger Wheel

$17.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 753-05469

Drive Shaft Housing

$36.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 910-0599

Sleeve Retaining Bolt
(Superseded to 710-0599)

Note: Replaces 791-180288

$4.49

$

In Stock, Qty 20+
