TB 2 MB (41BS2MEB866) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

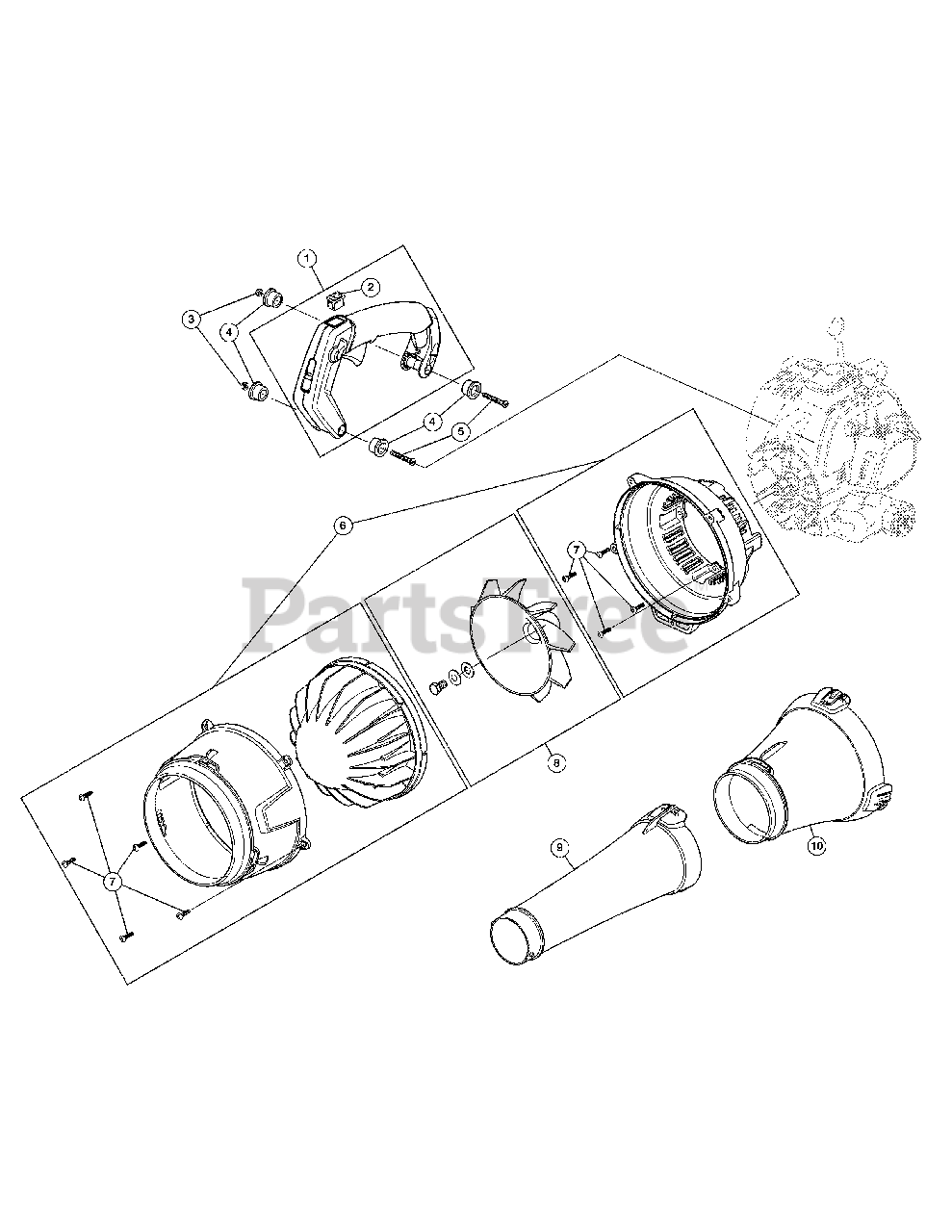

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08292

Handle Assembly

$26.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-0161

Nut (x2)

$4.49

$

In Stock, Qty 8

0

4

Troy-Bilt 753-08293

Isolator (x4)

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-04003

Screw (x2)
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 753-08296

Fan Housing Assembly (Incl. 7)

Note: Doesn't include the fan assembly item # 8 (753-08290)

$34.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04194

Screw (x9)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 753-08290

Fan Assembly

$

$

Not available

9

Troy-Bilt 931-09977A

Lower Tube

$5.99

$

In Stock, Qty 15

0

10

Troy-Bilt 931-09978

Upper Tube

$8.49

$

In Stock, Qty 20+

0

Troy-Bilt 49M2027P966

Corded Electric Starter Attachment

Note: (Optional Accessory)

$65.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Start Adaptor
(Superseded to 49MRBESY953)

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 49MESCBP966

Drill Bit Electric Start Adaptor
(Superseded to 49MASCBP966)

Note: (Optional Accessory)

$19.99

$

In Stock, Qty 12

0

Troy-Bilt OL-216-OM

Oil, 2-Cycle 16 OZ.

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 9

0
