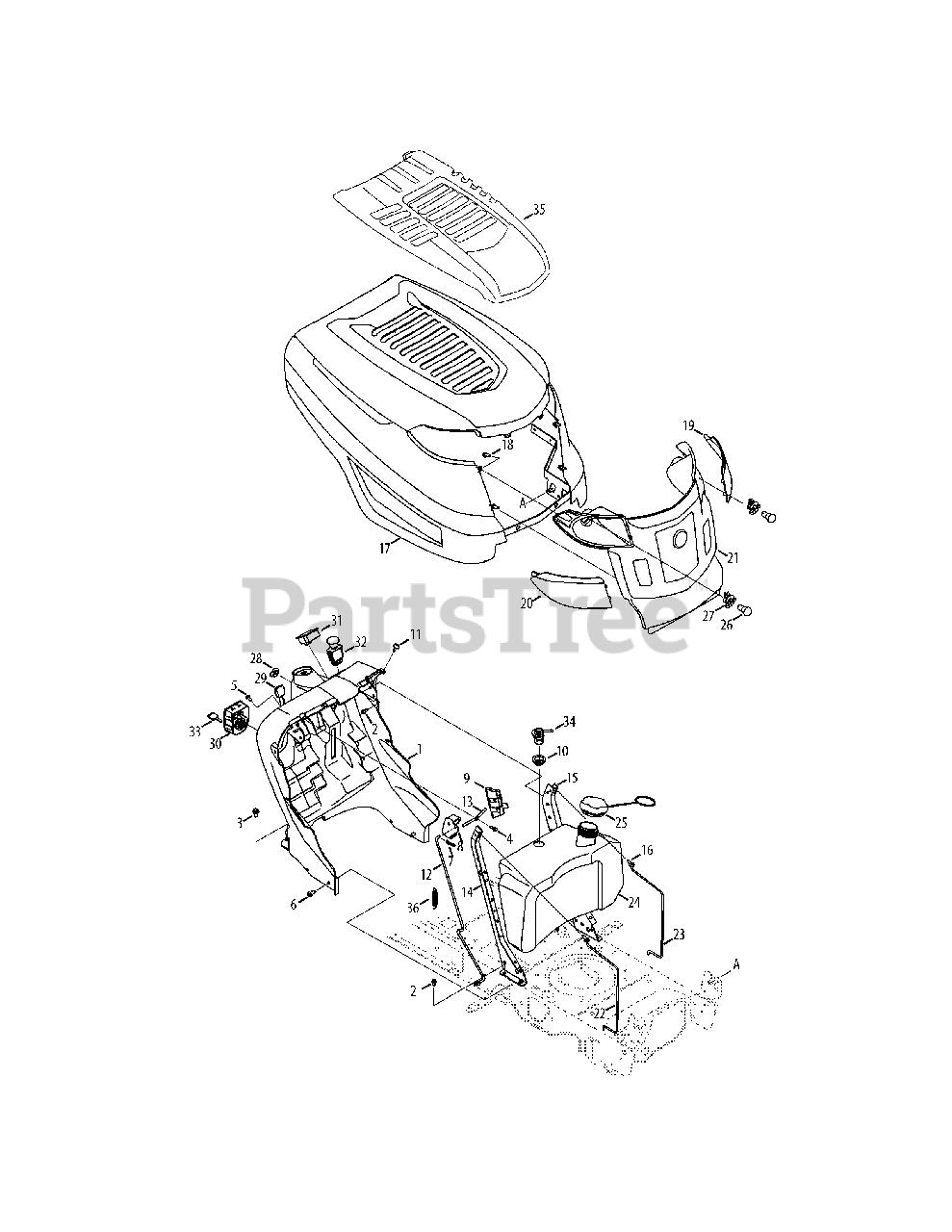

TB 2246 (13WX91KT066) - Troy-Bilt 46" Lawn Tractor (2011) Hood & Dash Parts Diagram

46" Lawn Tractor

Hood & Dash Parts Diagram

  • Title

1

Troy-Bilt 731-06166

Dash Assembly, Man. PTO

$

$

Not available

2

Troy-Bilt 710-0599

Taptite Screw ,1/4-20:0.500

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

Taptite Screw ,5/16-18:.750

$3.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15:0.750

$5.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1017

Screw, 1/4-14:0.625

$7.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1611B

Taptite Screw ,5/16-18:0.750

$6.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-06639

Dash Lever

$

$

Not available

9

Troy-Bilt 731-06642

Cruise Cover

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 735-04081

Grommet, Rubber, 23.0 ID

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 735-0271A

Bumper

$8.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 747-05008

Control Rod

$16.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 747-1196

Lever

$14.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-04285F-0637

RH Support Plate

$

$

Not available

15

Troy-Bilt 783-04323F-0637

LH Support Plate

$34.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-0642

Taptite Screw, 1/4-20:0.750

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 683-04441-0638

Hood Assembly
(Superseded to 683-04441A-0638)

$332.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-05108

Screw, 1/4 DIA:.750

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-06095

LH Lens

$11.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-06096

RH Lens

$11.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 631-04272

Grill

$65.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 747-04161

LH Tank Support Rod

$

$

Not available

23

Troy-Bilt 747-04946

RH Tank Support Rod

$

$

Not available

24

Troy-Bilt 951-04309

Fuel Tank, w/ rollover valve

$185.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 951-12182

Fuel Cap, EPA

$34.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 925-0963

Lamp

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 925-1649

Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 731-1999

Choke Plug

$9.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 946-1085A

Choke Cable

$28.99

$

In Stock, Qty 12

0

29

Troy-Bilt 746-04364

Throttle/Choke Cable

$44.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$108.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 925-04036C

Hour Meter
(Superseded to 925-06170B)

$65.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 925-1745A

Key

$15.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 751-12118

Valve, Rollover Grommet

$33.99

$

In Stock, Qty 12

0

35

Troy-Bilt 731-06194A

Hood Scoop
(Superseded to 731-06194B)

$52.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 732-04580

Extension Spring, .500 DIA x 2.733 LG

$5.99

$

In Stock, only 1 left!
