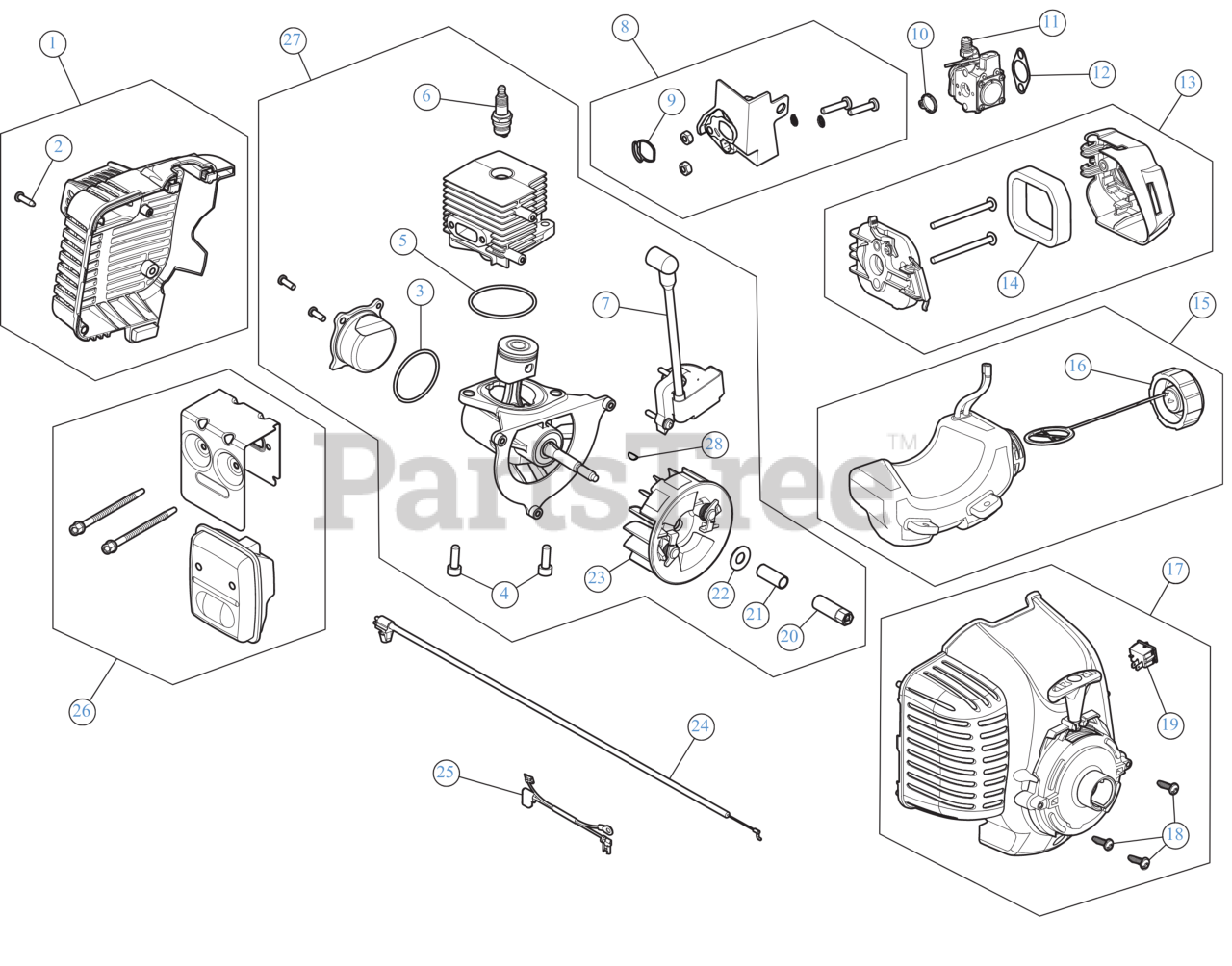

TB 25 CB (41AD25CB866) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-09084

HOUSING ASSEMBLY RR

Note: (Incl. 2)

$4.99

$

In Stock, Qty 8

0

2

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-09086

O-RING SEAL CRANKCASE

$2.99

$

In Stock, Qty 5

0

4

Troy-Bilt 710-06241

SCREW 5/16-18x3/4 T40

$2.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-09085

O-RING SEAL CYLINDER

$2.99

$

In Stock, Qty 11

0

6

Troy-Bilt 794-00097

SPARK PLUG 14MM

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 841-012984S

RFI MODULE ASSEMBLY

Note: (Incl. 25)

$19.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-09105

INTAKE ASSEMBLY

Note: (Incl. 9)

$4.99

$

In Stock, Qty 9

0

9

Troy-Bilt 721-04973

INSL/CYL SEAL

$2.99

$

In Stock, Qty 11

0

10

Troy-Bilt 721-04972

CARBURETOR SEAL

$1.49

$

In Stock, Qty 17

0

11

Troy-Bilt 753-06190

CARBURETOR

$35.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 753-11116

AIR CLEANER COVER

Note: (Incl. 14)

$8.99

$

In Stock, Qty 9

0

14

Troy-Bilt 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-09345

FUEL TANK

Note: (Incl. 16)

$15.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 753-06857

FUEL CAP

$7.99

$

In Stock, Qty 16

0

17

Troy-Bilt 841-014023S

STARTER HOUSING

Note: (Incl. 18 & 19)

$26.99

$

In Stock, Qty 5

0

18

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 12

0

19

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 711-07481-1

POWER SHAFT ADAPTER

$2.99

$

In Stock, Qty 12

0

21

Troy-Bilt 753-09087

SPACER CRANKSHAFT

$2.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 5

0

23

Troy-Bilt 753-09125

FLYWHEEL ASSEMBLY

$15.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 746-05451

THROTTLE CABLE

$3.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 794-00184

SHORT WIRE LEAD

$2.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-09144

MUFFLER ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-11115

SHORT BLOCK

Note: (Incl. Crankcase, Cylinder, Piston,3 - 9, 20 - 23 & 28)

$60.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

Usually ships in 3-6 days

0
