TB 25 LS (24BC7FM1766) - Troy-Bilt Log Splitter (2017) Tongue Parts Diagram

Log Splitter

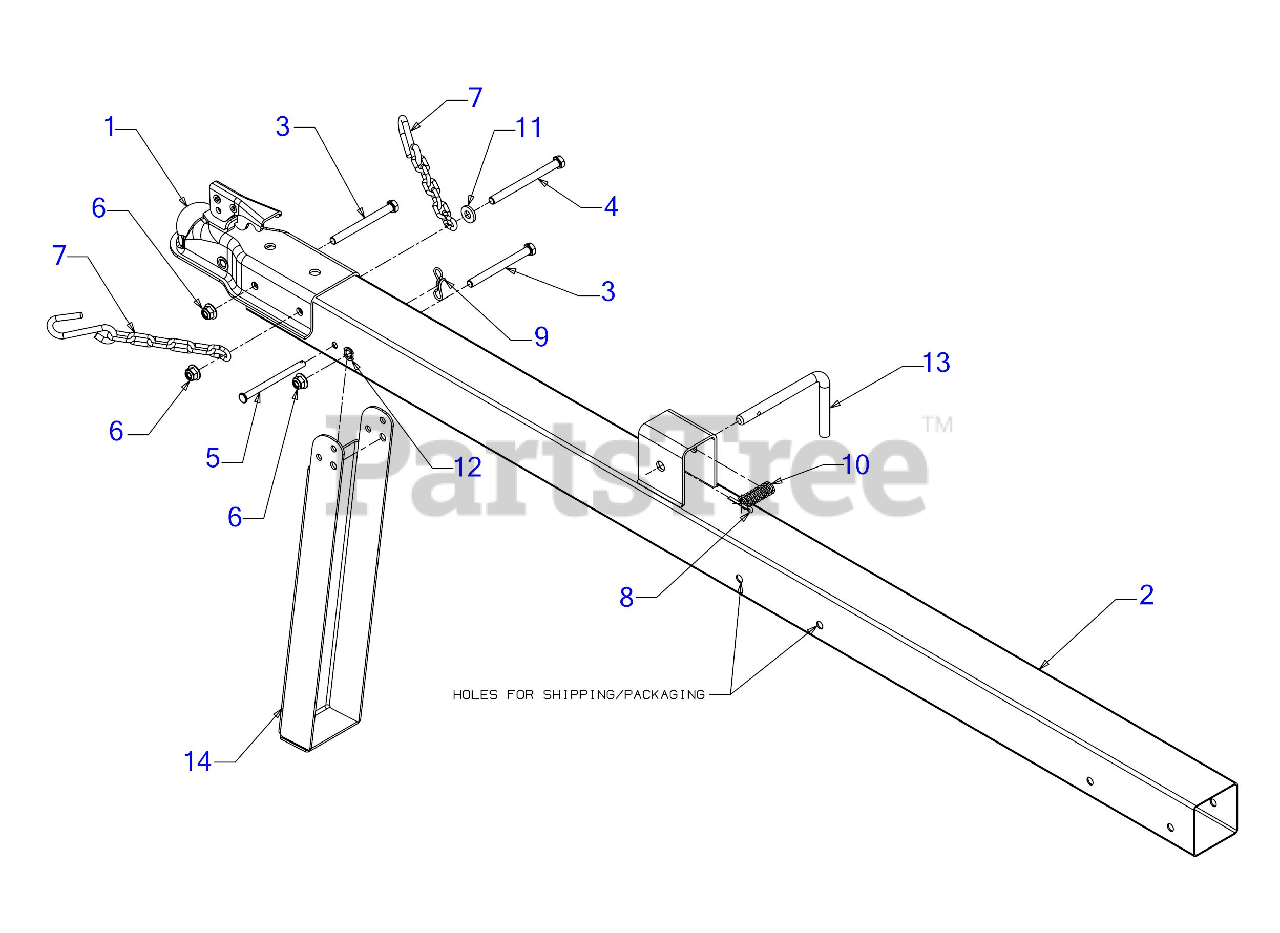

Tongue Parts Diagram

  • Title

1

MTD 981-05075

HITCH COUPLING ASSEMBLY

$63.99

$

Usually ships in 3-6 days

0

2

MTD 681-05076

TONGUE TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 681-05076-0638

TONGUE TUBE (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

Troy-Bilt 710-0411

HEX SCREW 3/8-16 x 4.00

$8.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0693

SCREW 3/8 x 4.5 N.C GR. 5

$14.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 711-05068A

CLEVIS PIN 5/16 x 4.135

$7.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 713-0433A

LOGSPLITTER TOW CHAIN

$44.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 932-3127

COMPRESSION SPRING

$4.49

$

In Stock, Qty 15

0

11

Troy-Bilt 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

12

Troy-Bilt 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 747-1261

LATCH ROD

$39.99

$

Usually ships in 3-6 days

0

14

MTD 781-05186

JACK STAND

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 781-05186-0638

JACK STAND (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
