TB 26 CO (41AD26OG966) - Troy-Bilt String Trimmer Boom and Trimmer Parts Diagram

String Trimmer

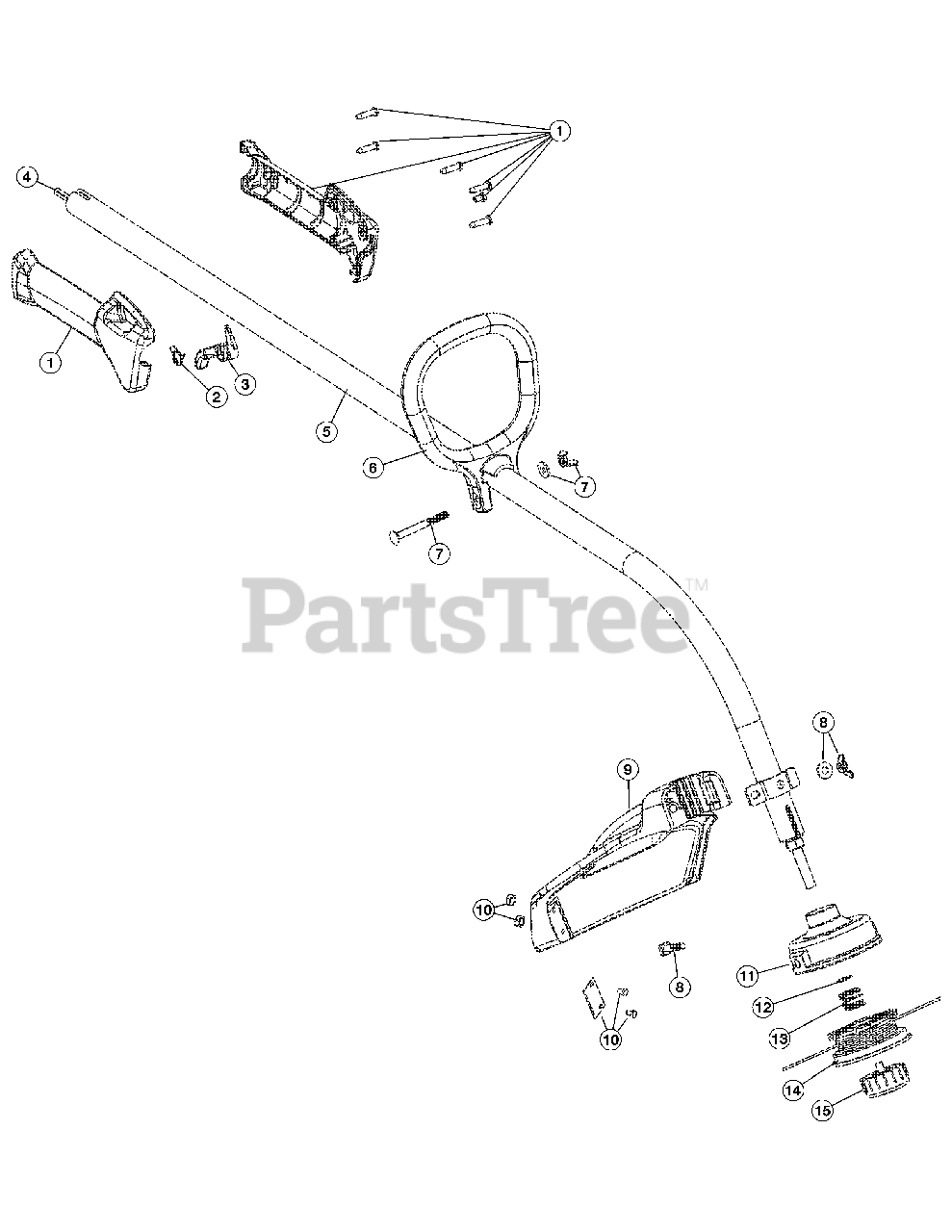

Boom and Trimmer Parts Diagram

  • Title

1

MTD 753-04114

Throttle Housing Assembly (includes 2 & 3)

$

$

Not available

2

Troy-Bilt 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-04115

Throttle Trigger

$10.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-05315

Flexible Drive Shaft

$

$

Not available

5

MTD 753-05190

Drive Shaft Housing (includes 4 & 12)

$

$

Not available

6

Troy-Bilt 791-153064

D-Handle Assembly (includes 7)

$

$

Not available

7

Troy-Bilt 791-181587

D-Handle Hardware

$19.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 753-04283

Guard (includes 10)

$50.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-04284

Outer Reel (includes 12)

$28.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-1155

Inner Reel (line not included)

$22.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 791-153066B

Bump Knob

$13.99

$

In Stock, Qty 20+

0
