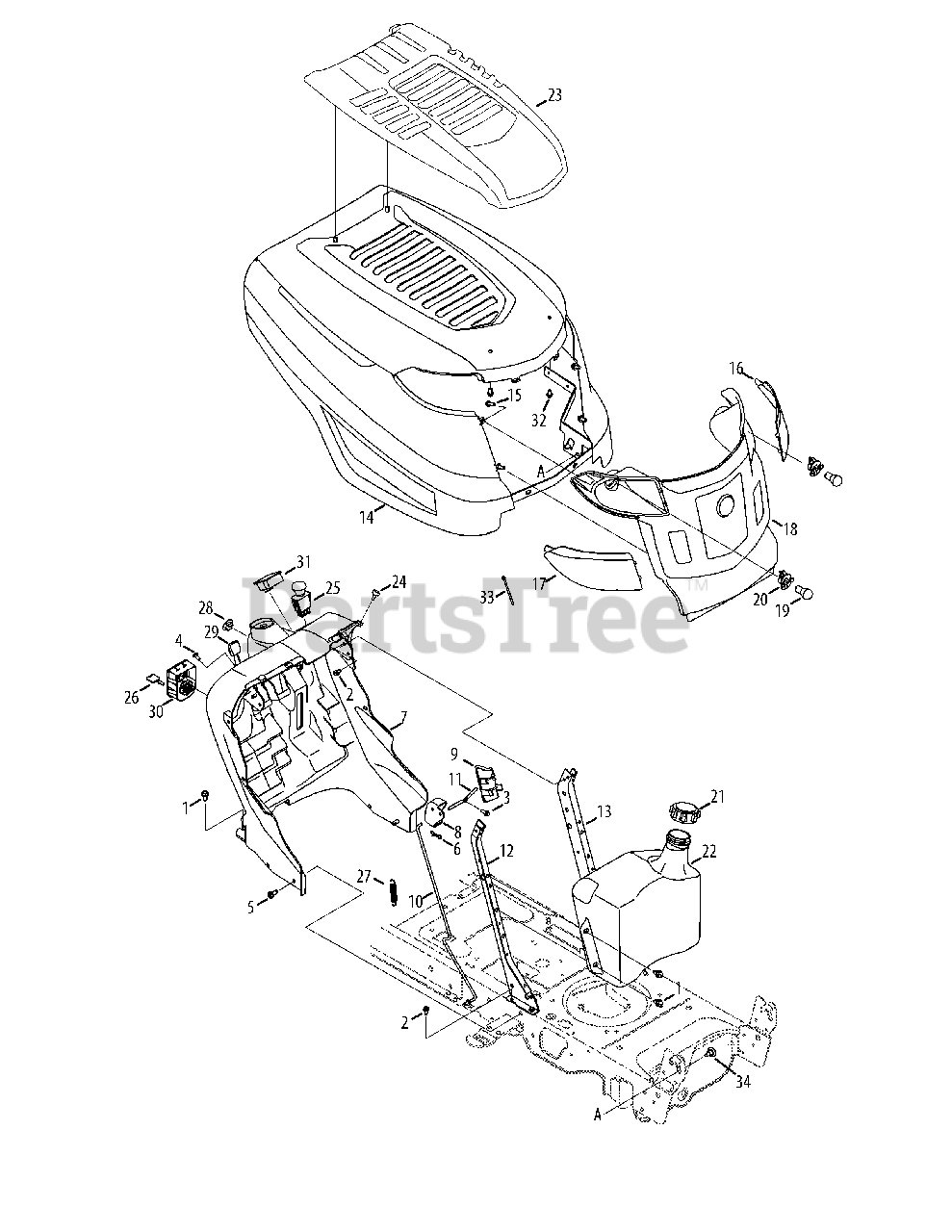

TB 2654 (14AK94KK066) - Troy-Bilt 54" Garden Tractor (2012) Hood & Dash Parts Diagram

54" Garden Tractor

Hood & Dash Parts Diagram

  • Title

1

Troy-Bilt 710-04484

Taptite Screw,5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Taptite Screw,1/4-20:0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15:0.750

$6.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1017

Screw, 1/4-14:0.625

$8.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1611B

Taptite Screw, 5/16-18:0.750

$6.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 931-04664

Dash Panel

$

$

Not available

8

Troy-Bilt 731-06639

Dash Lever

$

$

Not available

9

Troy-Bilt 731-06642

Cruise Cover

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 747-05008

Control Rod

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 747-1196

Lever

$15.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-04285F-0637

RH Support Plate

$

$

Not available

13

Troy-Bilt 783-04323F-0637

LH Support Plate

$34.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 683-04774-0638

Hood Assembly

$344.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-05108

Screw, 1/4 DIA:.750

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-06095

LH Lens

$12.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06096

RH Lens

$12.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 631-04272

Grill

$70.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 925-0963

Lamp

$7.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 951-12179A

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, Qty 7

0

22

Troy-Bilt 951-04308

Fuel Tank

$186.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-06194B

Hood Scoop

$56.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 735-0271A

Bumper

$8.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 732-04580

Extension Spring, .500 DIA x 2.733 LG

$6.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 946-04542

Throttle/Choke Cable

$47.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 925-04036C

Hour Meter
(Superseded to 925-06170B)

$70.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-04187

Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

33

Troy-Bilt 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 738-04091A

Shoulder Screw, .43 X .29:5/16-18
