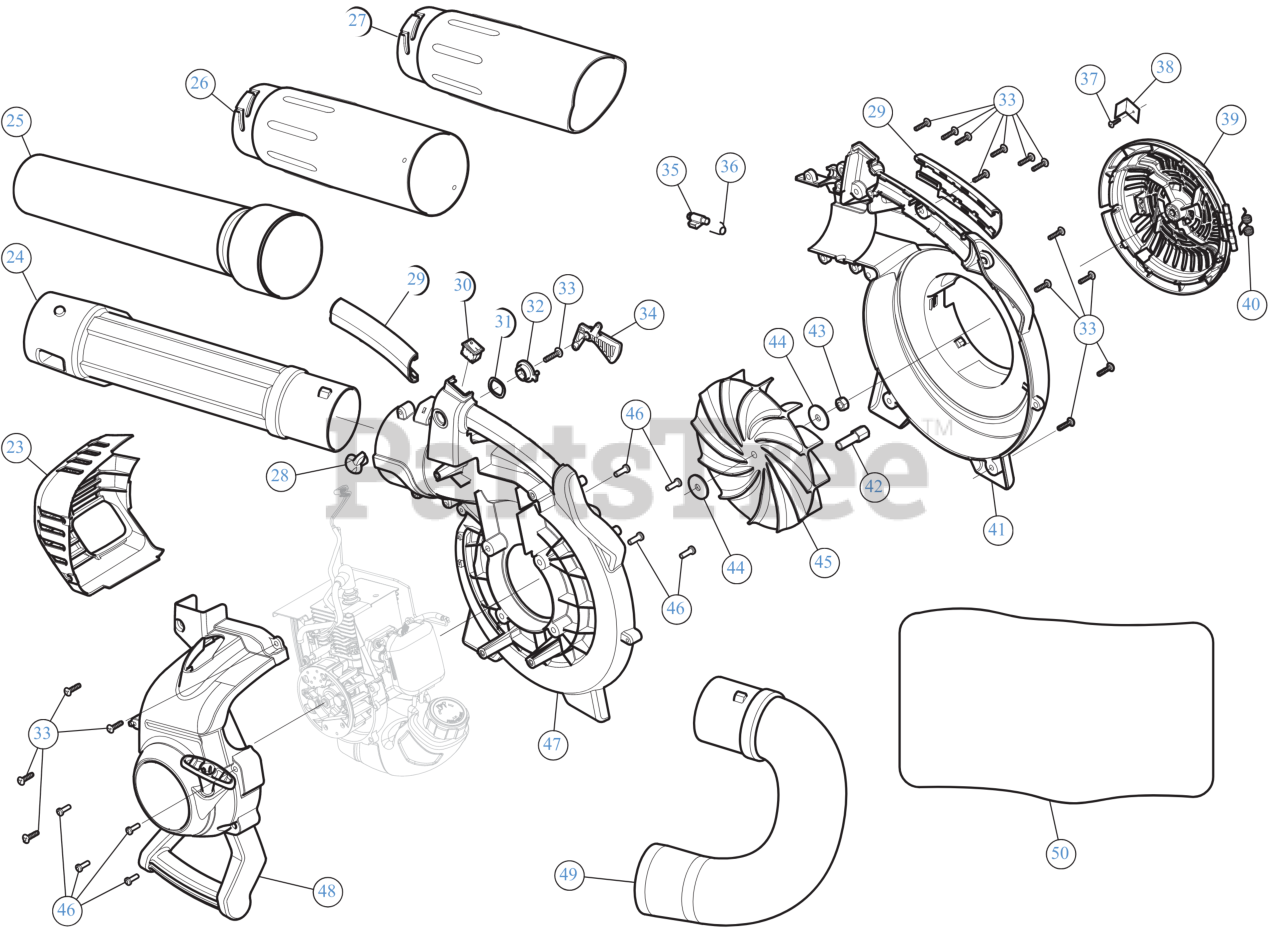

TB 272 V (41AR272V766) - Troy-Bilt Blower Vacuum General Assembly Parts Diagram

Blower Vacuum

General Assembly Parts Diagram

  • Title

23

Troy-Bilt 753-06694

MUFFLER COVER

Note: (Incl. 33)

$

$

Not available

24

Troy-Bilt 753-05936

UPPER TUBE

$19.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 753-05937

LOWER TUBE

$18.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-06660

UPPER VAC TUBE SCBLO

$13.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 791-180467

TUBE, LOWER VACUUM (ELEC BLWR-

$38.99

$

In Stock, Qty 5

0

28

Troy-Bilt 753-05932

TRIGGER LOCK OTR

$2.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-05919

ANDLE GRIP ASSEMBLY

$6.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-05925

WASHER WAVEY
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 753-05924

TRIGGER LOCK INR

$2.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 753-05930

THROTTLE TRIGGER

$

$

Not available

35

Troy-Bilt 753-05926

LATCH TUBE

$2.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 753-05939

SPRING LATCH

$2.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 1755

SCREW-10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 753-06696

DOOR LOCK SC

$2.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 753-06678

INTAKE COVER

Note: (Incl. 37 & 38)

$3.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 753-05918

SPRING

$2.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-06679

IMPELLER HOUSING OTR

$20.99

$

In Stock, only 4 left!

0

42

Troy-Bilt 753-06700

ADAPTER STARTER

$5.49

$

In Stock, Qty 8

0

43

Troy-Bilt 912-0237

HEX NUT CENTER
(Superseded to 712-0237)

$

$

Not available

44

Troy-Bilt 753-05928

WASHER FLAT

$2.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 753-05929

IMPELLER

$13.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 753-06693

IMPELLER HOUSING INR

$17.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 753-06695

STARTER ASSEMBLY

Note: (Incl. 33 & 46)

$36.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 753-06658

ELBOW TUBE

$14.99

$

In Stock, only 2 left!

0

50

Troy-Bilt 753-06659

VAC BAG SCBLO

$17.99

$

Usually ships in 3-6 days

0
