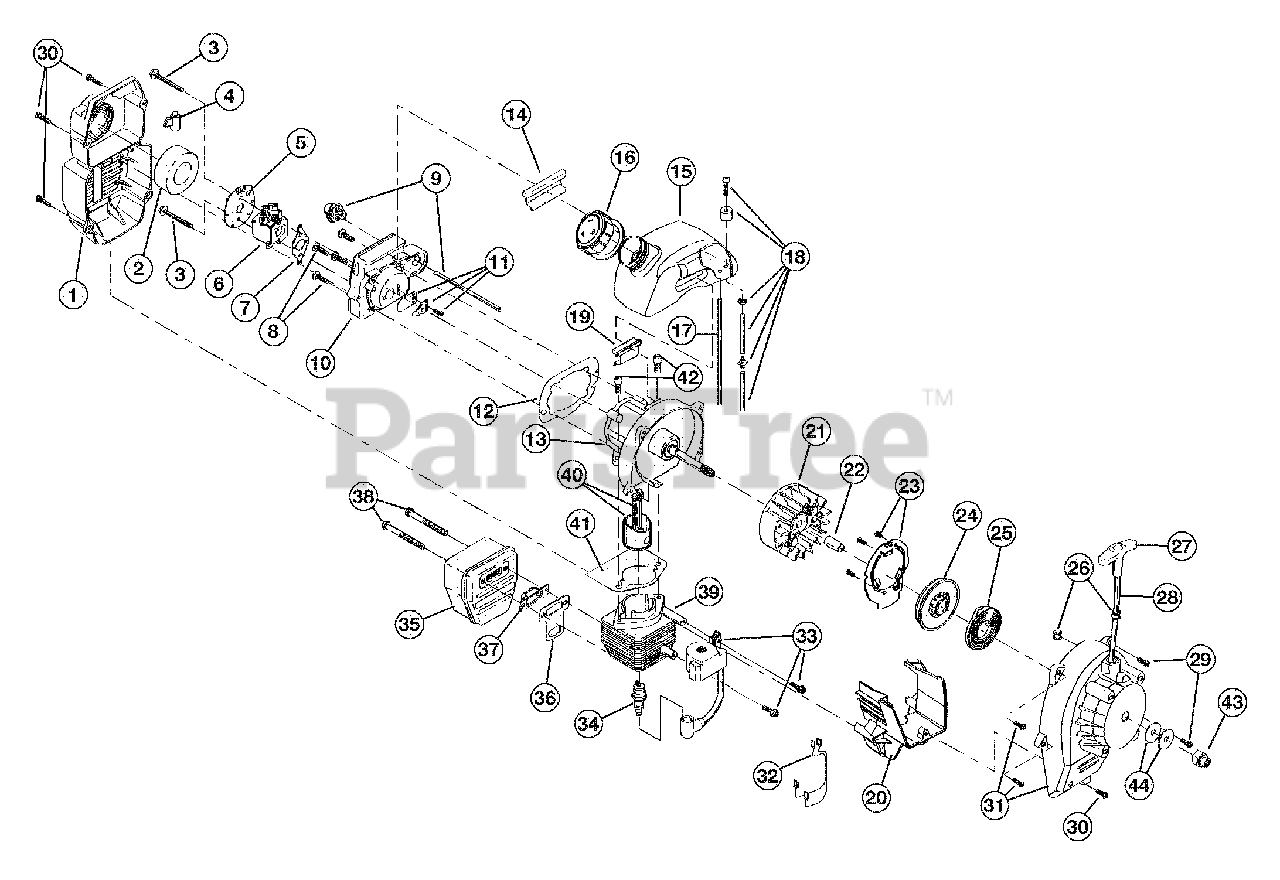

TB 320 BV (41AS320G066) - Troy-Bilt Blower Vacuum Engine Parts Parts Diagram

Blower Vacuum

Engine Parts Parts Diagram

  • Title

1

MTD 753-04317

Muffler Cover Assembly

Note: (includes 2 & 30)

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, Qty 8

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

Troy-Bilt 753-04227

Choke Knob

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-04331

Carburetor Assembly
(Superseded to 753-04338)

Note: (includes 7 & 18)

$96.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 20+

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 753-1196

Carb Mount Assembly

Note: (includes 8 & 11)

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 753-04747

Crankcase Service Assembly

Note: (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04310

Fuel Tank Assembly

Note: (includes 16-18)

$

$

Not available

16

Troy-Bilt 753-04084

Fuel Cap Assembly

$22.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 20+

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 753-04409

Shroud Extension
(Superseded to 753-05091)

Note: (includes 30)

$19.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 753-04748

Spacer
(Superseded to 750-04260)

$9.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-04705

Pulley Retainer Assembly

$

$

Not available

24

Troy-Bilt 753-04459

Recoil Pulley Assembly
(Superseded to 753-04823)

Note: (includes 25 & 28)

$33.99

$

In Stock, Qty 9

0

25

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 6

0

26

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, Qty 17

0

31

MTD 753-04749

Starter Housing Assembly

Note: (includes 23-30)

$

$

Not available

32

Troy-Bilt 791-182402

Wire Lead Assembly

$12.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, Qty 7

0

35

Troy-Bilt 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 36-38)

$112.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

37

Troy-Bilt 791-182747

Spark Arrestor

$

$

Not available

38

Troy-Bilt 791-147575

Muffler Mounting Bolt

$

$

Not available

39

Troy-Bilt 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 41 & 42)

$83.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 753-04367

Piston and Rod Assembly

$

$

Not available

41

Troy-Bilt 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 791-181524

Crankshaft Extension

$

$

Not available

44

Troy-Bilt 791-182368

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

Troy-Bilt 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04750

Short Block Assembly
(Superseded to 753-04924)

Note: (includes 8, 13, 34, 39-42); Not Shown

$

$

Not available
