TB 4 BP (41AR4BPG966) - Troy-Bilt Backpack Blower Engine Parts Diagram

Backpack Blower

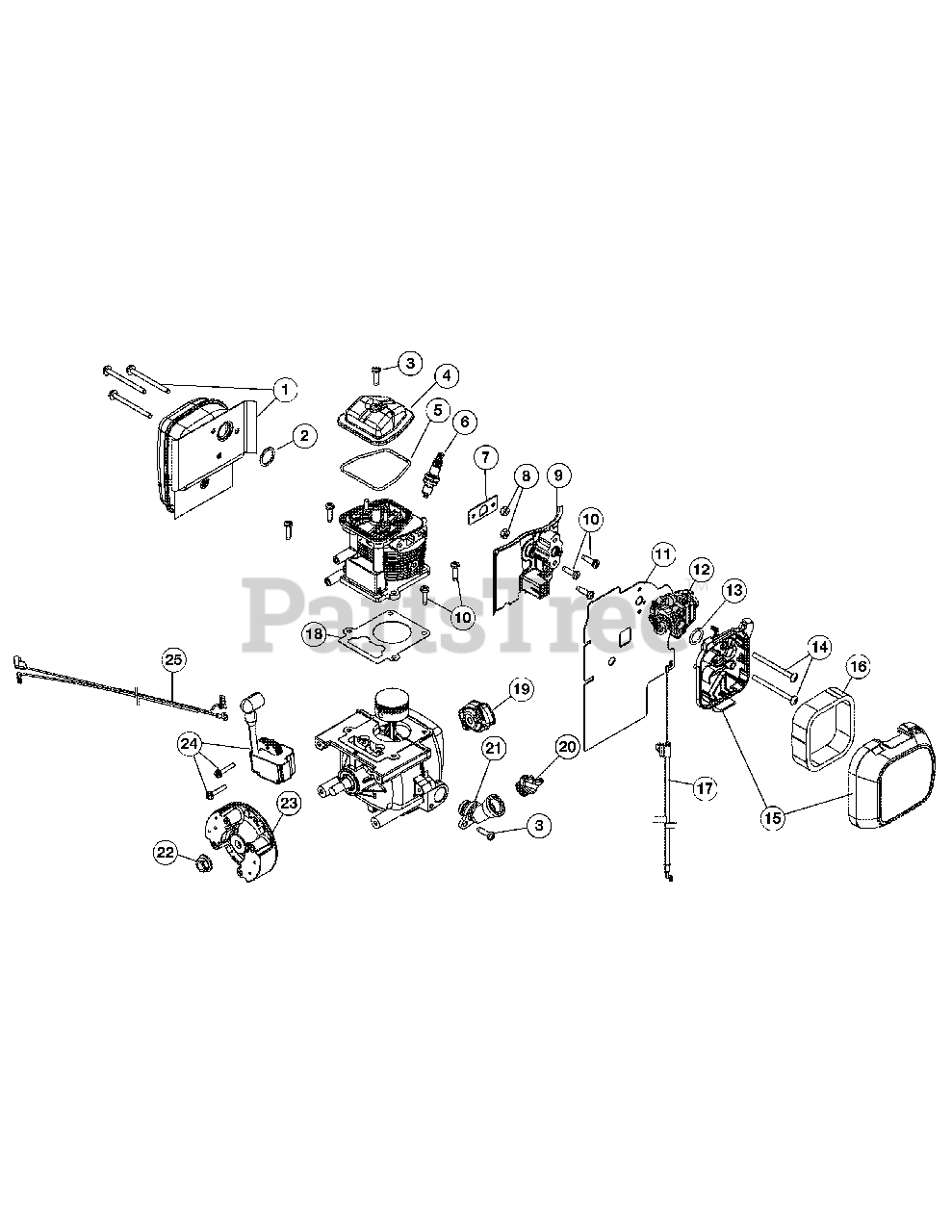

Engine Parts Diagram

  • Title

1

Troy-Bilt 753-05669

Muffler Assembly (includes 2)

$40.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05670

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05377

Screw
(Superseded to 710-04604)

$3.99

$

In Stock, Qty 12

0

4

Troy-Bilt 753-05671

Rocker Cover

$12.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05672

Rocker Cover O-Ring

$9.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 753-05255

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 753-05673

Insulator Gasket

$9.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05248

Nut
(Superseded to 712-04099)

$6.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-05674

Insulator

$14.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

11

Troy-Bilt 753-05675

Carburetor Gasket

$16.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-05676

Carburetor
(Superseded to 753-05676A)

$29.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-05253

Screw
(Superseded to 710-04517)

$4.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 753-05711

Air Cleaner Assembly (includes 16)

$33.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 753-05677

Air Filter

$4.49

$

In Stock, Qty 12

0

17

MTD 753-05679

Throttle Cable

$

$

Not available

18

Troy-Bilt 753-05681

Cylinder Gasket

$9.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05635

Pawl Assembly

$

$

Not available

20

Troy-Bilt 753-05400

Oil Plug
(Superseded to 753-05408)

$27.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-05682

Oil Fill Tube (includes 3)

$9.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-05687

Nut
(Superseded to 712-04137)

$6.49

$

In Stock, only 3 left!

0

23

Troy-Bilt 753-05688

Flywheel Asssembly

$42.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 753-05243

Module Assembly
(Superseded to 753-05301)

$105.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-05690

Lead Wire

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05694

Short Block Assembly

Note: Not shown

$190.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05696

Spark Arrestor
(Superseded to 753-05297)

Note: Not shown

$28.99

$

Usually ships in 3-6 days

0
