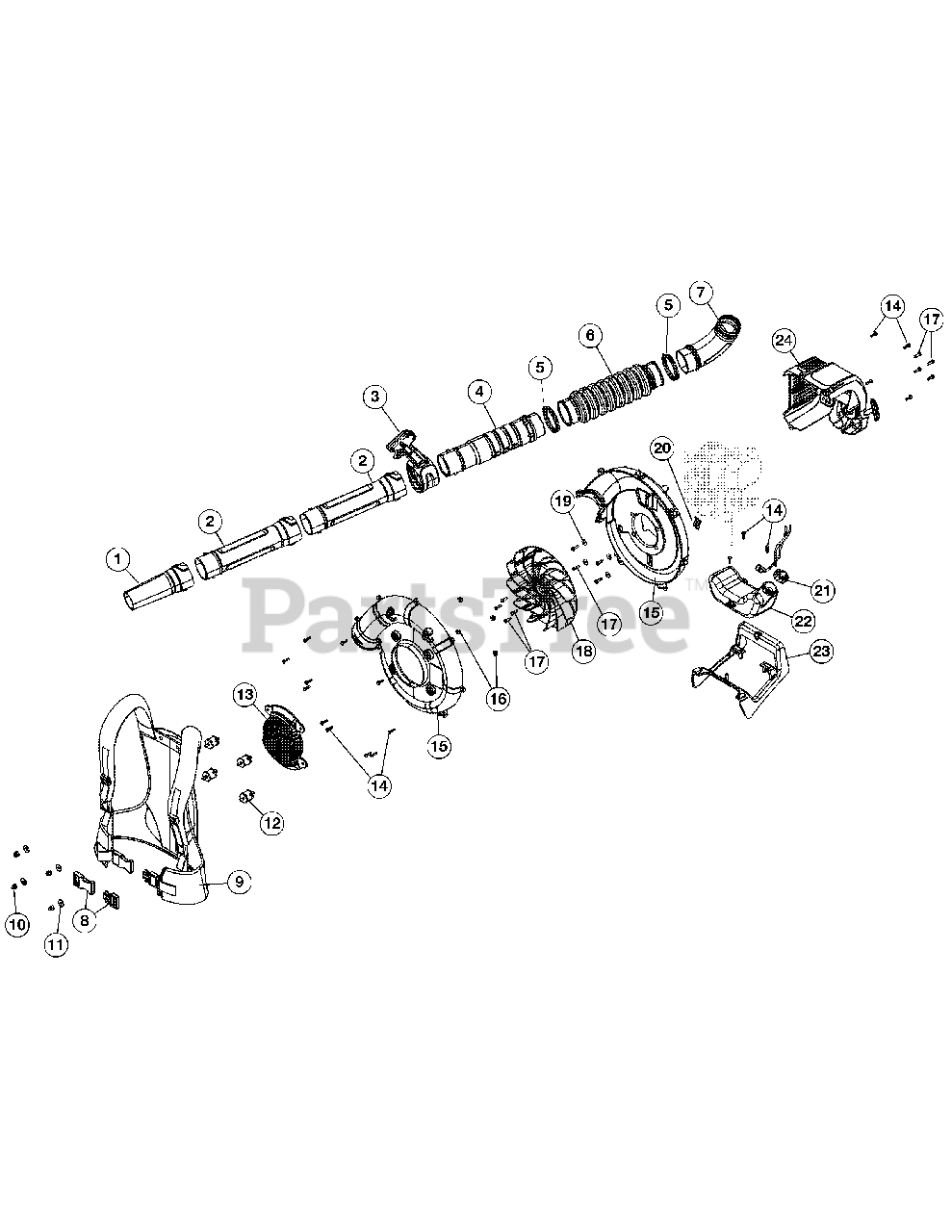

TB 4 BP (41AR4BPG966) - Troy-Bilt Backpack Blower General Assembly Parts Diagram

Backpack Blower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05637

Nozzle
(Superseded to 753-06000)

$12.99

$

In Stock, Qty 7

0

2

MTD 753-05638

Lower Blower Tube
(Superseded to 753-05993)

$

$

Not available

3

MTD 753-05652

Throttle Grip Assembly

$

$

Not available

4

MTD 753-05639

Upper Blower Tube
(Superseded to 753-05993)

$

$

Not available

5

Troy-Bilt 753-05640

Clamp
(Superseded to 726-04080)

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05641

Flex Tube

$29.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05642

Elbow Tube

$

$

Not available

8

Troy-Bilt 731-06191

Harness Clip

$13.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05656

Harness Only
(Superseded to 753-05645)

$100.99

$

In Stock, Qty 5

0

9

Troy-Bilt 753-06340

Hip Belt for Harness

$17.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-05647

Nut
(Superseded to 912-0442)

$

$

Not available

11

Troy-Bilt 753-05646

Spacer
(Superseded to 750-04929)

$4.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 753-05648

Insulator Mount

$13.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05649

Intake Cover

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-04595

Screw
(Superseded to 710-04194)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 753-05658

Impeller Housing Assembly

$73.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-180050

Nut
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

18

Troy-Bilt 753-05657

Impeller (includes 17)
(Superseded to 753-05989)

$26.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

20

Troy-Bilt 753-05661

Throttle Retaining Clip
(Superseded to 731-06074)

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05289

Fuel Cap

$21.99

$

In Stock, Qty 10

0

22

Troy-Bilt 753-05662

Fuel Tank Assembly (includes 21)

$

$

Not available

23

Troy-Bilt 753-05663

Stand

$16.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 753-05660

Engine Cover Assembly

$32.99

$

In Stock, only 2 left!

0
