TB 42 (13A277KS066) - Troy-Bilt 42" Lawn Tractor (2015) Engine Accessories Parts Diagram

42" Lawn Tractor

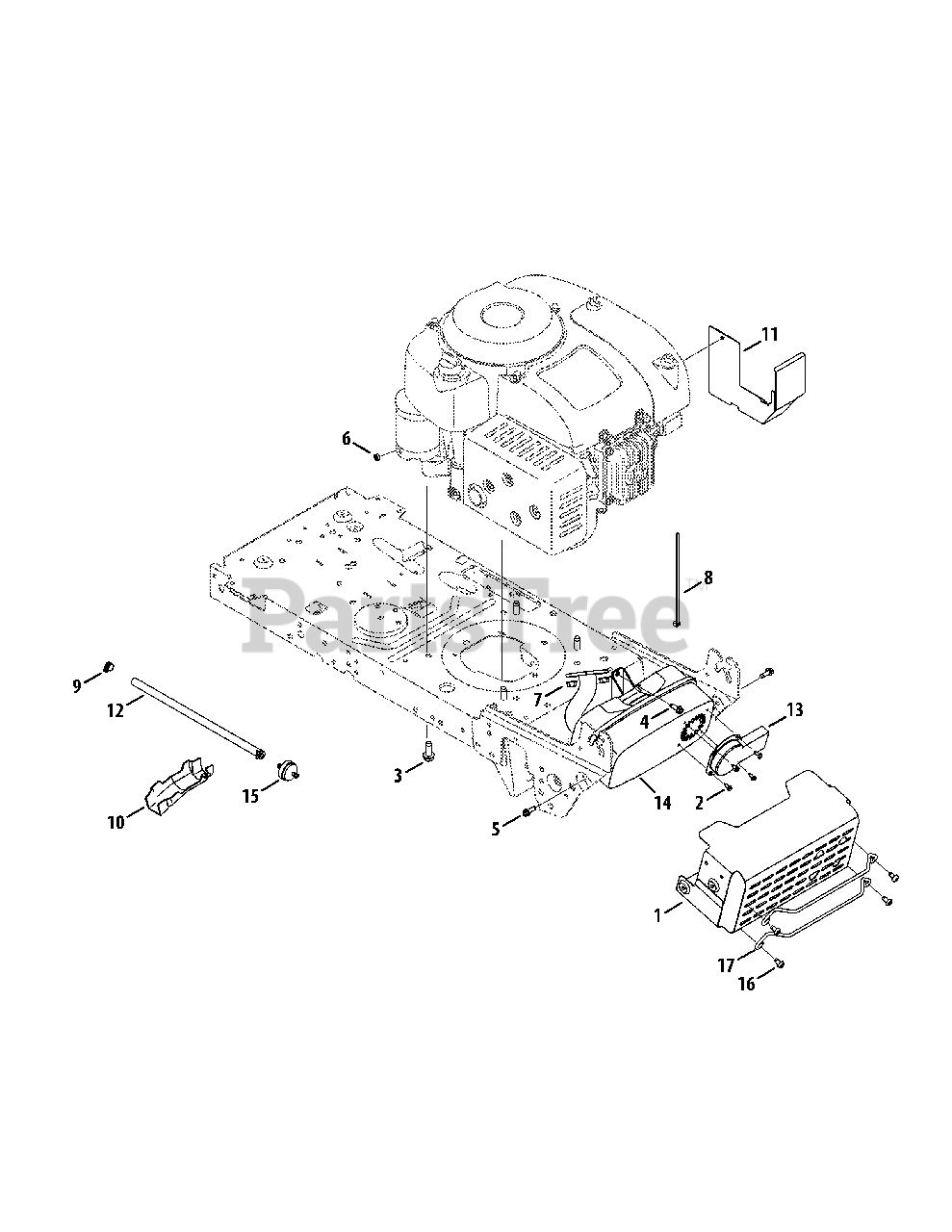

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 683-04549A-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04683C

Screw, 3/8-16 x 1.0

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 912-0691

Nut, M6-1, Hexlock
(Superseded to 712-0691)

$

$

Not available

7

Troy-Bilt 712-3086

Flange Nut, M8-1.25

$4.49

$

In Stock, Qty 14

0

8

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-05628

Oil Drain Sleeve

$8.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-08122

Deflector Bracket

$19.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 751-10349-16

Fuel Hose, Low Permeation

$19.99

$

In Stock, Qty 13

0

13

Troy-Bilt 751-11053A

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 12

0

14

Troy-Bilt 751-14527

Muffler
(Superseded to 951-14527)

$123.99

$

In Stock, only 2 left!

0

15

Troy-Bilt BS-298090S

Fuel Filter

$

$

Not available

16

Troy-Bilt 710-05070A

Pan Torx Screw 1/4

$6.99

$

In Stock, Qty 12

0

17

Troy-Bilt 747-06404A-0637

Muffler Guard Rod

$7.49

$

Usually ships in 3-6 days

0
