TB 50 (41ACT50G711) - Troy-Bilt String Trimmer, Electric Boom and Trimmer Parts Diagram

String Trimmer, Electric

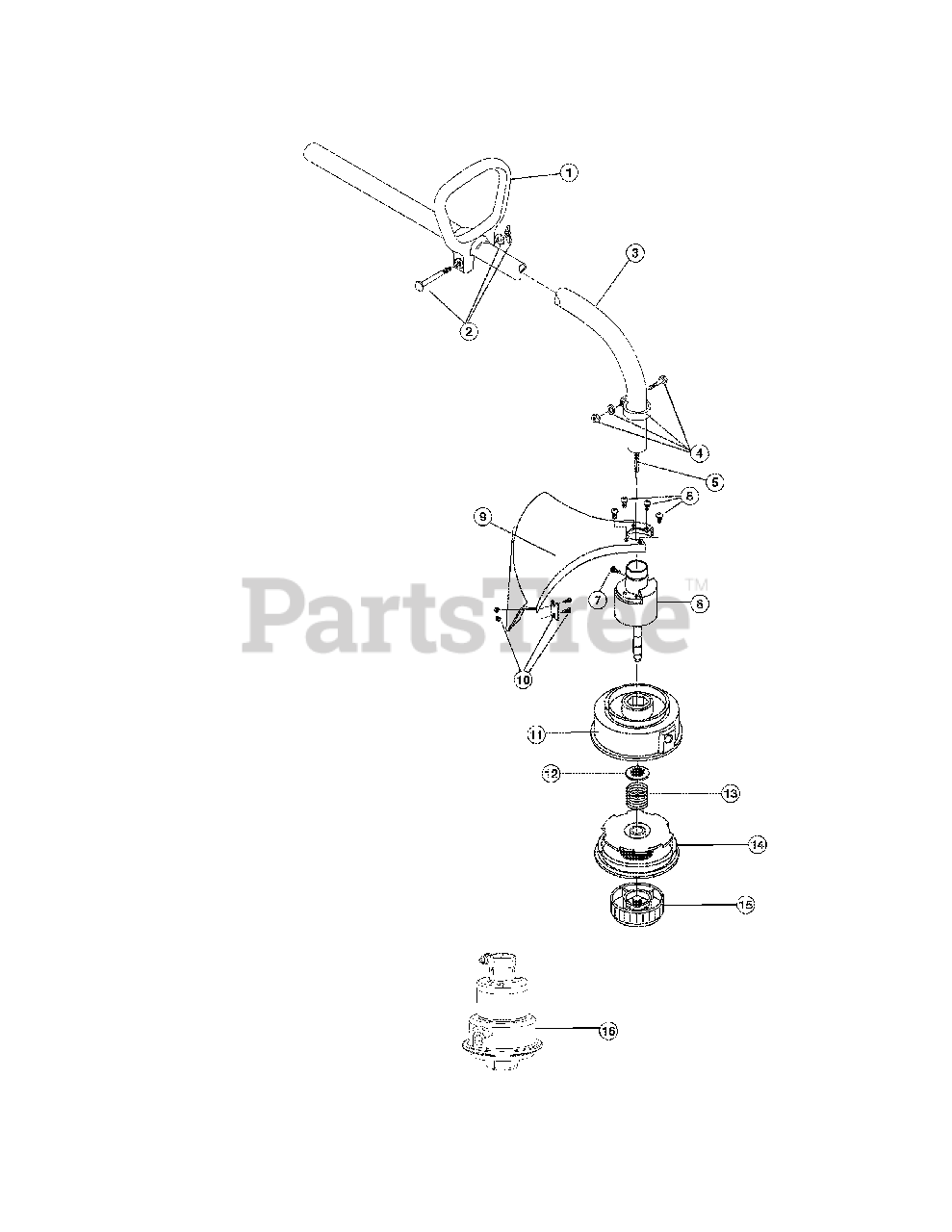

Boom and Trimmer Parts Diagram

  • Title

1

Troy-Bilt 791-153064

D-Handle Assembly

$

$

Not available

2

Troy-Bilt 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-180560

Drive Shaft Housing Assembly

$

$

Not available

4

Troy-Bilt 791-153597

Lower Clamp Assembly (includes item 7)

$15.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-180561

Flexible Drive Shaft

$

$

Not available

6

Troy-Bilt 791-181784

Bushing Housing Assembly w/shaft

$

$

Not available

7

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

8

Troy-Bilt 791-180531

Guard Mounting Screw Assembly
(Superseded to 791-181858)

$

$

Not available

9

Troy-Bilt 791-683274

Guard and Blade Assembly

$36.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

11

Troy-Bilt 791-153619

Outer Spool Assembly (includes 12)

$27.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 791-153066B

Bump Head Knob

$13.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 791-182172

Complete Cutting Head Assembly

$

$

Not available

Troy-Bilt 791-160425

Inner Reel W/.060 Line (NOT SHOWN)
(Superseded to 791-180522B)

$

$

Not available
