TB 51 BP (41AR51BP766) - Troy-Bilt Backpack Blower General Assembly Parts Diagram

Backpack Blower

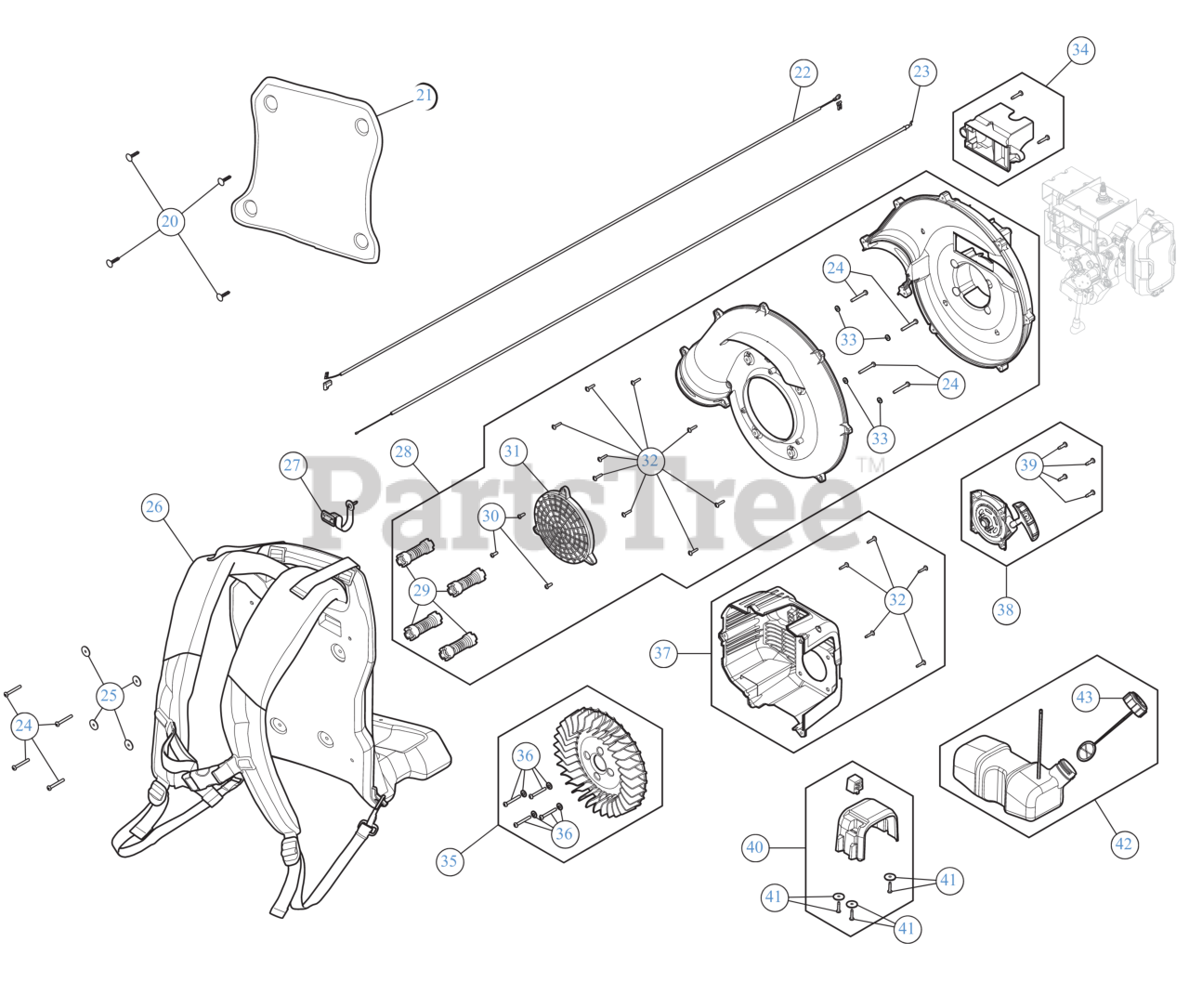

General Assembly Parts Diagram

  • Title

20

Troy-Bilt 728-05208

RIVET .70X.80

$0.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 727-05823

BACK PAD

$19.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-11157

WIRE LEAD

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-06434

THROTTLE CABLE

$8.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 9689A

SCREW

$11.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 753-11195

FLAT WASHER 0.195X0.810X0.062

$5.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 731-25851A

BACKPACK HARNESS

$63.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 727-05494

TETHER STRAP

$2.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-11193

IMPELLER

Note: (Incl. 24, 29 - 33)

$32.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-11159

INSULATOR MOUNT

$13.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 1755

SCREW-10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-11160

INTAKE COVER

$4.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 791-182409

WASH, FLAT .437X.2

$4.99

$

In Stock, Qty 5

0

34

Troy-Bilt 753-11155

ENGINE VENT

$5.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 841-015063S

IMPELLER ASSEMBLY

Note: (Incl. 36)

$25.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-11161

IMPELLER HARDWARE

$8.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 753-11194

ENGINE COVER

Note: (Incl. 32)

$7.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 753-11162

STARTER

Note: (Incl. 39)

$14.99

$

In Stock, Qty 19

0

39

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 13

0

40

Troy-Bilt 753-11164

FUEL TANK BRACKET

Note: (Incl. 41)

$9.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-11163

FUEL TANK BRACKET HARDWARE

$7.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 753-11165

FUEL TANK

Note: (Incl. 43)

$31.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 753-06857

FUEL CAP

$7.99

$

In Stock, Qty 15

0
