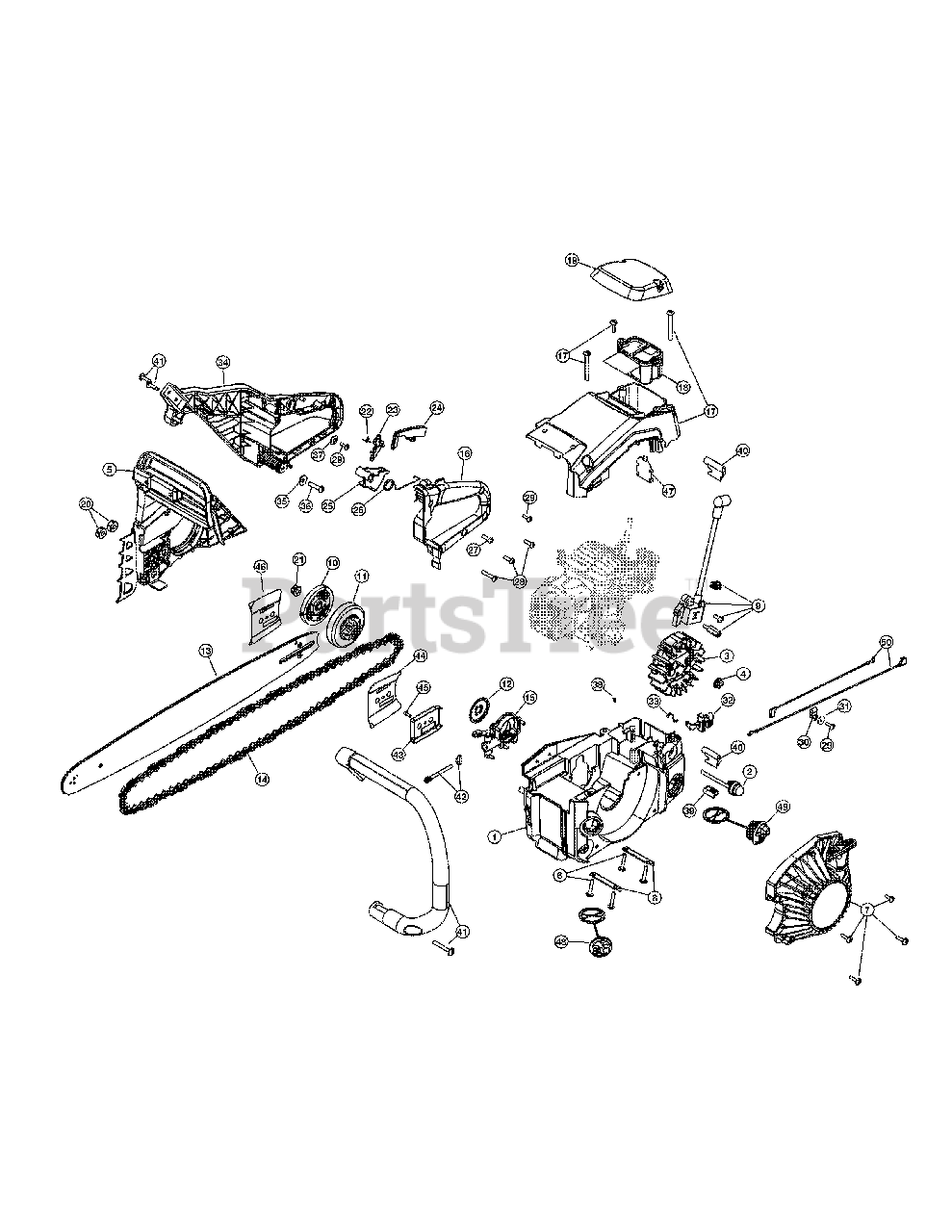

TB 5518 (41AY85AR966) - Troy-Bilt Chainsaw Bar & Chain Assembly Parts Diagram

Chainsaw

Bar & Chain Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06424

Housing Assembly

$

$

Not available

2

Troy-Bilt 753-06425

Primer Bulb Assembly

$3.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-06426

Flywheel Assembly

$19.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-06427

Flywheel Nut

$2.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-06386

Chain Brake Assembly

$50.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-06429

Engine Mount Screw

$

$

Not available

7

Troy-Bilt 753-06430

Starter Housing Assembly

$

$

Not available

8

Troy-Bilt 753-06431

Engine Mount Plate Assembly (Incl.Ref No. 6)

$2.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06432

Module Assembly

$21.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 753-06449

Clutch

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-06450

Clutch Drum Assembly

$

$

Not available

12

Troy-Bilt 753-06451

Oil Pump Shield

$2.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-06264

Bar
(Superseded to 795-00288)

$35.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 753-06265

18" Chain
(Superseded to 713-05043)

$36.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 753-06387

Oil Pump Assembly

$

$

Not available

16

Troy-Bilt 753-06390

Rear Handle Cover Assembly w/switch

$6.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06456

Top Cover Assembly

$12.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-06457

Air Cleaner Assembly

$

$

Not available

19

Troy-Bilt 753-06458

Air Cleaner Cover Assembly

$2.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-06460

Bar Nut

$2.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 753-06461

Clutch Nut

$2.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-06462

Idle Latch Spring

$2.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 753-06463

High Idle Latch

$

$

Not available

24

Troy-Bilt 753-06464

Trigger Release

$2.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-06465

Throttle Trigger

$

$

Not available

26

Troy-Bilt 753-06466

Trigger Release Spring

$2.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06467

Upper Grip Screw

$2.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-06468

Lower Grip Screw
(Superseded to 753-06470)

$2.99

$

In Stock, Qty 17

0

29

Troy-Bilt 753-06470

Throttle Clamp Screw

$2.99

$

In Stock, Qty 17

0

30

Troy-Bilt 753-06471

Cable Clamp

$

$

Not available

31

Troy-Bilt 753-06472

Washer

$

$

Not available

32

Troy-Bilt 753-06473

Choke Lever Assembly

$3.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-06474

Choke Rod

$2.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 753-06476

Rear Handle Assembly

$

$

Not available

35

Troy-Bilt 753-06477

Grip Anti-vibration Washer

$2.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-06478

Grip Anti-vibration Screw

$2.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 753-06479

Throttle Clamp Washer

$2.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 753-06480

Grommet

$

$

Not available

39

Troy-Bilt 753-06481

Plug

$

$

Not available

40

Troy-Bilt 753-06482

Boot

$

$

Not available

41

Troy-Bilt 753-06483

Handle Assembly

$11.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 753-06484

Tension Screw & Nut Assembly

$3.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 753-06485

Bar Plate

$

$

Not available

44

Troy-Bilt 753-06486

Inner Guide Plate

$

$

Not available

45

Troy-Bilt 753-06487

Guide Plate Screw

$2.49

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-06488

Outer Guide Plate

$

$

Not available

47

Troy-Bilt 753-06504

Screen

$2.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 753-06505

Oil Cap

$3.49

$

In Stock, Qty 9

0

49

Troy-Bilt 753-06506

Fuel Cap

$2.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 753-06510

Ground Wire

$2.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-06489

Case

Note: Not shown

$

$

Not available

Troy-Bilt 753-06490

Wrench

Note: Not shown

$

$

Not available
