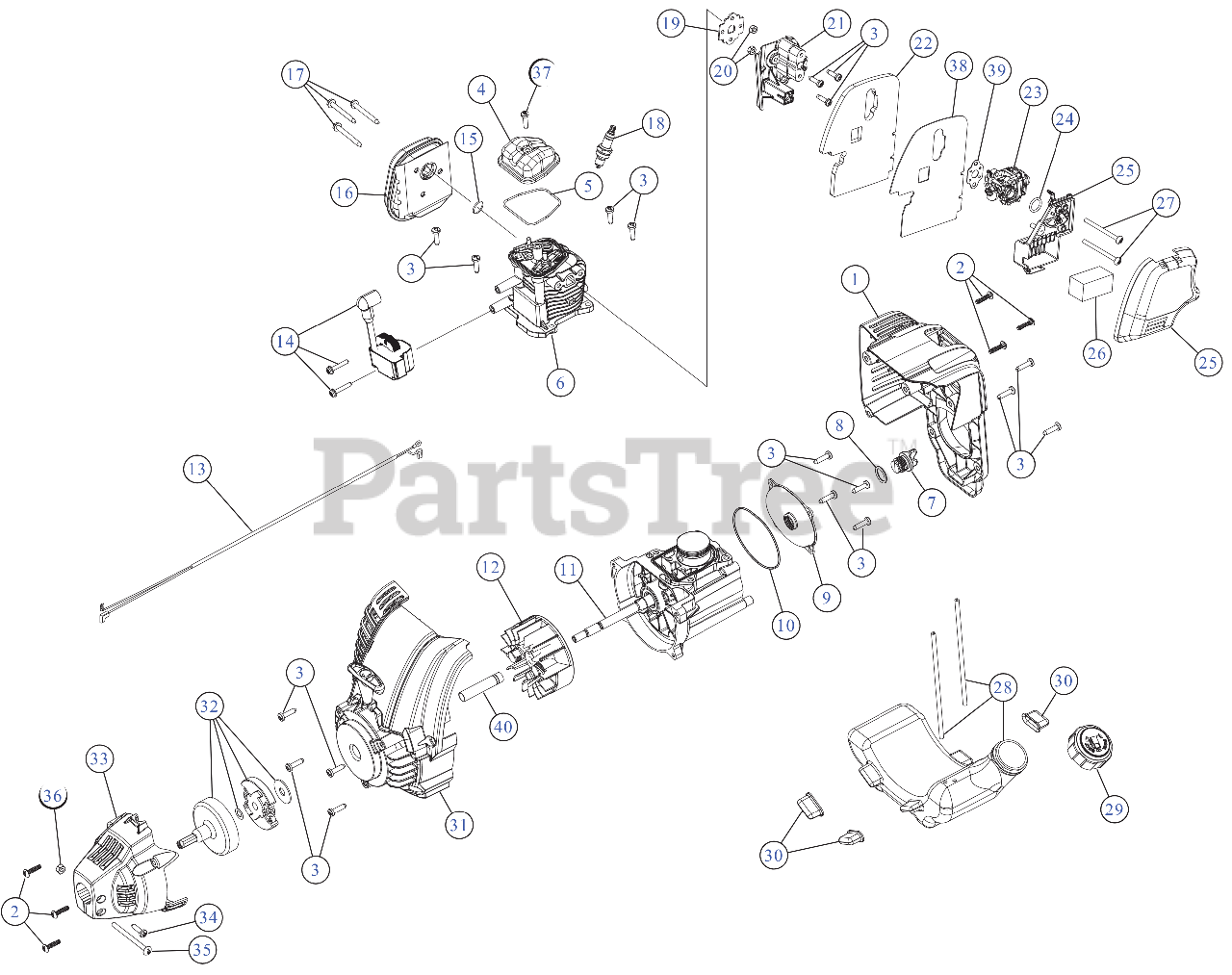

TB 590 EC (41ADZ59C866) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

REAR ENGINE CVR

Note: (Incl. 2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05902

O-RING

$5.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-06311

CYLINDER ASSEMBLY

Note: (Incl. 3 & 5)

$42.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05408

OIL PLUG

Note: (Incl. 8)

$29.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-182290

RING, OIL PLUG (AC

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06111

CRANKCASE COVER
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-06313

CRANK CASE ASSEMBLY

Note: (Incl. 10)

$52.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-08248

WIRE LEAD TWST

$5.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-08302

MODULE ASSEMBLY MA-79B

$30.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 11

0

16

Troy-Bilt 753-05245

MUFFLER ASSEMBLY

Note: (Incl. 15 & 17)

$92.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-04487

SCREW 10-32 x 1.75
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 794-00098

SPARK PLUG 10MM:EM

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 753-05247

GASKET/INSULATOR

$7.99

$

In Stock, Qty 6

0

20

Troy-Bilt 712-04099

NUT 10-32

$6.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-06947

CARB INSULATOR

$7.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-06949

HEAT SHIELD

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-08174

CARBURETOR

$34.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 791-181751

O-RING

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 753-05252

AIR CLEANER COVER

Note: (Incl. 26)

$27.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 753-05254

AIR FILTER

$5.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-04517

SCREW 10-32X2.5

$5.49

$

In Stock, Qty 8

0

28

Troy-Bilt 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 29)

$21.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$22.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 753-05259

FUEL TANK PADS

$6.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-06314

STARTER HOUSING ASSEMBLY

Note: (Incl. 3)

$30.99

$

In Stock, Qty 5

0

32

Troy-Bilt 753-06281

CLUTCH ASSEMBLY

$22.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 753-05263

CLUTCH COVER ASSEMBLY

Note: (Incl. 2)

$27.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

37

Troy-Bilt 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 753-06948

GASKET

$4.99

$

In Stock, Qty 8

0

39

Troy-Bilt 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 750-04434

SPACER :2.165"

$6.99

$

In Stock, Qty 5

0

Troy-Bilt 753-06799

SHORT BLOCK

Note: (Incl. 3 - 6, 8, 10, 11 & 18)

$106.99

$

In Stock, only 4 left!

0
