TB 6042 XP (41ADZ4PC766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

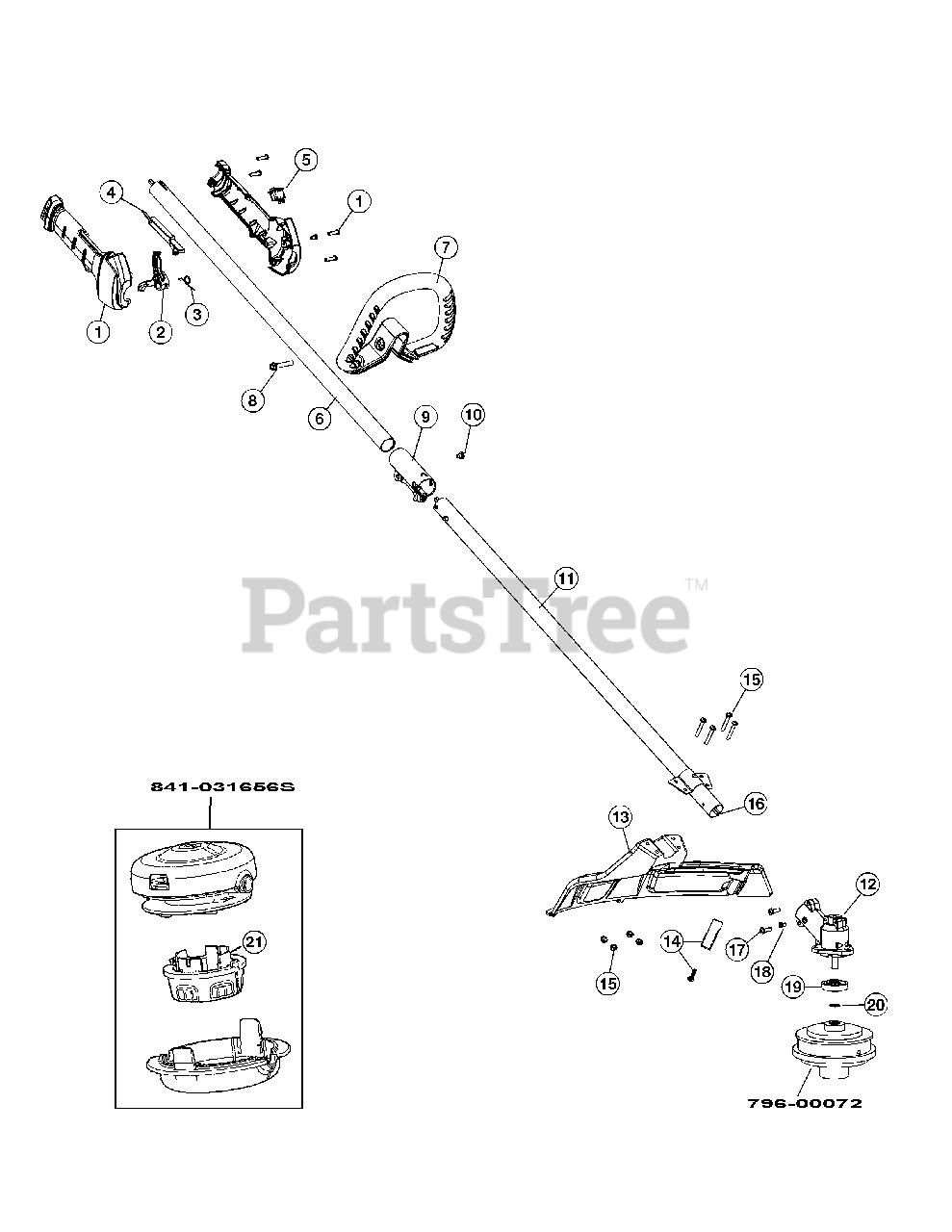

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06887

Throttle Housing Assembly

Note: (Incl. 2-5)

$15.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 753-06888

Throttle Trigger
(Superseded to 753-08564)

$22.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 753-05007

Spring

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-04971C-10

Throttle Lock-out
(Superseded to 731-04971B-10)

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-06682

Upper Drive Shaft Housing Assembly

$17.99

$

In Stock, Qty 11

0

7

Troy-Bilt 753-06689

D-Handle Assembly

Note: (Incl. 8)

$

$

Not available

8

Troy-Bilt 753-06040

Bolt

$6.49

$

In Stock, Qty 8

0

9

Troy-Bilt 753-06886

Split Boom Coupler

Note: (Incl. 10)

$9.99

$

In Stock, Qty 9

0

10

Troy-Bilt 7039

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 753-08162

Lower Drive Shaft Housing Assembly

Note: (Incl. 16)

$

$

Not available

12

Troy-Bilt 791-182193

Gearbox

$92.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 753-05820

Shield Assembly

Note: (Incl. 14)

$22.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 753-05821

Blade Assembly

$9.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 753-06125

Shield Mounting Screw & Nut

$6.49

$

In Stock, Qty 8

0

16

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 7

0

17

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 13

0

18

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 753-04348

Palnut

$6.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 753-08163

Bump Knob

$3.49

$

In Stock, Qty 20+

0

841-031656S

Troy-Bilt 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

Note: (replaces 796-00072) (includes 21)

$21.99

$

In Stock, Qty 20+

0

796-00072

Troy-Bilt 796-00072

Cutting Head Assembly
(Superseded to 841-032392S)

$21.99

$

In Stock, Qty 20+

0

Troy-Bilt 49U2341K953

Round Line-.095, 40' Trimmer Line

Note: (Optional Accessory)(not shown)

$

$

Not available

Troy-Bilt WLM-195

Maxi Edge .095, 200' Trimmer Line

Note: (Optional Accessory)(not shown)

$15.99

$

In Stock, only 4 left!

0

Troy-Bilt 49M2027P966

Electric Starter Troy-Bilt

Note: (Optional Accessory)(not shown)

$65.99

$

In Stock, Qty 9

0

Troy-Bilt 49MESCBP966

Engine Start Bit Troy-Bilt
(Superseded to 49MASCBP966)

Note: (Optional Accessory)(not shown)

$19.99

$

In Stock, Qty 12

0

Troy-Bilt 49MRBESY966

Cordless Electric Starter Troy-Bilt
(Superseded to 49MRBESY953)

Note: (Optional Accessory)(not shown)

$

$

Not available
