TB 6042 XP (41CDZ4PC766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

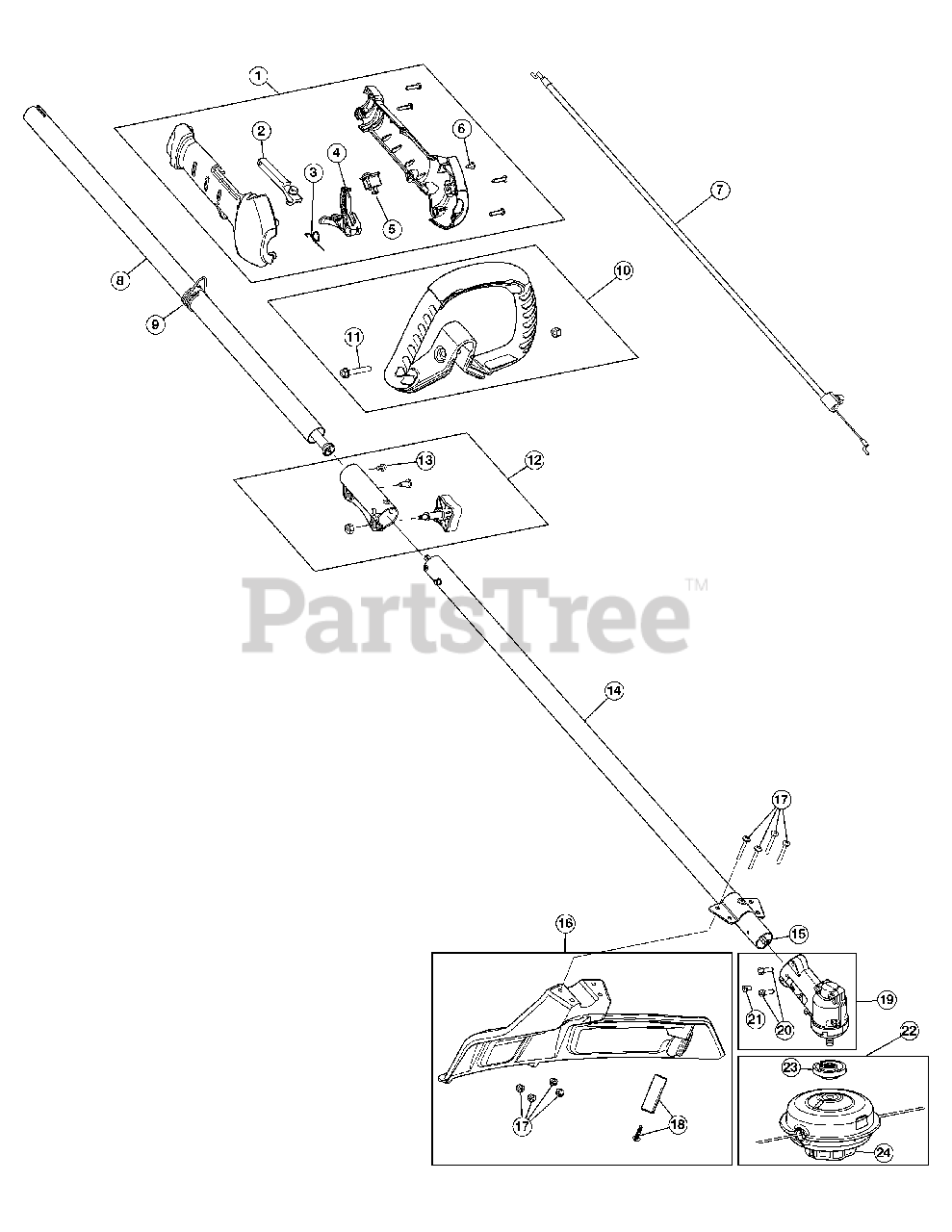

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06887

Throttle Housing Assembly (Incl. 2 - 6)

$15.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 731-04971C-10

Throttle Lockout
(Superseded to 731-04971B-10)

$4.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 753-05007

Throttle Trigger Spring

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-06888

Throttle Trigger
(Superseded to 753-08564)

$22.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 791-182519

Grip Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 753-06166

Throttle Cable

$14.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-06682

Upper Drive Shaft Housing

$17.99

$

In Stock, Qty 11

0

9

Troy-Bilt 791-610327

Shoulder Strap Clip

$30.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-06889

D-Handle Assembly (Incl. 11)

$8.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-06040

Bolt

$6.49

$

In Stock, Qty 8

0

12

Troy-Bilt 753-06886

Split Boom Coupler (Incl. 13)

$9.99

$

In Stock, Qty 9

0

13

Troy-Bilt 7682

Coupler Anti-Rotation Screw

$2.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-08162

Lower Drive Shaft Housing Assembly

Note: (Incl. 15)

$

$

Not available

15

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 7

0

16

Troy-Bilt 753-05820

Shield Assembly (Incl. 17 & 18)

$22.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 753-06125

Shield Mounting Screws and Nuts

$6.49

$

In Stock, Qty 8

0

18

Troy-Bilt 753-05821

Blade Assembly

$9.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-08180

Gearbox Assembly (Incl. 20 - 24)

$42.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 13

0

21

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

$21.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 748-05052

Cutting Head Driver

$3.49

$

In Stock, Qty 13

0

24

Troy-Bilt 753-08163

Bump Knob

$3.49

$

In Stock, Qty 20+

0

Troy-Bilt 49M2027P966

Corded Electric Starter Attachment

Note: (Optional Accessory)

$65.99

$

In Stock, Qty 9

0

Troy-Bilt 49MRBESY966

Cordless Electric Start Adaptor
(Superseded to 49MRBESY953)

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 49MESCBP966

Drill Bit Electric Start Adaptor
(Superseded to 49MASCBP966)

Note: (Optional Accessory)

$19.99

$

In Stock, Qty 12

0

Troy-Bilt 49U2341K953

Round Line-.095, 40 ft. packet

Note: (Optional Accessory)

$

$

Not available

Troy-Bilt 737-04317

Oil, 4-Cycle 3.4 OZ. SAE 30
(Superseded to 737-05691)

Note: (Optional Accessory)

$2.99

$

In Stock, only 1 left!

0
