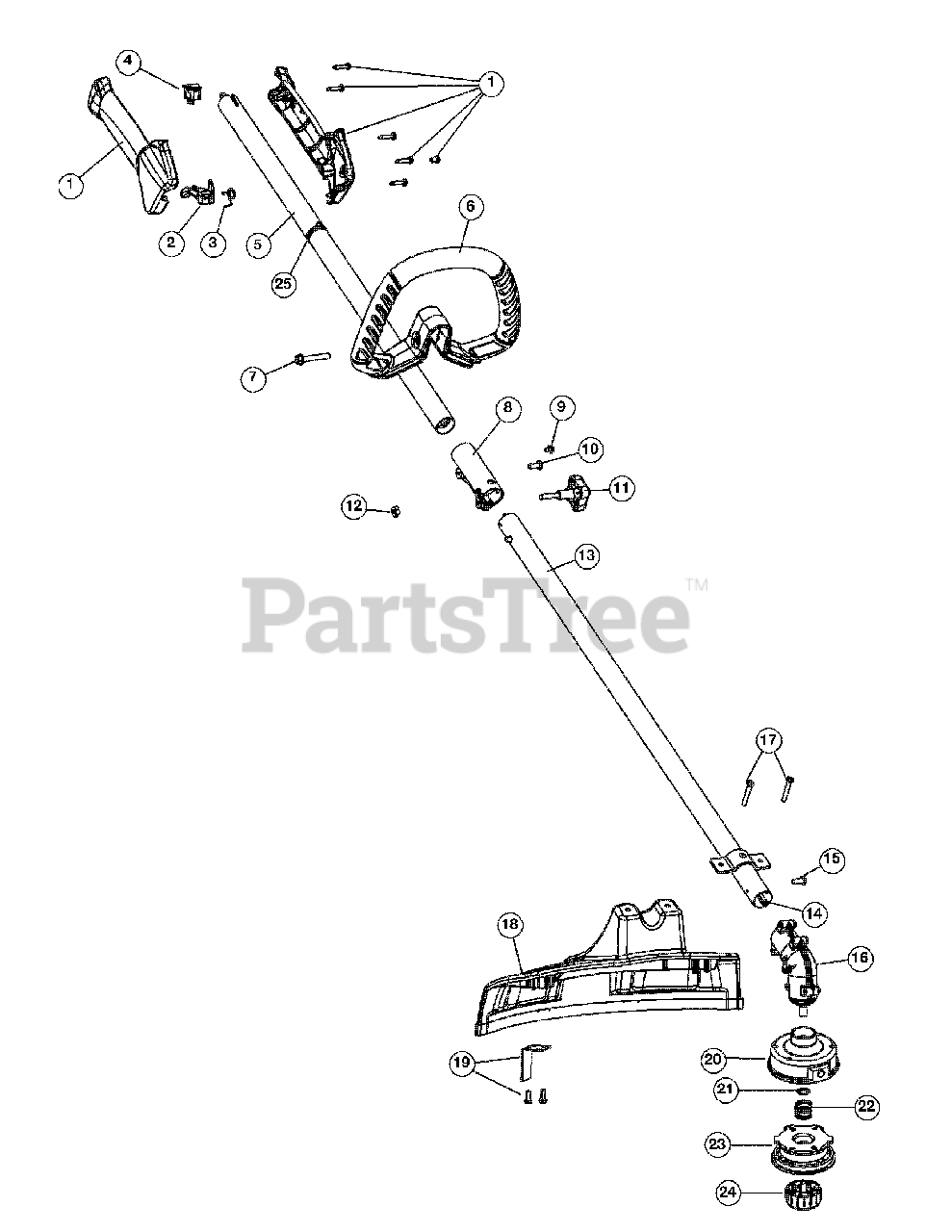

TB 80 EC (41ADT80C966) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly

Note: (Incl. Ref 2-4)

$21.99

$

In Stock, Qty 18

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 14

0

4

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-04344

Upper Srive Shaft Housing Assembly

$85.99

$

In Stock, Qty 8

0

6

Troy-Bilt 753-06039

Deluxe D-Handle Assembly

Note: (Incl. Ref 7)

$11.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 753-06040

Bolt

$6.99

$

In Stock, Qty 8

0

8

Troy-Bilt 753-1190

Split Boom Coupler

Note: (Incl. Ref 9-12)

$23.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

10

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

11

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

Note: (Incl. Ref 12)

$7.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

13

Troy-Bilt 753-08164

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, Qty 7

0

15

Troy-Bilt 7039

Anit-Rotation Screw

$4.99

$

In Stock, Qty 9

0

16

Troy-Bilt 753-06140

Gearbox Assembly
(Superseded to 753-06571)

Note: (Incl. Ref 15, 20-24)

$45.99

$

In Stock, Qty 18

0

17

Troy-Bilt 753-06125

Shield Mounting Screws

$6.99

$

In Stock, Qty 8

0

18

Troy-Bilt 753-06123

Shield Assembly

Note: (Incl. Ref 17 & 19)

$20.99

$

In Stock, Qty 16

0

19

Troy-Bilt 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

20

Troy-Bilt 753-04284

Outer Spool Assembly

$28.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 953-1156

Reel & Line Assembly

Note: Optional, Not Shown

$31.99

$

In Stock, Qty 7

0

Troy-Bilt 791-682075B

Shoulder Strap

Note: Optional, Not Shown

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05778

Fixed Line Insert

Note: Optional, Not Shown

$7.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180920

.095 Replacement Line

Note: Optional, Not Shown

$

$

Currently unavailable
