TB 86 K XP (12AI86K2266) - Troy-Bilt Walk-Behind Mower (2008) Drive System Parts Diagram

Walk-Behind Mower

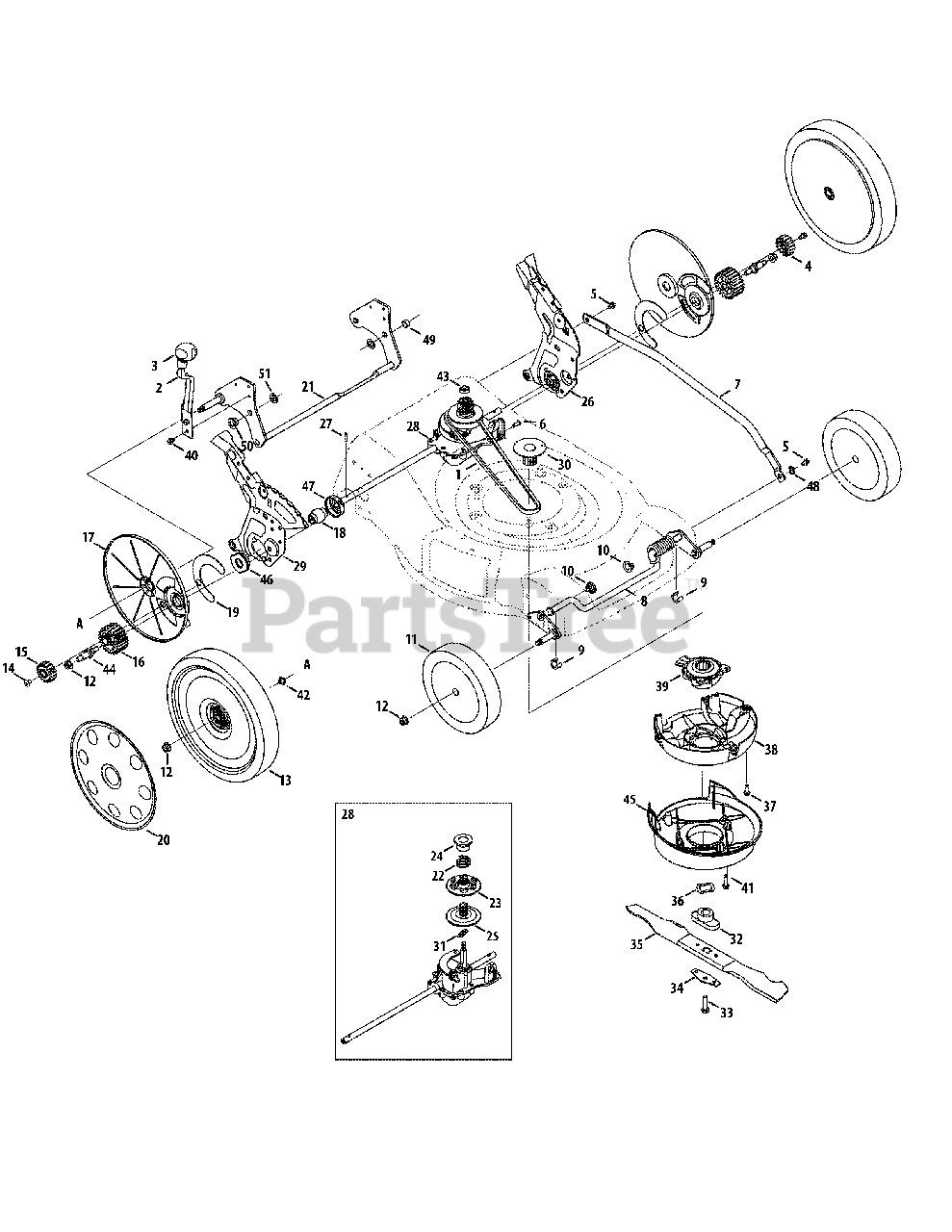

Drive System Parts Diagram

  • Title

1

Troy-Bilt 754-04176

V-Belt
(Superseded to 954-04176A)

$23.99

$

In Stock, Qty 8

0

2

Troy-Bilt 732-04480A

Spring Lever

$8.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 720-04092

Height Adjuster Knob

$5.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 717-04452

Spur Gear, 16T - LH
(Superseded to 917-04452)

$14.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 738-04278

Shldr. Screw, 1/4-20 x 0.50

$6.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04762

Screw, #12-16

$

$

Not available

7

Troy-Bilt 749-04414

Cross Bracket
(Superseded to 749-04414A-0637)

Variations

Troy-Bilt 749-04414-0637

BRACKET-CROSS HI WHEEL - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 687-02367

Front Bracket Assembly
(Superseded to 687-02367B-0637)

Variations

Troy-Bilt 687-02367-0637

Front Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

9

Troy-Bilt 731-05470

Clip Spacer

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 741-04136B

Split Hex Flange Bearing

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$40.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 634-04404

Rear Wheel
(Superseded to 934-04404)

$

$

Not available

14

Troy-Bilt 710-04770

Screw, 1/4-20 x .39

$

$

Not available

15

Troy-Bilt 717-04457

Spur Gear, 16T - RH
(Superseded to 917-04457)

$13.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 717-04575

Gear, Spur, 23T
(Superseded to 917-04575)

$30.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06145

Wheel Dust Cover
(Superseded to 731-06145C)

$11.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 741-0604A

Bearing Sleeve

$11.99

$

In Stock, Qty 12

0

19

Troy-Bilt 787-01645

Dust Cover Seal Plate
(Superseded to 787-01645A)

$2.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 731-06146

Hub Cap

$19.99

$

Usually ships in 3-6 days

0

21

MTD 687-02390

Rear Bracket Assembly
(Superseded to 687-02390-0637)

Variations

MTD 687-02390-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

22

Troy-Bilt 732-04527

Compression Spring

$

$

Not available

23

Troy-Bilt 756-04316

Upper Pulley
(Superseded to 756-04316A)

$

$

Not available

24

Troy-Bilt 712-04161

Nut, Shldr.

$

$

Not available

25

Troy-Bilt 756-04317

Lower Pulley

$14.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 687-02428

Handle Bracket Assembly LH
(Superseded to 987-02503)

Note: (Includes Ref. #’s 18, 46, & 47)

$34.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 618-04670

Transmission Assembly
(Superseded to 918-04826A)

$

$

Not available

29

Troy-Bilt 687-02429

Handle Bracket Assembly RH
(Superseded to 987-02537)

Note: (Includes Ref. #’s 18, 46, & 47)

$44.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 756-04315A

Pulley, Half

$

$

Not available

31

Troy-Bilt 732-04313

Extension Spring

$4.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-0526

Washer, Wave, .88 x 1.31 x .029

$6.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-06112

Engine
(Superseded to 731-06112A)

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 656-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

Troy-Bilt 710-0653

Screw, TT, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

41

Troy-Bilt 710-04774

Screw, 1/4-15 x 1.25

$4.49

$

In Stock, only 3 left!

0

42

Troy-Bilt 736-0504

Washer, Wave, .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

43

Troy-Bilt 750-05022

Spcr., 7/8 x 1.265

$

$

Not available

44

Troy-Bilt 711-04822A

Shf., .500 Dia. X 2.456

$

$

Not available

45

Troy-Bilt 731-06284

Baffle

$26.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 748-04177

Bearing Support

$11.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 736-3012A

Washer, Wave, .390 x .625 x .016

$6.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 750-05029

Spacer, .499 x .685 x .380
(Superseded to 750-05031)

$

$

Not available

50

Troy-Bilt 750-05031

Spacer, .499 x .860 x .380

$

$

Not available

51

Troy-Bilt 736-0314

Washer, Thrust, .375 x .70 x .030

$6.49

$

Usually ships in 3-6 days

0
