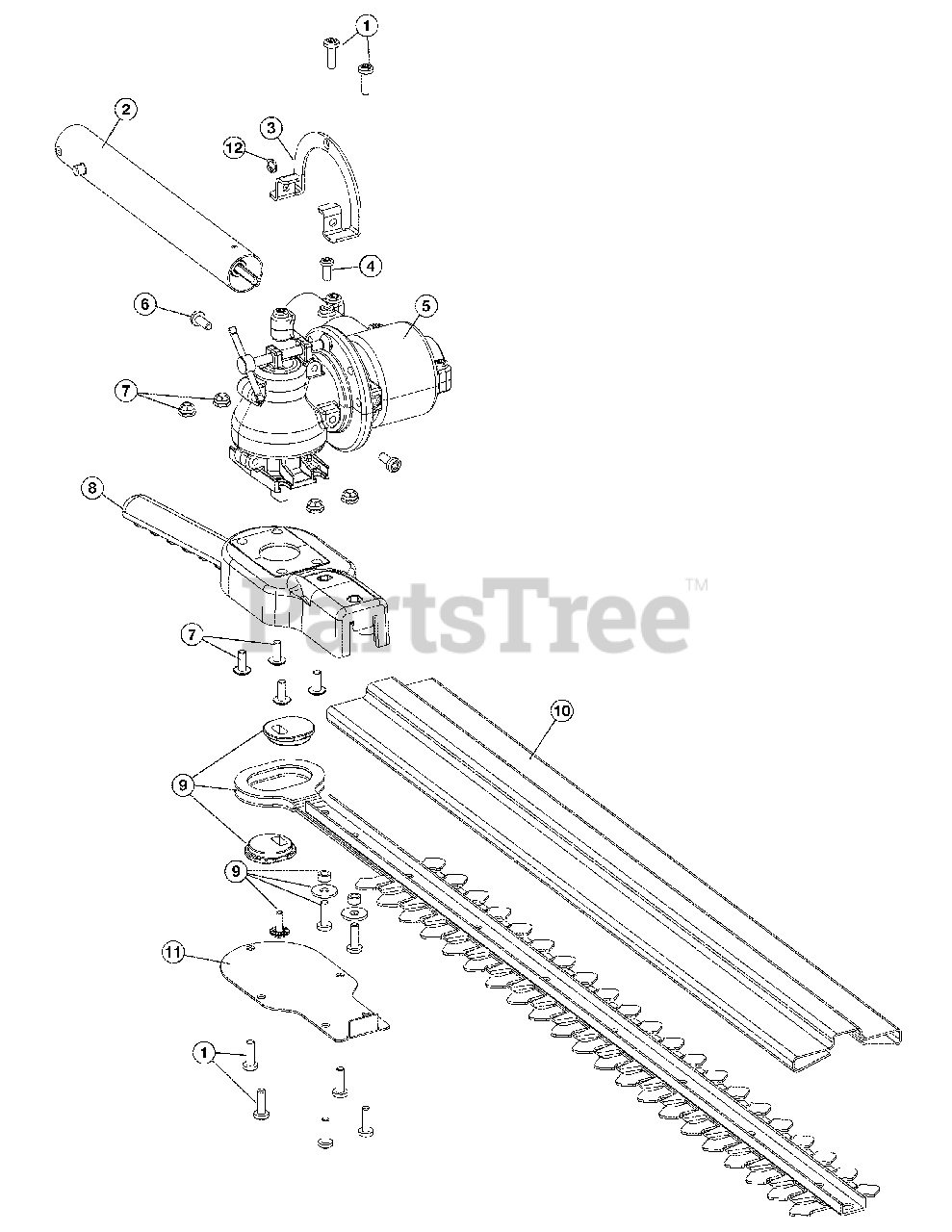

TBAH (41AJAH-C966) - Troy-Bilt Hedge Trimmer Attachment General Assembly Parts Diagram

Hedge Trimmer Attachment

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 791-182886

Screw

$

$

Not available

2

Troy-Bilt 753-05616

Drive Shaft Housing Assembly
(Superseded to 753-08007)

$12.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 753-05617

Indexing Ring
(Superseded to 797-00053)

$

$

Not available

4

Troy-Bilt 753-05698

Anti-Rotation Screw
(Superseded to 7039)

$4.99

$

In Stock, Qty 8

0

5

Troy-Bilt 753-05618

Gearbox Assembly (includes 4)

$

$

Not available

6

Troy-Bilt 753-05619

Screw
(Superseded to 710-04394)

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-05620

Blade Housing Hardware

$

$

Not available

8

Troy-Bilt 753-05621

Upper Blade Housing (Includes 7)

$24.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05623

Blade Assembly

$

$

Not available

10

Troy-Bilt 753-05624

Guard
(Superseded to 731-05906-1)

$

$

Not available

11

Troy-Bilt 753-05625

Lower Blade Assembly
(Superseded to 797-00055)

$

$

Not available

12

Troy-Bilt 791-182215

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
