TBE 252 (41ADE252766) - Troy-Bilt Edger Edger Assembly Parts Diagram

Edger

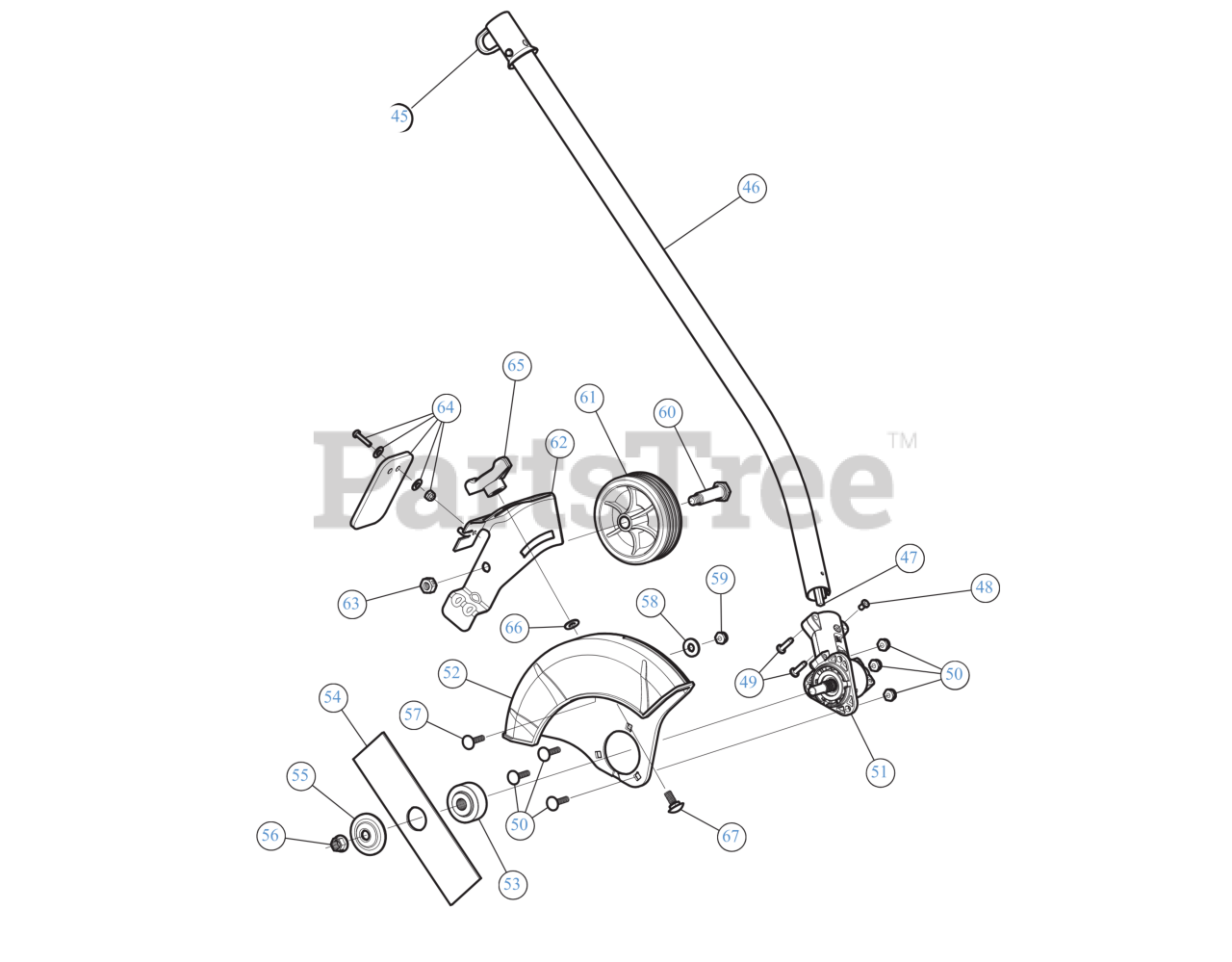

Edger Assembly Parts Diagram

  • Title

45

Troy-Bilt 1831

PLUG CAP

$1.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-08036

BOOM ASSEMBLY LE

$20.99

$

In Stock, Qty 7

0

47

Troy-Bilt 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, Qty 6

0

48

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 7

0

50

Troy-Bilt 753-1217

HDWR ASM:GUARD MT

$3.49

$

In Stock, Qty 9

0

51

Troy-Bilt 753-04258

GRBX ASSEMBLY

$108.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 753-08019

GUARD

$7.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 792-10785

SPACER

$2.99

$

In Stock, Qty 10

0

54

Troy-Bilt 791-613223B

EDGER BLADE
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, Qty 6

0

56

Troy-Bilt 712-04105

BLADE LOCK NUT

$10.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 710-04063

CARRIAGE BOLT 1/4-20 x 1

$4.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 3010

FLAT WASHER

$2.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt 2952

NUT 1/4-20 NYLOC

$2.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 791-180776

BOLT
(Superseded to 5556)

$1.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 6356

WHEEL 3.75" (WHITE)

$5.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 753-08021

BRACKET GUARD

$10.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 712-3000

LOCK NUT 3/8-16

$4.49

$

In Stock, Qty 20+

0

64

Troy-Bilt 753-08020

DEFLECTOR W/HDW

Note: (with Hardware)

$3.99

$

In Stock, Qty 17

0

65

Troy-Bilt 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 736-04107

WASHER .406X1.0X.095

$4.49

$

In Stock, only 1 left!

0

67

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0
