TBE 304 (25A-304-766) - Troy-Bilt Edger (2019) Engine Assembly Parts Diagram

Edger

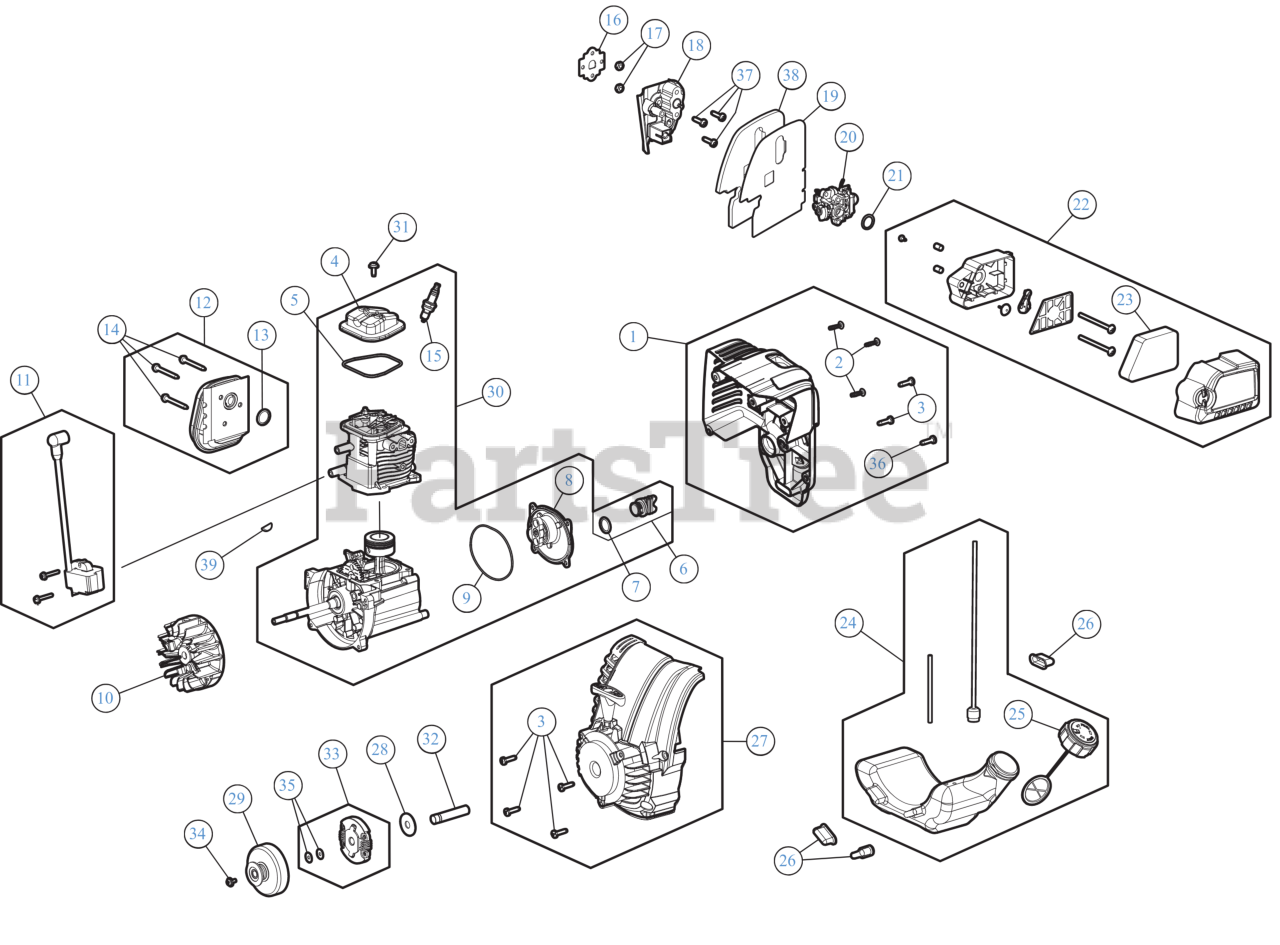

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06134

REAR ENGINE CVR

Note: (Incl. 2, 3 & 36)

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05902

O-RING

$5.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-05408

OIL PLUG

Note: (Incl. 7)

$29.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 791-182290

RING, OIL PLUG (AC

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06259

CRANKCASE COVER

$8.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-10444

MODULE (ACX)

$51.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 753-05245

MUFFLER ASSEMBLY

Note: (Incl. 13 & 14)

$92.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 11

0

14

Troy-Bilt 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-05247

GASKET/INSULATOR

$7.99

$

In Stock, Qty 6

0

17

Troy-Bilt 712-04099

NUT 10-32

$6.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 841-020801S

CARB INSULATOR

$9.99

$

In Stock, Qty 5

0

19

Troy-Bilt 753-06948

GASKET

$4.99

$

In Stock, Qty 8

0

20

Troy-Bilt 751-16046-4

CARBURETOR

Note: with Primer)

$38.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 791-181751

O-RING

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 841-034692S

AIR CLEANER

Note: (Incl. 23)

$12.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-05996

AIR FILTER

$3.49

$

In Stock, Qty 10

0

24

Troy-Bilt 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 25)

$21.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$22.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 753-05259

FUEL TANK PADS

$6.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-06314

STARTER HOUSING ASSEMBLY

Note: (Incl. 3)

$30.99

$

In Stock, Qty 5

0

28

Troy-Bilt 9162-1

WASH, CLUTCH O.D. 1.155 +/- .0

$4.49

$

In Stock, Qty 8

0

29

Troy-Bilt 753-06573

CLUTCH DRUM/PULLEY

Note: with Pulley)

$25.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 841P021441S

SHORT BLOCK

Note: (Incl. 4-9 & 15)

$98.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 750-04434

SPACER :2.165"

$6.99

$

In Stock, Qty 5

0

33

Troy-Bilt 753-1238

CLUTCH WITH SPACER

Note: (Incl. 35)

$45.99

$

In Stock, Qty 17

0

34

Troy-Bilt 791-182468

SCREW 8-32X.375 PH S

$12.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 6674

WASH, NORAM CLUTCH

$3.49

$

In Stock, only 1 left!

0

36

Troy-Bilt 9054

SCR, M5 x 15.8MM

$4.49

$

In Stock, Qty 5

0

37

Troy-Bilt 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

38

Troy-Bilt 753-06949

HEAT SHIELD

$5.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

Usually ships in 3-6 days

0
