TBP 3160 (41AD316G966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

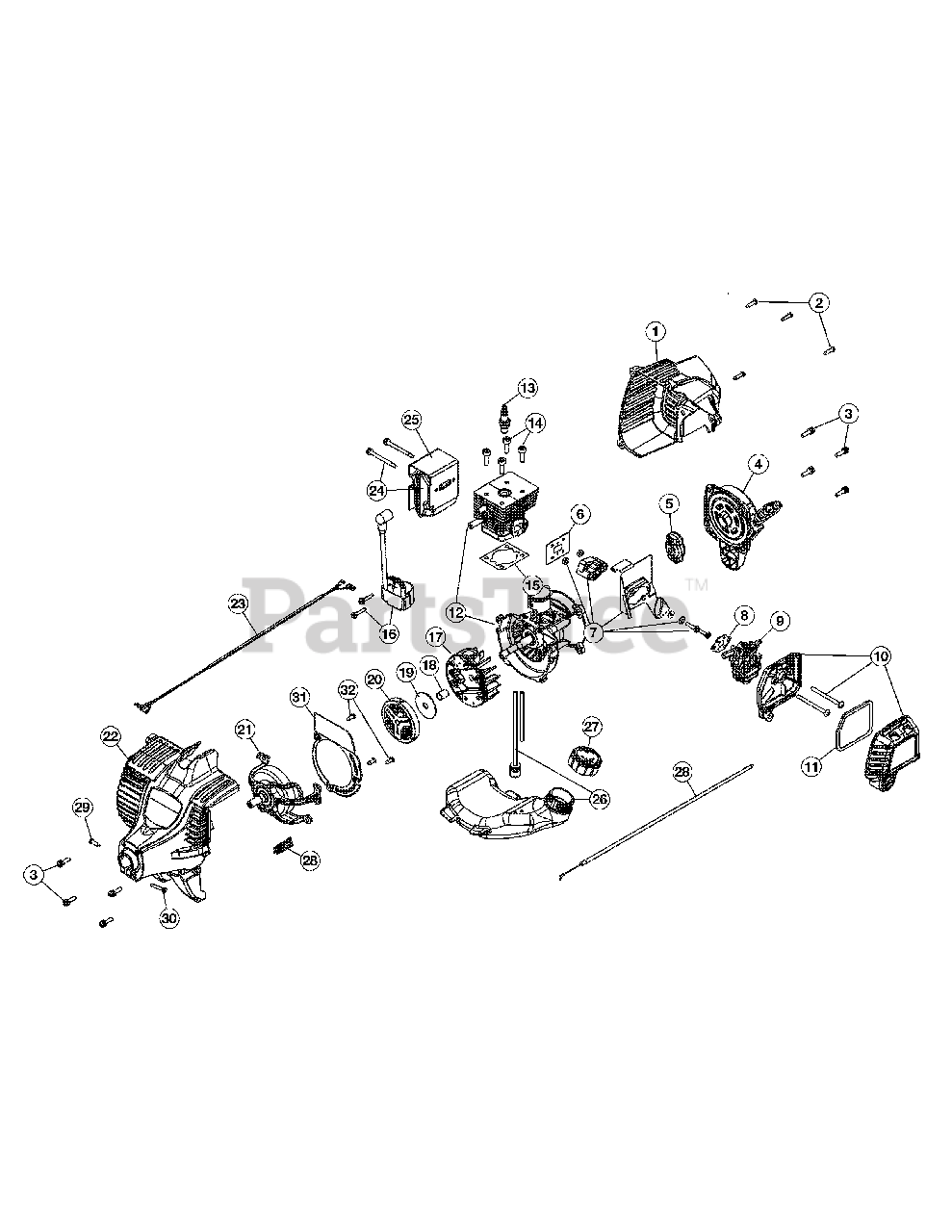

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05886

Rear Cover Assembly
(Superseded to 753-05870)

Note: (Incl. Ref No. 2)

$

$

Not available

2

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 16

0

3

Troy-Bilt 753-05805

Screw
(Superseded to 710-04742A)

$3.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-05871

Starter Assembly

Note: (Incl. Ref No. 3)

$

$

Not available

5

Troy-Bilt 753-05635

Pawl Assembly

$

$

Not available

6

Troy-Bilt 753-05702

Insulator Gasket

$

$

Not available

7

Troy-Bilt 753-05632

Insulator Assembly

Note: (Incl. Ref No. 6)

$

$

Not available

8

Troy-Bilt 791-181709

Carburetor Gasket

$4.99

$

In Stock, Qty 20+

0

9

MTD 753-05872

Carburetor Assembly

Note: (Incl. Ref No. 8)

$

$

Not available

10

Troy-Bilt 753-05887

Aircleaner Assembly

Note: (Incl. Ref No. 11)

$

$

Not available

11

Troy-Bilt 753-05802

Air Filter

$

$

Not available

12

Troy-Bilt 753-05875

Shortblock Assembly

Note: (Incl. Ref No. 13-18)

$

$

Currently unavailable

13

Troy-Bilt 753-05784

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-05703

Screw
(Superseded to 710-04715)

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05704

Cylinder Gasket

$

$

Not available

16

Troy-Bilt 753-05420

Module Assembly
(Superseded to 753-05376)

$

$

Not available

17

Troy-Bilt 753-05708

Flywheel

$33.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-05814

Spacer

$4.49

$

In Stock, Qty 8

0

19

Troy-Bilt 753-05813

Washer
(Superseded to 9162-3)

$6.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 753-05812

Clutch

$34.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 753-05878

Frame w/ Clutch Drum

$

$

Not available

22

Troy-Bilt 753-05888

Clutch Cover Assembly

Note: (Incl. Ref No. 3)

$

$

Not available

23

Troy-Bilt 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 753-05880

Muffler Assembly

Note: (Incl. Ref No. 25)

$

$

Not available

25

Troy-Bilt 753-05881

Muffler Gasket

$

$

Not available

26

Troy-Bilt 753-05882

Fuel Tank

Note: (Incl. Ref No. 27)

$

$

Not available

27

Troy-Bilt 791-180000B

Fuel Cap

$19.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-05883

Throttle Cable Assembly

$

$

Not available

29

Troy-Bilt 753-05619

Screw
(Superseded to 710-04394)

$6.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 753-05805

Screw
(Superseded to 710-04742A)

$3.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 753-05961

Pressure Plate Assembly

Note: (Incl. Ref No. 32)

$

$

Not available

32

Troy-Bilt 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0
