TBP 6160 (41AD616G966) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

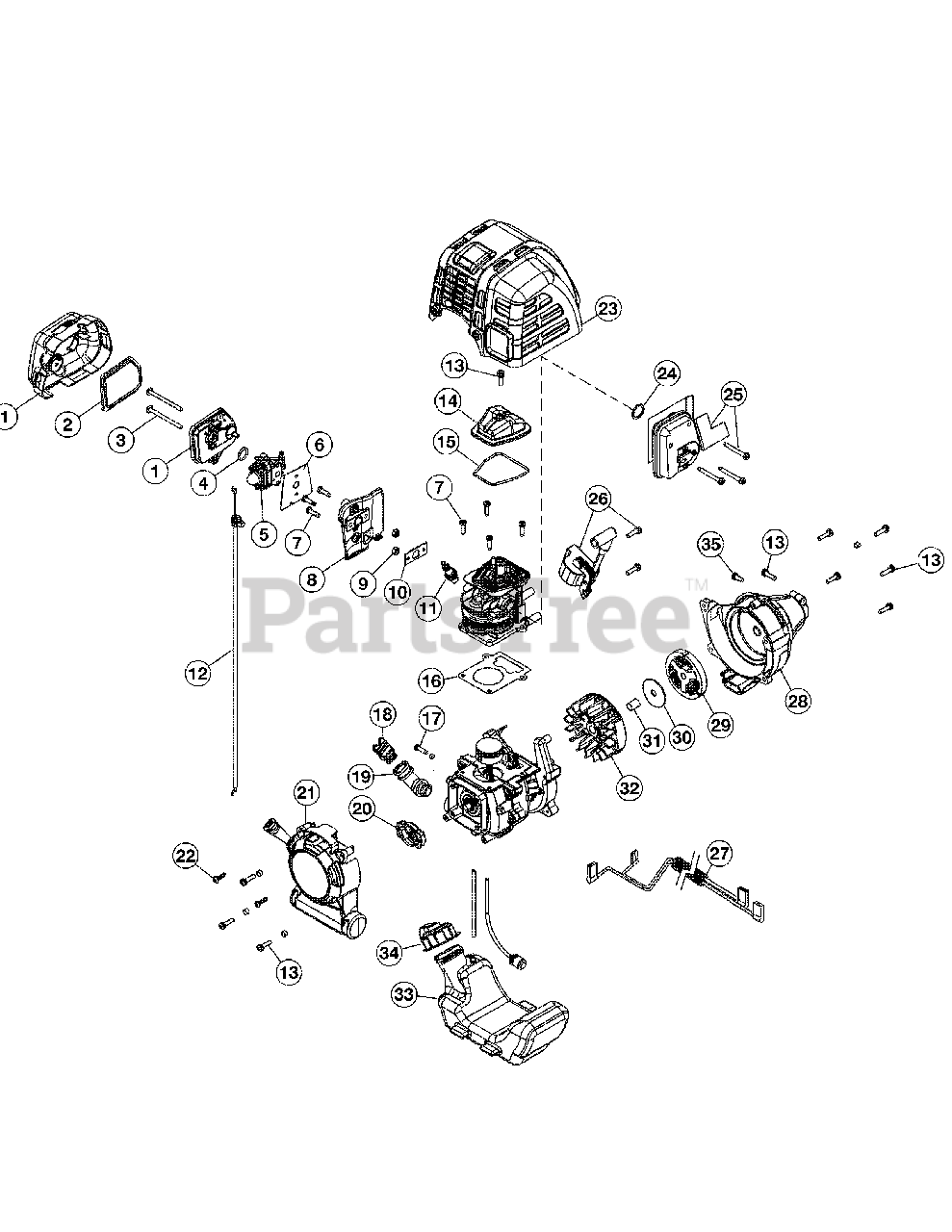

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-05800

Aircleaner Assembly

Note: (Incl. Ref No. 2 & 3)

$37.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05802

Air Filter

$

$

Not available

3

Troy-Bilt 710-04517

Screw

$4.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 753-05676A

Carburetor Assembly
(Superseded to 753-08025)

$32.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-05803

Carburetor Gasket

$7.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

8

Troy-Bilt 753-05804

Insulator

$

$

Not available

9

Troy-Bilt 712-04099

Nut

$6.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 753-05673

Insulator Gasket

$9.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05255

Spark Arrestor
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 753-05266

Throttle Cable

$19.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-04742A

Screw

$3.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-05671

Valve Cover

$12.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05672

Valve O-Ring

$9.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 753-05681

Cylinder Gasket

$9.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-04604

Screw

$3.99

$

In Stock, Qty 12

0

18

Troy-Bilt 753-05400

Oil Plug Assembly
(Superseded to 753-05408)

$27.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 753-05806

Oil fill Tube Assembly

Note: (Incl. Ref No. 17)

$

$

Not available

20

Troy-Bilt 753-05635

Pawl Assembly

$

$

Not available

21

Troy-Bilt 753-05808

Rear Starter Cover Assembly

$

$

Not available

22

Troy-Bilt 710-04194

Screw

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-05809

Starter Housing

$

$

Not available

24

Troy-Bilt 753-05670

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-05810

Muffler Assembly

$

$

Not available

26

Troy-Bilt 753-05301

Module Assembly

$105.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 753-05264

Lead Wires

$15.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 753-05811

Clutch Cover Assembly

$

$

Not available

29

Troy-Bilt 753-05812

Clutch

$34.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 9162-3

Clutch Washer

$5.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 753-05814

Spacer

$3.99

$

In Stock, Qty 8

0

32

Troy-Bilt 753-05815

Flywheel

$21.99

$

Usually ships in 3-6 days

0

33

MTD 753-05816

Fuel Tank

Note: No Longer Available

$

$

Not available

34

Troy-Bilt 753-05289

Fuel Cap

$21.99

$

In Stock, Qty 10

0

35

Troy-Bilt 710-04394

Anti-Rotation Screw

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 753-05817

Short Block Assembly

Note: (Not Shown)

$

$

Not available
