TL752 A - Honda 40" Tiller Attachment, Made in USA DRIVESHAFT ASSEMBLY (TL752A) Parts Diagram

40" Tiller Attachment, Made in USA

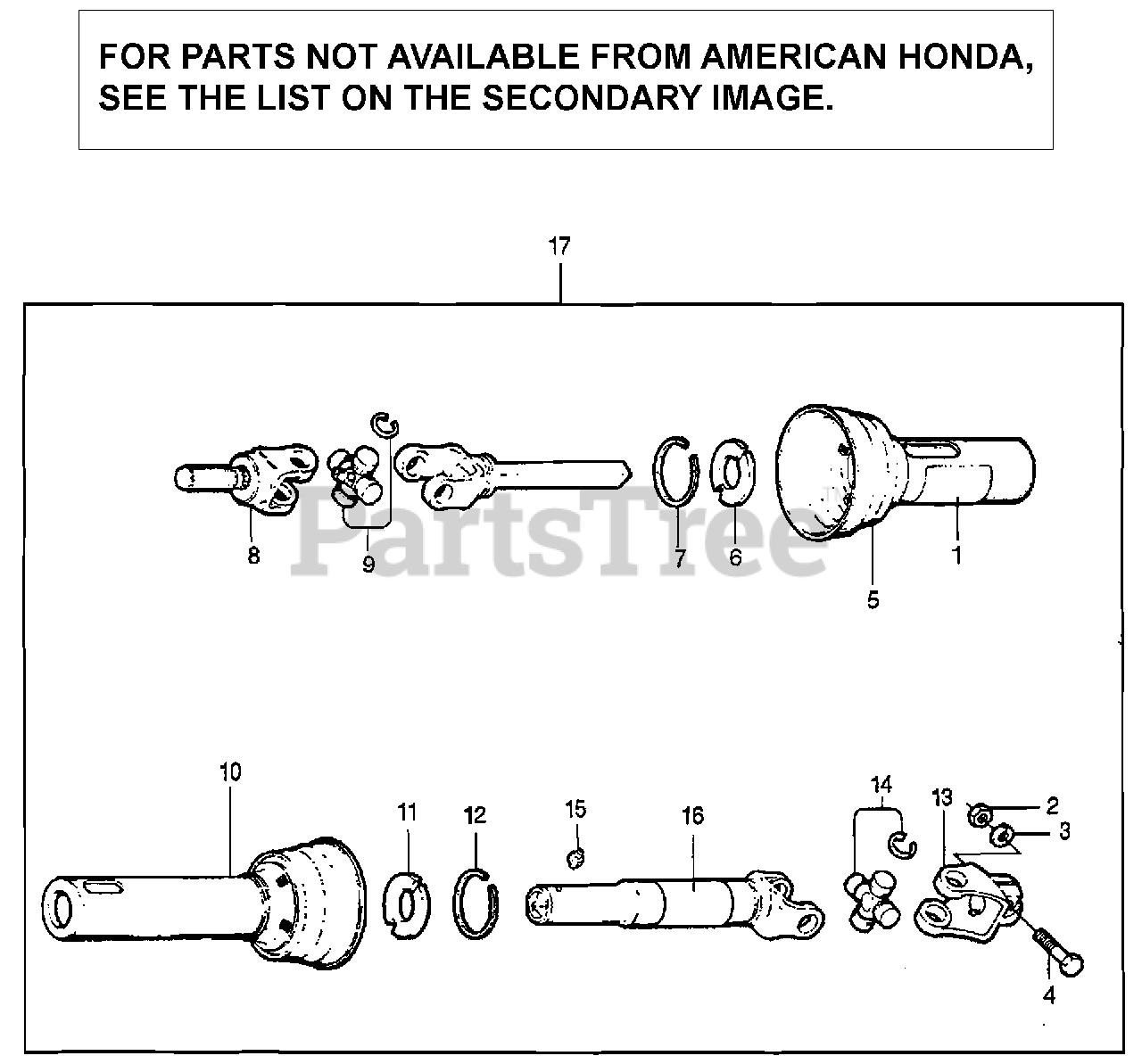

DRIVESHAFT ASSEMBLY (TL752A) Parts Diagram

  • Title

3

Honda 72999-0074

SCREW, CAP (3/8") (16 UNC) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 72999-0056

FRAME ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 72999-0064

BEARING, NYLON

$5.99

$

Usually ships in 3-6 days

0

7

Honda 72999-0065

RETAINER, BEARING

$4.49

$

Usually ships in 3-6 days

0

8

Honda 72999-0059

YOKE, TRACTOR

$

$

Not available

9

Honda 72999-0060

CROSS & BEARING KIT

$72.99

$

Usually ships in 3-6 days

0

10

Honda 72999-0058

SHIELD ASSY. (INNER)

$55.99

$

Usually ships in 3-6 days

0

11

Honda 72999-0061

BEARING, NYLON

$5.99

$

Usually ships in 3-6 days

0

12

Honda 72999-0062

RETAINER, BEARING (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 72999-0063

YOKE, IMPLEMENT

$77.99

$

Usually ships in 3-6 days

0

14

Honda 72999-0060

CROSS & BEARING KIT

$72.99

$

Usually ships in 3-6 days

0

15

Honda 72999-0066

FITTING, GREASE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 72999-0133

DRIVESHAFT ASSY. (NOT AVAILABLE)

$

$

Currently unavailable
