Ultra 61 BF (966611802) - Dixon 61" Ultra Zero-Turn Mower (2011-05) PARKING BRAKE Parts Diagram

61" Ultra Zero-Turn Mower

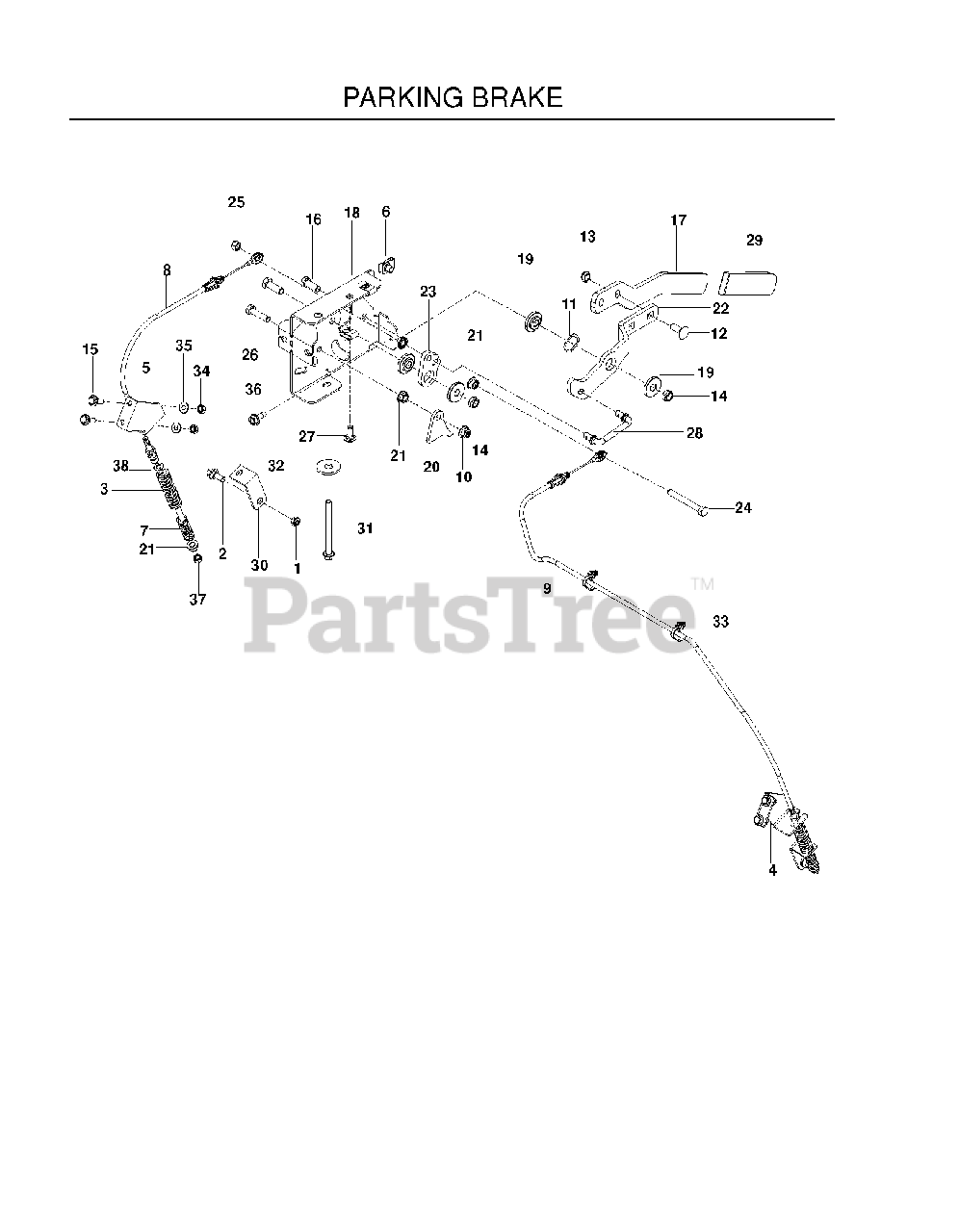

PARKING BRAKE Parts Diagram

  • Title

1

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

2

Dixon 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

3

Dixon 575230201

SPRING, RETURN

$6.49

$

In Stock, only 2 left!

0

4

Dixon 575229602

BRKT, BRAKE RT, BLK
(Superseded to 593279202)

$4.99

$

Usually ships in 3-10 days

0

5

Dixon 575229702

BRKT, BRAKE LT, BLK

$40.99

$

Usually ships in 3-10 days

0

6

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

7

Dixon 575230301

SPRING, ENGAGEMENT

$6.49

$

Usually ships in 3-10 days

0

8

Dixon 539132173

CABLE, BRAKE, SHORT

$40.99

$

In Stock, only 2 left!

0

9

Dixon 539132174

CABLE, BRAKE, LONG
(Superseded to 582122001)

$13.99

$

Usually ships in 3-10 days

0

10

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 10

0

11

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, Qty 10

0

12

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

14

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

15

Dixon 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539990563

HCS 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

17

Dixon 575017502

ARM, BRAKE, BLACK

$15.99

$

Usually ships in 3-10 days

0

18

Dixon 539132158

MOUNT, BRAKE WLDMT

$66.99

$

Usually ships in 3-10 days

0

19

Dixon 539132161

BUSHING, BRAKE

$6.49

$

In Stock, Qty 9

0

20

Dixon 539132154

ACTUATOR, SWITCH
(Superseded to 595846701)

$93.99

$

In Stock, Qty 6

0

21

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539132423

LEVER, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, Qty 6

0

23

Dixon 539132153

BELLCRANK, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, Qty 6

0

24

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

25

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

27

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539132424

LINKAGE, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, Qty 6

0

29

Dixon 539120921

GRIP BRAKE HANDLE

$10.99

$

In Stock, only 1 left!

0

30

Dixon 575229802

BRKT, BRAKE, BLK

$34.99

$

In Stock, only 1 left!

0

31

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

33

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 20+

0

36

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

37

Dixon 539107897

NUT 5/16-18 HEX JAM ZD

$3.99

$

Usually ships in 3-10 days

0

38

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
