UT-08514 - Homelite Vac Attack II Blower Figure A Parts Diagram

Vac Attack II Blower

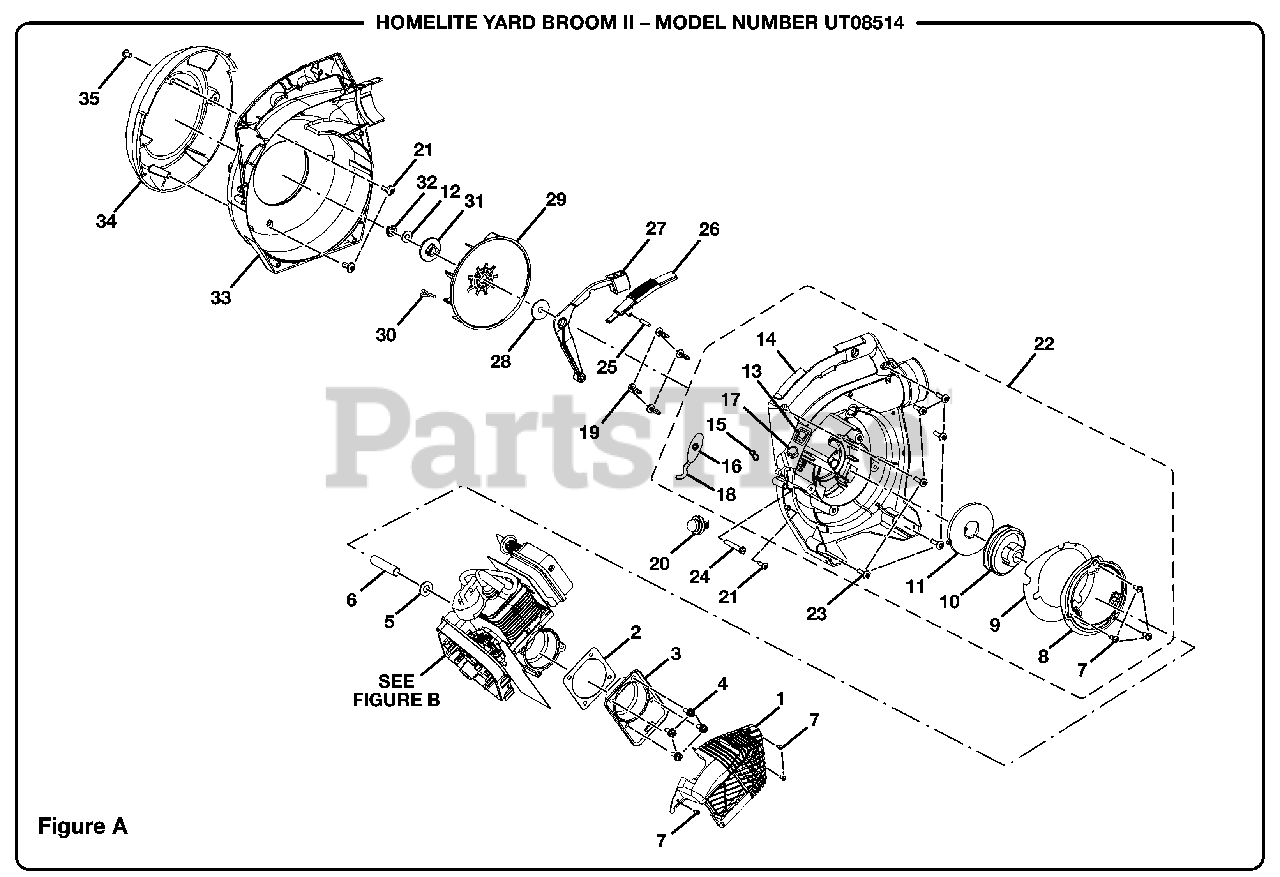

Figure A Parts Diagram

  • Title

1

Homelite 518251001

Blower Shroud

$

$

Not available

2

Homelite 900954001

Crankcase Gasket

$

$

Not available

3

Homelite 638031001

Crankcase Cover
(Superseded to PS02130)

$

$

Not available

4

Homelite 660664001

Screw (10-24 X 9/16 in Pan Hd.)
(Superseded to PS01565)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 650017001

Flat Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

6

Homelite 650018001

Fan Spacer

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660669001

Screw (#8 X 1/2 in Pan Hd.)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

8

Homelite 638032002

Baffle
(Superseded to PS00326)

$1.49

$

In Stock, only 1 left!

0

9

Homelite 900957001

Baffle Gasket
(Superseded to 985261001)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 518098001

Pully
(Superseded to 98770A)

$1.99

$

In Stock, only 4 left!

0

11

Homelite 638033001

Spring & Container

$3.49

$

In Stock, only 1 left!

0

12

Homelite 650015001

Washer

$1.49

$

In Stock, only 1 left!

0

13

Homelite 760363002

Switch
(Superseded to PS02764)

$

$

Not available

14

Homelite 518249001

Inner Volute Housing

$

$

Not available

15

Homelite 650013001

Bushing - Starter Rope

$

$

Not available

16

Homelite 518073001

Starter Grip
(Superseded to PS01200)

$1.49

$

In Stock, only 3 left!

0

17

Homelite 650014001

Bushing
(Superseded to 969811A)

$

$

Not available

18

Homelite 900849004

Starter Rope
(Superseded to 900849001)

$1.49

$

In Stock, only 4 left!

0

19

Homelite 660630002

Screw (10-24 X 3/4 in Truss Hd.)
(Superseded to 82538)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 308088001

Primer Bulb
(Superseded to 01183)

$

$

Not available

21

Homelite 660618001

Screw (10-14 X 1/2 in Torx Truss Hd.)
(Superseded to 82541)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

22

Homelite 308279003

Inner Housing & Starter Assembly

Note: Inc Key Nos 7-11, 13-18

$

$

Not available

23

Homelite 660629001

Screw (10-14 X 3/4 in Torx Truss Hd.)
(Superseded to 82563)

Note: Purchase locally

$1.49

$

In Stock, Qty 6

0

24

Homelite 660667001

Screw (10 X 1-5/8 in Hex Hd.)
(Superseded to JA416903)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 348007001

Pin

$

$

Not available

26

Homelite 518211001

Slide

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 518247001

Trigger

$

$

Not available

28

Homelite 650016001

Flat Washer

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 518077001

Fan
(Superseded to PS02931)

$

$

Not available

30

Homelite 638074001

Wire Loop
(Superseded to 00398)

$

$

Not available

31

Homelite 640858001

Fan Adaptor

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 660730001

Lock Nut (3/8-24)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

33

Homelite 518250001

Outer Volute

$

$

Not available

34

Homelite 518078001

Door

$

$

Not available

35

Homelite 660668001

Screw (1/4-20 X 3/4)
(Superseded to 617205001)

Note: Purchase locally

$

$

Not available
