UT-10516 - Homelite Chainsaw, 33cc Figure B Parts Diagram

Chainsaw, 33cc

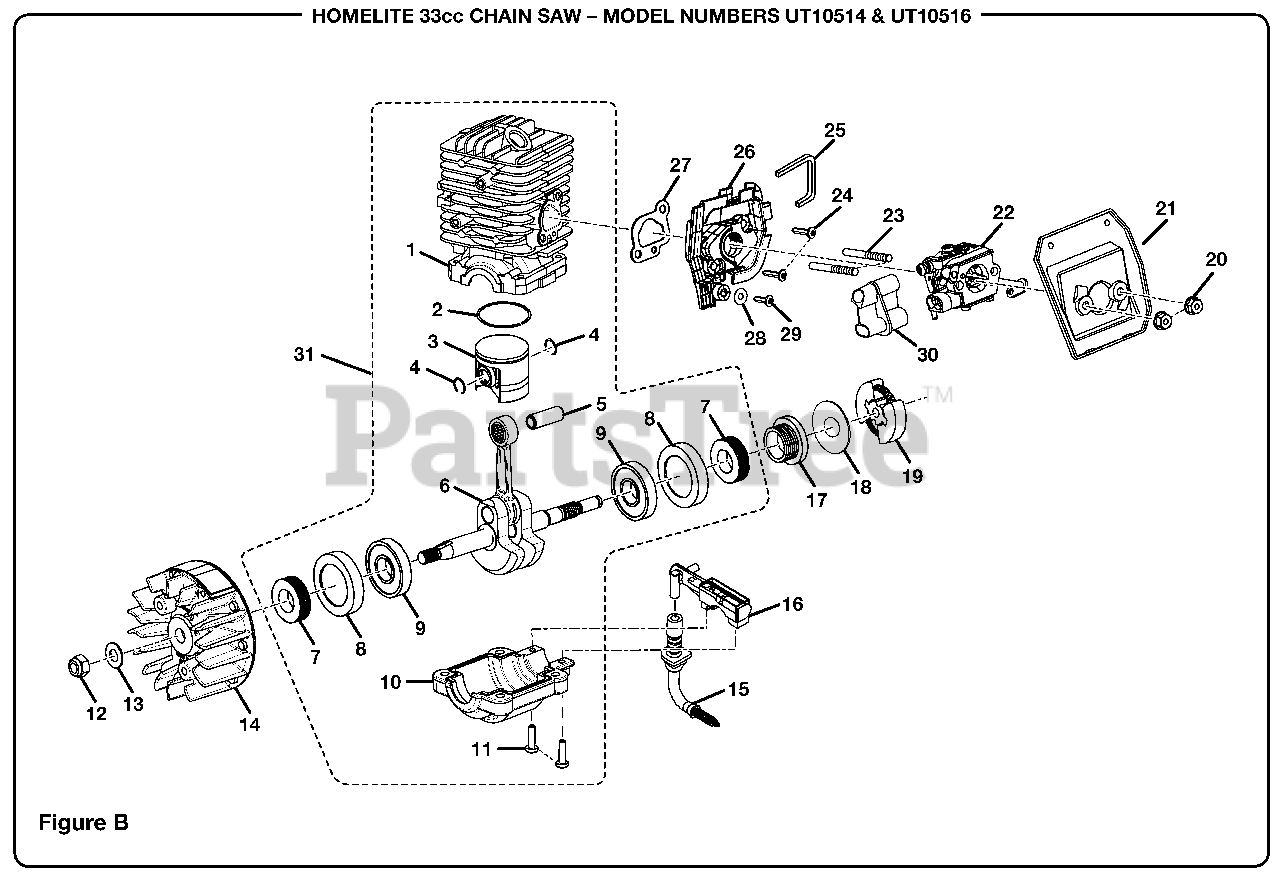

Figure B Parts Diagram

  • Title

1

Homelite 640819015

Cylinder

$60.99

$

Usually ships in 3-7 days

0

2

Homelite 690161005

Piston Ring

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 640995001

Piston

$

$

Not available

4

Homelite 671082001

Retaining Ring
(Superseded to 64813)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 620277001

Piston Pin

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 300943005

Crankshaft Assembly

$

$

Not available

7

Homelite 570220001

Shaft Seal

$

$

Not available

8

Homelite 570221001

Bearing Case

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 671089002

Ball Bearing

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 640818001

Crankcase
(Superseded to 04909)

$

$

Not available

11

Homelite 660627001

Screw

Note: (8-32 x 5/8 in.) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 678123001

Nut

Note: (5/14-24)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 631049001

Flat Washer
(Superseded to PS84065)

$

$

Not available

14

Homelite 300952002

FlywheeL Assembly

$13.99

$

In Stock, only 1 left!

0

15

Homelite 300950001

Oil Intake Tube Assembly
(Superseded to PA01037)

$

$

Not available

16

Homelite 300945001

Oil Pump Assembly
(Superseded to PA01396)

$

$

Not available

17

Homelite 610389001

Left Hand Worm

$

$

Currently unavailable

18

Homelite 631061001

Thrust Washer

$1.49

$

In Stock, only 3 left!

0

19

Homelite 300960003

Clutch Assembly

$

$

Not available

20

Homelite 678033001

Flange Nut
(Superseded to 07589)

Note: (10-24) Purchase locally

$1.49

$

In Stock, only 1 left!

0

21

Homelite 511707001

Air Filter Plate
(Superseded to 04937)

$

$

Not available

22

Homelite 300939002

Carburetor Assembly
(Superseded to A09159A)

$90.99

$

In Stock, only 2 left!

0

23

Homelite 660638001

Screw
(Superseded to 06852)

Note: (10-24 x 2 1/8 in.) Purchase locally

$2.99

$

In Stock, only 1 left!

0

24

Homelite 660616002

Screw

Note: (10-24 x 7/8 in.) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 900850001

Spacer Seal
(Superseded to 06873)

$

$

Not available

26

Homelite 511706001

Carburetor Spacer
(Superseded to 04916)

$

$

Not available

27

Homelite 900842001

Heat Dam Gasket
(Superseded to 06840A)

$

$

Not available

28

Homelite 671072001

Flat Washer
(Superseded to 12789)

$

$

Not available

29

Homelite 660618001

Screw
(Superseded to 82541)

Note: (10-14 x 1/2 in.) Purchase locally

$1.49

$

In Stock, only 3 left!

0

30

Homelite 511705001

Carburetor Grommet
(Superseded to 04907)

$

$

Not available

31

Homelite 309891002

Short Block Assembly

Note: (Inc. Key Nos. 1~11)

$

$

Not available
