UT-10901-B - Homelite 14" Chainsaw, 33cc Starter - Ignition Parts Diagram

14" Chainsaw, 33cc

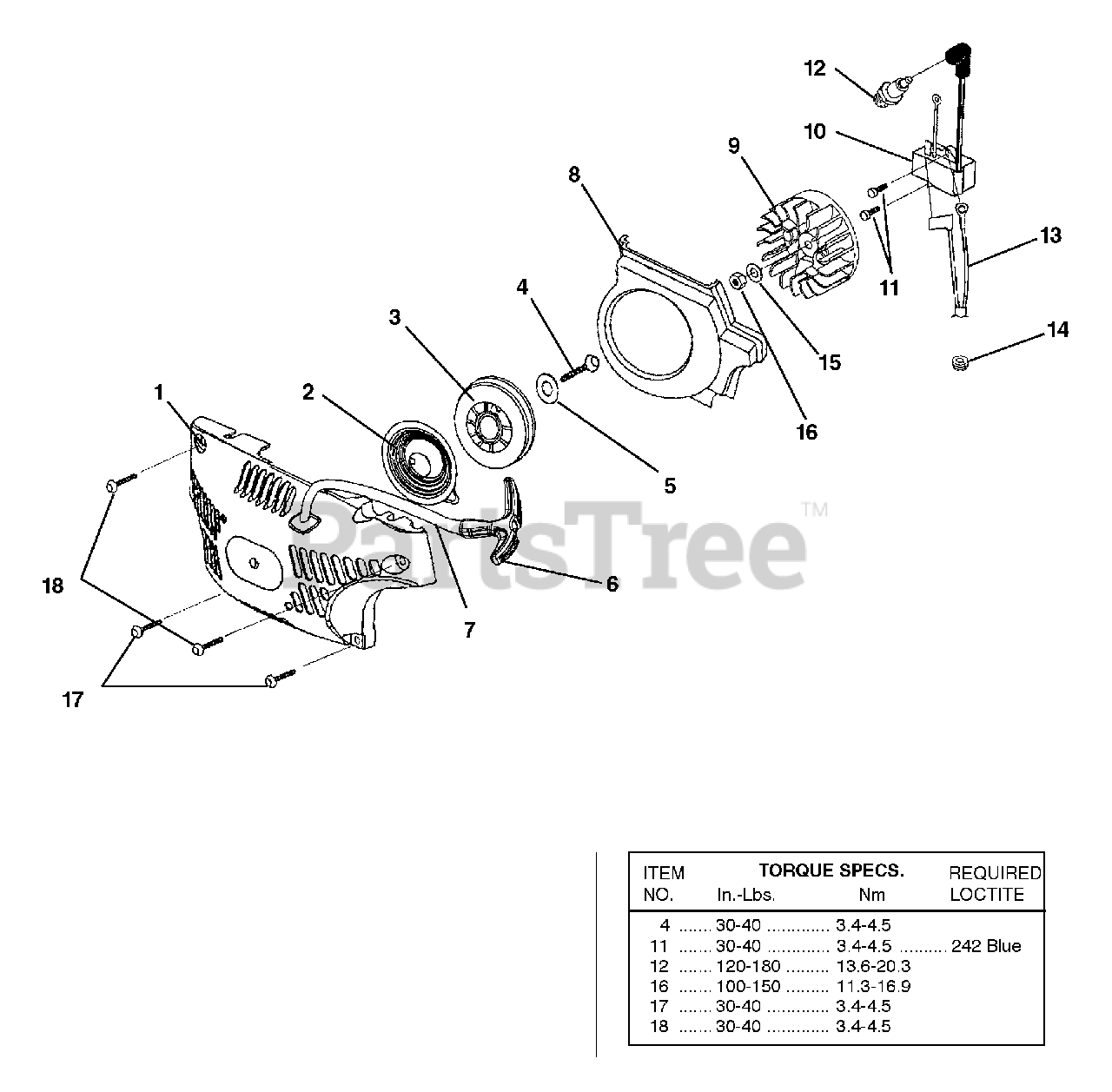

Starter - Ignition Parts Diagram

  • Title

1

Homelite UP06749A

Starter Kit
(Superseded to 300982012)

Note: Includes items 2-7

$

$

Not available

2

Homelite A97908

Spring & Container
(Superseded to 300982011)

$

$

Not available

3

Homelite PS03117

Pulley, Starter

$

$

Not available

4

Homelite 82621

Screw, Thread Form, Plastite (10-14 x 5/8")

$

$

Not available

5

Homelite 94062

Washer, Retaining

$

$

Not available

6

Homelite PS06114

Grip, Starter

$

$

Not available

7

Homelite 9789901

Rope, Starter 46"
(Superseded to 900849001)

$1.49

$

In Stock, only 4 left!

0

8

Homelite 06876

Baffle, Fan Housing

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 986154001

Rotor & Starter Pawl
(Superseded to 300952002)

$13.99

$

In Stock, only 1 left!

0

10

Homelite 984882001

Ignition Kit (33cc models)
(Superseded to 300953003)

Note: Includes item 11

$

$

Not available

11

Homelite 82575

Screw, Thread Form (8-32 x 5/8")
(Superseded to 660639001)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite PS06216

Spark Plug
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

13

Homelite A07602A

Ignition Switch Harness

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 07587

Grommet, Wire Harness (Split)
(Superseded to 570227001)

$1.49

$

In Stock, only 1 left!

0

15

Homelite PS84065

Washer, Flat

$

$

Not available

16

Homelite 985730001

Nut, Jam
(Superseded to 678123001)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 82620

Screw, Truss Hd., Plastite (10-14 x 7/8")

$1.49

$

In Stock, Qty 5

0

18

Homelite 82621

Screw, Truss Hd., Plastite (10-14 x 5/8")

$

$

Not available
